Client-server network replication manager with dedicated network thread. More...

#include <Replicator.hpp>

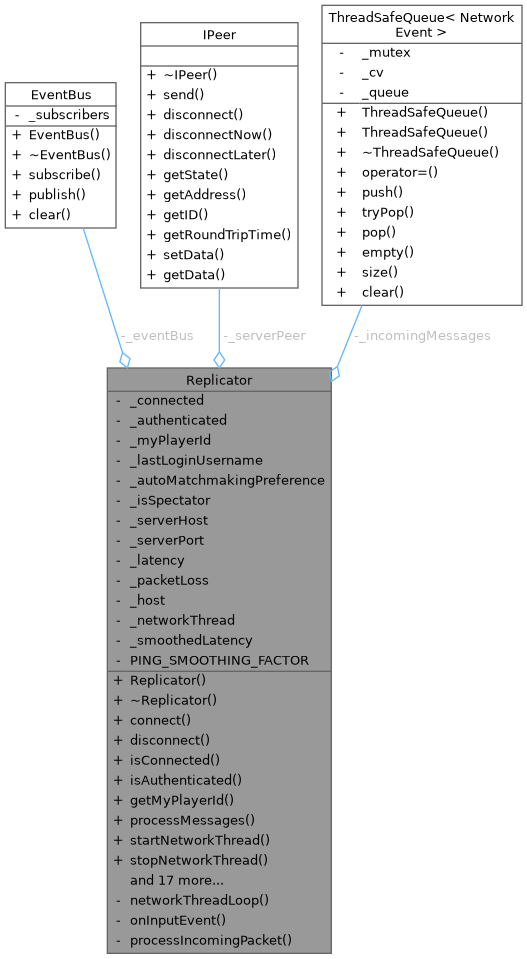

Collaboration diagram for Replicator:

Public Member Functions
	Replicator (EventBus &eventBus, bool isSpectator=false)
	Constructor with EventBus reference.

	~Replicator ()
	Destructor.

bool	connect (const std::string &host, uint16_t port)
	Connect to the game server.

void	disconnect ()
	Disconnect from the server.

bool	isConnected () const
	Check if connected to server.

bool	isAuthenticated () const
	Check if authenticated with server.

uint32_t	getMyPlayerId () const
	Get the player ID assigned by server.

void	processMessages ()
	Process incoming network messages.

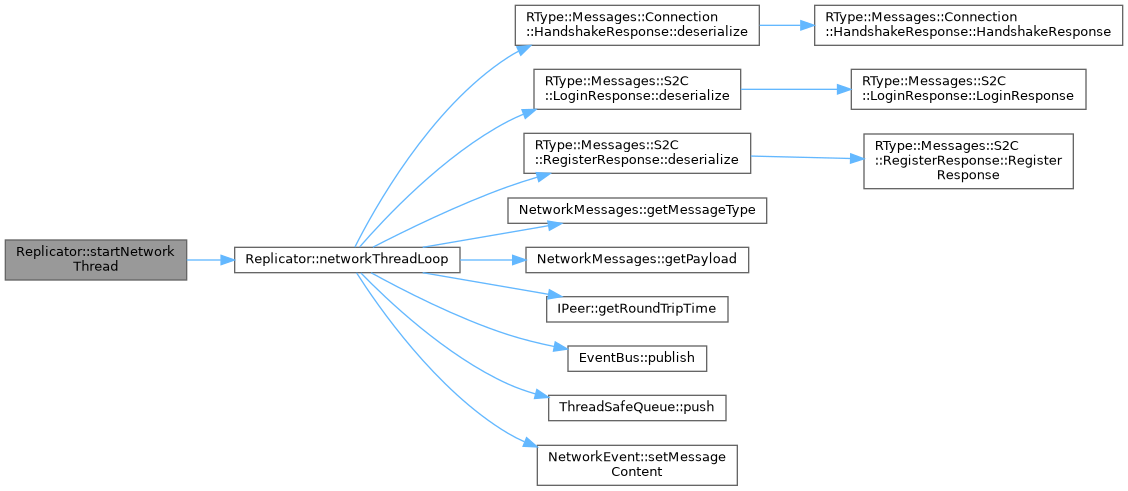

void	startNetworkThread ()
	Start the dedicated network thread.

void	stopNetworkThread ()
	Stop the dedicated network thread.

void	sendPacket (NetworkMessageType type, const std::vector< uint8_t > &data)
	Send a packet to the server.

uint32_t	getLatency () const
	Get current latency in milliseconds.

uint32_t	getPacketLoss () const
	Get packet loss rate as percentage.

bool	isSpectator () const
	Check if in spectator mode.

bool	sendConnectRequest (const std::string &playerName, const std::string &username, const std::string &password)
	Send connect request to server with player name.

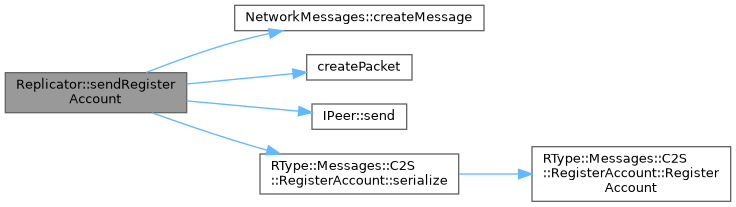

bool	sendRegisterAccount (const std::string &username, const std::string &password)
	Send register account request to server.

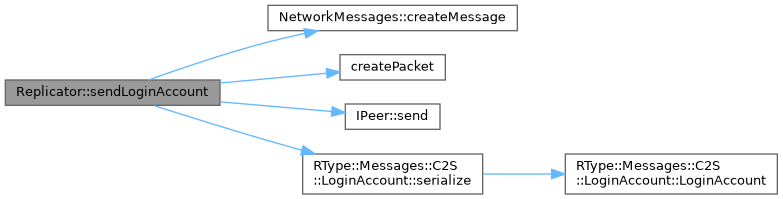

bool	sendLoginAccount (const std::string &username, const std::string &password)
	Send login request to server.

bool	sendListRooms ()
	Send list rooms request to server.

bool	sendCreateRoom (const std::string &roomName, uint32_t maxPlayers, bool isPrivate, float gameSpeedMultiplier=1.0f)
	Send create room request to server.

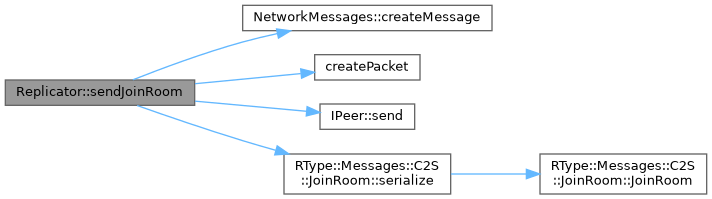

bool	sendJoinRoom (const std::string &roomId)
	Send join room request to server.

bool	sendAutoMatchmaking ()
	Send auto-matchmaking request to server.

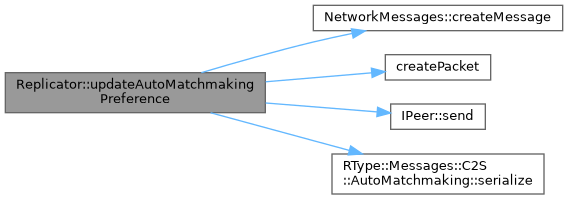

bool	updateAutoMatchmakingPreference (bool enabled)
	Update auto-matchmaking preference on server.

bool	sendStartGame ()
	Send start game request to server.

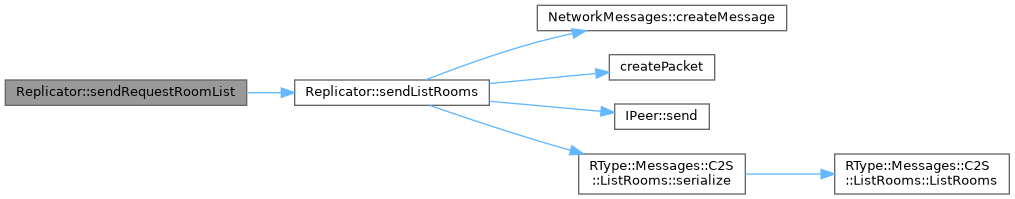

bool	sendRequestRoomList ()
	Request the list of available rooms from server.

bool	sendLeaveRoom ()
	Send request to leave current room.

bool	sendChatMessage (const std::string &message)
	Send chat message to server.

bool	getAutoMatchmakingPreference () const
	Get the user's auto-matchmaking preference from server.

Private Member Functions
void	networkThreadLoop (std::stop_token stopToken)
	Network thread main loop.

void	onInputEvent (const InputEvent &event)
	Handle an incoming packet from the network.

void	processIncomingPacket (const std::vector< uint8_t > &packet)

Private Attributes
EventBus &	_eventBus

std::atomic< bool >	_connected {false}

std::atomic< bool >	_authenticated {false}

std::atomic< uint32_t >	_myPlayerId {0}

std::string	_lastLoginUsername

std::atomic< bool >	_autoMatchmakingPreference {false}

bool	_isSpectator

std::string	_serverHost

uint16_t	_serverPort = 0

std::atomic< uint32_t >	_latency {0}

uint32_t	_packetLoss = 0

std::unique_ptr< IHost >	_host

IPeer *	_serverPeer = nullptr

std::jthread	_networkThread
	Dedicated network thread.

ThreadSafeQueue< NetworkEvent >	_incomingMessages
	Queue for messages from network thread.

std::atomic< float >	_smoothedLatency {0.0f}

Static Private Attributes
static constexpr float	PING_SMOOTHING_FACTOR = 0.3f

Detailed Description

Client-server network replication manager with dedicated network thread.

The Replicator is responsible for:

UDP/TCP communication with the server (dedicated thread)
Sending player inputs to the server
Receiving world state from the server
Measuring latency and packet loss
Publishing network events on the EventBus

Multi-threading architecture:

NETWORK THREAD                    GAME THREAD (ECS)
┌──────────────────┐              ┌──────────────────┐
│ while(running) { │              │ GameLoop {       │
│   service()      │              │   processNetwork │
│   receive packet │──[Queue]────>│   update ECS     │
│   push to queue  │              │   render         │
│ }                │              │ }                │
└──────────────────┘              └──────────────────┘

Communication flow:

CLIENT                          SERVER
  |                               |
  |---[InputEvent]--------------->| (player inputs)
  |                               |
  |<--[WorldState]----------------| (authoritative state)
  |                               |
  |---[PING]--------------------->|
  |<--[PONG]----------------------| (latency measurement)

EventBus integration:

Listens to InputEvent to send them to server
Publishes NetworkEvent when data arrives (from game thread)
Publishes ConnectionEvent on state changes

Definition at line 70 of file Replicator.hpp.

Constructor & Destructor Documentation

◆ Replicator()

Replicator::Replicator	(	EventBus &	eventBus,
		bool	isSpectator = `false`
	)

explicit

Constructor with EventBus reference.

Initializes the Replicator and subscribes to necessary events.

Parameters

eventBus	Event bus for inter-component communication
isSpectator	Whether this client is in spectator mode (read-only)

Note: The Replicator automatically subscribes to InputEvent (unless spectator)

Definition at line 13 of file Replicator.cpp.

◆ ~Replicator()

Replicator::~Replicator ( )

Destructor.

Properly disconnects from server and frees network resources.

Definition at line 15 of file Replicator.cpp.

References disconnect().

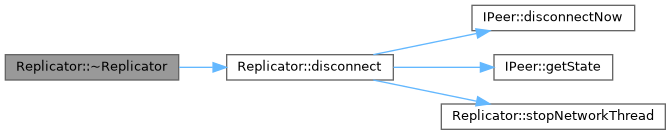

Here is the call graph for this function:

Member Function Documentation

◆ connect()

bool Replicator::connect	(	const std::string &	host,
		uint16_t	port
	)

Connect to the game server.

Establishes a UDP/TCP connection with the specified server. Publishes a ConnectionEvent based on the result.

Parameters

host	Server IP address or hostname
port	Server port (typically 4242)

Returns: true if connection is established, false otherwise

Note: Blocking until timeout (recommended: 5 seconds); Publishes ConnectionEvent::CONNECTED or FAILED

Definition at line 19 of file Replicator.cpp.

References _connected, _host, _serverHost, _serverPeer, _serverPort, createAddress(), and startNetworkThread().

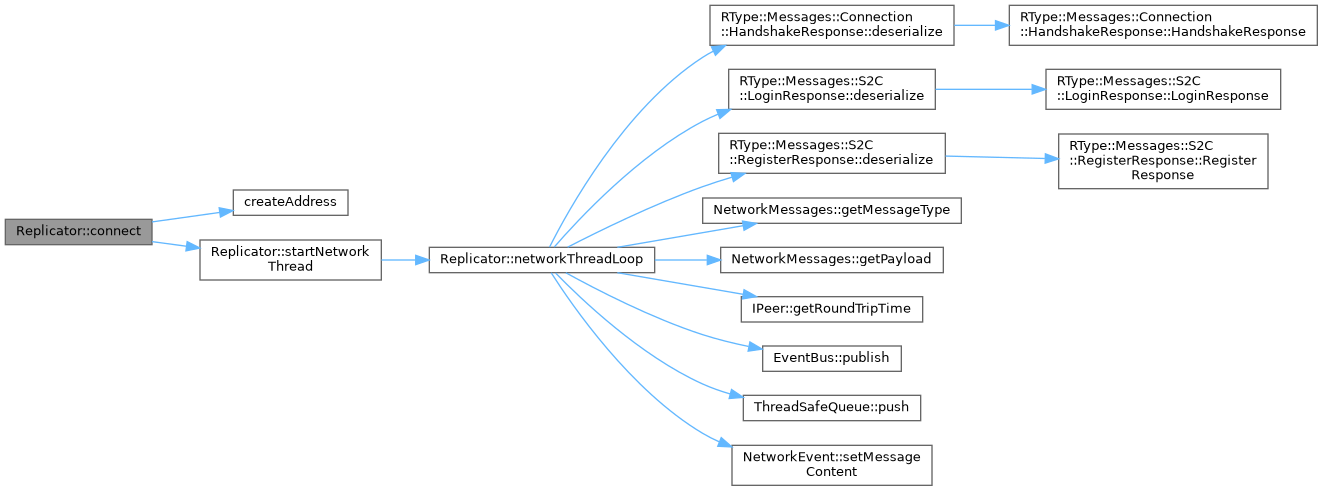

Here is the call graph for this function:

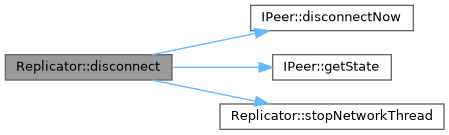

◆ disconnect()

void Replicator::disconnect ( )

Disconnect from the server.

Closes the connection cleanly and cleans up resources. Publishes a ConnectionEvent::DISCONNECTED.

Definition at line 45 of file Replicator.cpp.

References _authenticated, _connected, _serverPeer, CONNECTED, CONNECTING, CONNECTION_SUCCEEDED, IPeer::disconnectNow(), IPeer::getState(), and stopNetworkThread().

Referenced by ~Replicator().

Here is the call graph for this function:

◆ getAutoMatchmakingPreference()

bool Replicator::getAutoMatchmakingPreference ( ) const

inline

Get the user's auto-matchmaking preference from server.

Returns the auto-matchmaking preference loaded from the server after login. This preference is persisted in the user's account on the server.

Returns: true if auto-matchmaking is enabled for this user

Definition at line 326 of file Replicator.hpp.

References _autoMatchmakingPreference.

◆ getLatency()

uint32_t Replicator::getLatency ( ) const

Get current latency in milliseconds.

Calculates average RTT (Round-Trip Time) based on PING/PONG.

Returns: Latency in milliseconds

Note: Updated every 1 second via heartbeat; Rolling average over the last 10 pings

Definition at line 541 of file Replicator.cpp.

References _latency.

Referenced by GameLoop::update().

◆ getMyPlayerId()

uint32_t Replicator::getMyPlayerId ( ) const

inline

Get the player ID assigned by server.

Returns: Player ID (0 if not yet authenticated)

Definition at line 133 of file Replicator.hpp.

References _myPlayerId.

Referenced by GameLoop::run().

◆ getPacketLoss()

uint32_t Replicator::getPacketLoss ( ) const

Get packet loss rate as percentage.

Calculates the ratio of lost packets over the last 100 sent.

Returns: Loss percentage (0-100)

Note: Based on missing ACKs; Real-time update

Definition at line 545 of file Replicator.cpp.

References _packetLoss.

◆ isAuthenticated()

bool Replicator::isAuthenticated ( ) const

Check if authenticated with server.

Returns: true if authentication succeeded, false otherwise

Definition at line 67 of file Replicator.cpp.

References _authenticated.

◆ isConnected()

bool Replicator::isConnected ( ) const

Check if connected to server.

Returns: true if connection is active, false otherwise

Definition at line 63 of file Replicator.cpp.

References _connected.

◆ isSpectator()

bool Replicator::isSpectator ( ) const

Check if in spectator mode.

Returns: true if this client is a spectator (read-only)

Definition at line 549 of file Replicator.cpp.

References _isSpectator.

Referenced by GameLoop::processInput().

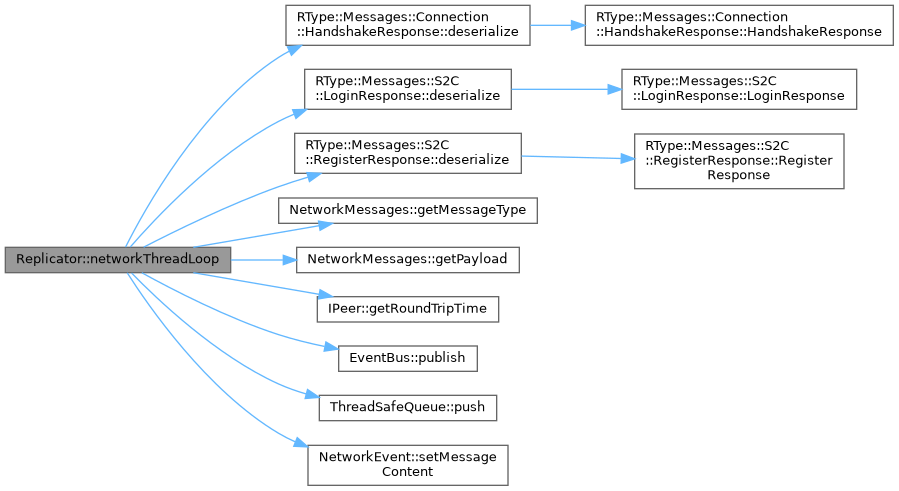

◆ networkThreadLoop()

void Replicator::networkThreadLoop ( std::stop_token stopToken )

private

Network thread main loop.

Continuously polls the network for incoming packets. Runs in a dedicated thread until stop is requested.

Parameters

stopToken Token to check for stop requests

Definition at line 89 of file Replicator.cpp.

References _authenticated, _autoMatchmakingPreference, _connected, _eventBus, _host, _incomingMessages, _lastLoginUsername, _latency, _myPlayerId, _serverPeer, _smoothedLatency, APPLY_AUTO_MATCHMAKING_PREF, AUTH_SUCCESS, CONNECT, RType::Messages::Connection::HandshakeResponse::deserialize(), RType::Messages::S2C::LoginResponse::deserialize(), RType::Messages::S2C::RegisterResponse::deserialize(), DISCONNECT, NetworkMessages::getMessageType(), NetworkMessages::getPayload(), IPeer::getRoundTripTime(), NetworkMessages::HANDSHAKE_RESPONSE, LOG_DEBUG, LOG_ERROR, LOG_INFO, LOG_WARNING, LOGIN_FAILED, NetworkMessages::LOGIN_RESPONSE, PING_SMOOTHING_FACTOR, EventBus::publish(), ThreadSafeQueue< T >::push(), RECEIVE, REGISTER_FAILED, NetworkMessages::REGISTER_RESPONSE, REGISTER_SUCCESS, NetworkMessages::S2C_GAME_START, NetworkMessages::S2C_GAME_STATE, NetworkEvent::setMessageContent(), and WORLD_STATE.

Referenced by startNetworkThread().

Here is the call graph for this function:

◆ onInputEvent()

void Replicator::onInputEvent ( const InputEvent & event )

private

Handle an incoming packet from the network.

Parameters

packet Raw packet data

Decodes the packet and creates a NetworkEvent.

Definition at line 610 of file Replicator.cpp.

◆ processIncomingPacket()

void Replicator::processIncomingPacket ( const std::vector< uint8_t > & packet )

private

Definition at line 615 of file Replicator.cpp.

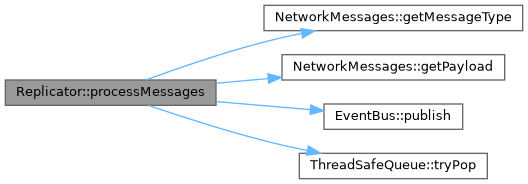

◆ processMessages()

void Replicator::processMessages ( )

Process incoming network messages.

Processes messages from the network thread queue and publishes them on the EventBus. Must be called every frame from the game thread.

Actions performed:

Pop messages from thread-safe queue
Decode message content
Publish NetworkEvent on EventBus

Note: Non-blocking, processes all available messages; Thread-safe: called from game thread, reads from network thread queue

Definition at line 250 of file Replicator.cpp.

References _eventBus, _incomingMessages, NetworkMessages::getMessageType(), NetworkMessages::getPayload(), LOG_DEBUG, LOG_ERROR, LOG_INFO, EventBus::publish(), NetworkMessages::S2C_GAME_START, NetworkMessages::S2C_GAME_STATE, NetworkMessages::S2C_ROOM_LIST, NetworkMessages::S2C_ROOM_STATE, and ThreadSafeQueue< T >::tryPop().

Referenced by GameLoop::run().

Here is the call graph for this function:

◆ sendAutoMatchmaking()

bool Replicator::sendAutoMatchmaking ( )

Send auto-matchmaking request to server.

Automatically joins the first available room or creates a new one.

Returns: true if the packet was sent successfully

Definition at line 472 of file Replicator.cpp.

References _connected, _serverPeer, NetworkMessages::C2S_AUTO_MATCHMAKING, NetworkMessages::createMessage(), createPacket(), LOG_ERROR, LOG_INFO, RELIABLE, IPeer::send(), and RType::Messages::C2S::AutoMatchmaking::serialize().

Referenced by GameLoop::handleUIEvent().

Here is the call graph for this function:

◆ sendChatMessage()

bool Replicator::sendChatMessage ( const std::string & message )

Send chat message to server.

Sends a chat message to be broadcast to other players in the room. Messages starting with "/" are treated as commands.

Parameters

message The message text to send

Returns: true if the packet was sent successfully

Definition at line 579 of file Replicator.cpp.

References _connected, _serverPeer, NetworkMessages::C2S_CHAT_MESSAGE, NetworkMessages::createMessage(), createPacket(), LOG_DEBUG, LOG_ERROR, LOG_INFO, RELIABLE, IPeer::send(), and RType::Messages::C2S::C2SChatMessage::serialize().

Referenced by GameLoop::run().

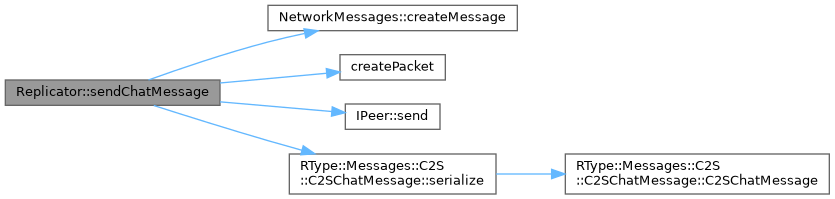

Here is the call graph for this function:

◆ sendConnectRequest()

bool Replicator::sendConnectRequest	(	const std::string &	playerName,
		const std::string &	username,
		const std::string &	password
	)

Send connect request to server with player name.

Parameters

playerName The player's name/pseudo

Returns: true if the packet was sent successfully

Definition at line 339 of file Replicator.cpp.

References _connected, _serverPeer, ConnectionMessages::HandshakeRequestData::clientVersion, NetworkMessages::createMessage(), createPacket(), NetworkMessages::HANDSHAKE_REQUEST, ConnectionMessages::HandshakeRequestData::password, ConnectionMessages::HandshakeRequestData::playerName, RELIABLE, IPeer::send(), ConnectionMessages::HandshakeRequestData::timestamp, and ConnectionMessages::HandshakeRequestData::username.

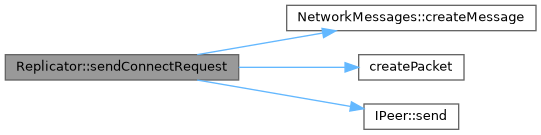

Here is the call graph for this function:

◆ sendCreateRoom()

bool Replicator::sendCreateRoom	(	const std::string &	roomName,
		uint32_t	maxPlayers,
		bool	isPrivate,
		float	gameSpeedMultiplier = `1.0f`
	)

Send create room request to server.

Parameters

roomName	Name of the room to create
maxPlayers	Maximum number of players
isPrivate	Whether the room is private
gameSpeedMultiplier	Game speed multiplier (0.25 to 1.0, default 1.0)

Returns: true if the packet was sent successfully

Definition at line 430 of file Replicator.cpp.

References _connected, _serverPeer, NetworkMessages::C2S_CREATE_ROOM, NetworkMessages::createMessage(), createPacket(), RELIABLE, IPeer::send(), and RType::Messages::C2S::CreateRoom::serialize().

Referenced by GameLoop::handleUIEvent().

Here is the call graph for this function:

◆ sendJoinRoom()

bool Replicator::sendJoinRoom ( const std::string & roomId )

Send join room request to server.

Parameters

roomId ID of the room to join

Returns: true if the packet was sent successfully

Definition at line 450 of file Replicator.cpp.

References _connected, _serverPeer, NetworkMessages::C2S_JOIN_ROOM, NetworkMessages::createMessage(), createPacket(), LOG_ERROR, LOG_INFO, RELIABLE, IPeer::send(), and RType::Messages::C2S::JoinRoom::serialize().

Referenced by GameLoop::handleUIEvent().

Here is the call graph for this function:

◆ sendLeaveRoom()

bool Replicator::sendLeaveRoom ( )

Send request to leave current room.

Returns: true if the packet was sent successfully

Definition at line 558 of file Replicator.cpp.

References _connected, _serverPeer, NetworkMessages::C2S_LEAVE_ROOM, NetworkMessages::createMessage(), createPacket(), LOG_INFO, RELIABLE, IPeer::send(), and RType::Messages::C2S::LeaveRoom::serialize().

Referenced by GameLoop::handleUIEvent().

Here is the call graph for this function:

◆ sendListRooms()

bool Replicator::sendListRooms ( )

Send list rooms request to server.

Returns: true if the packet was sent successfully

Definition at line 411 of file Replicator.cpp.

References _connected, _serverPeer, NetworkMessages::C2S_LIST_ROOMS, NetworkMessages::createMessage(), createPacket(), RELIABLE, IPeer::send(), and RType::Messages::C2S::ListRooms::serialize().

Referenced by sendRequestRoomList().

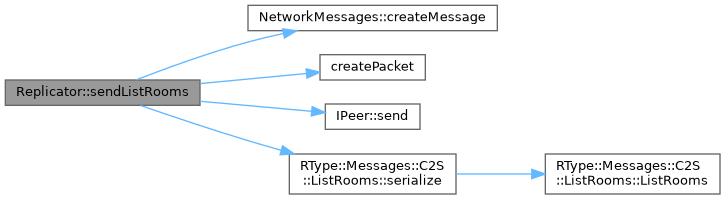

Here is the call graph for this function:

◆ sendLoginAccount()

bool Replicator::sendLoginAccount	(	const std::string &	username,
		const std::string &	password
	)

Send login request to server.

Parameters

username	Account username
password	Account password

Returns: true if the packet was sent successfully

Definition at line 388 of file Replicator.cpp.

References _connected, _lastLoginUsername, _serverPeer, NetworkMessages::createMessage(), createPacket(), LOG_ERROR, NetworkMessages::LOGIN_REQUEST, RELIABLE, IPeer::send(), and RType::Messages::C2S::LoginAccount::serialize().

Referenced by GameLoop::handleUIEvent().

Here is the call graph for this function:

◆ sendPacket()

void Replicator::sendPacket	(	NetworkMessageType	type,
		const std::vector< uint8_t > &	data
	)

Send a packet to the server.

Serializes and sends a message to the server asynchronously.

Parameters

type	Message type (PLAYER_INPUT, PING, etc.)
data	Packet data (serialized)

Note: Non-blocking; Automatically adds a timestamp for latency measurement

Definition at line 329 of file Replicator.cpp.

References _connected, _serverPeer, createPacket(), RELIABLE, and IPeer::send().

Referenced by GameLoop::processInput().

Here is the call graph for this function:

◆ sendRegisterAccount()

bool Replicator::sendRegisterAccount	(	const std::string &	username,
		const std::string &	password
	)

Send register account request to server.

Parameters

username	Username for new account
password	Password for new account

Returns: true if the packet was sent successfully

Definition at line 367 of file Replicator.cpp.

References _connected, _serverPeer, NetworkMessages::createMessage(), createPacket(), LOG_ERROR, NetworkMessages::REGISTER_REQUEST, RELIABLE, IPeer::send(), and RType::Messages::C2S::RegisterAccount::serialize().

Referenced by GameLoop::handleUIEvent().

Here is the call graph for this function:

◆ sendRequestRoomList()

bool Replicator::sendRequestRoomList ( )

Request the list of available rooms from server.

Returns: true if the packet was sent successfully

Definition at line 553 of file Replicator.cpp.

References LOG_INFO, and sendListRooms().

Referenced by GameLoop::handleUIEvent().

Here is the call graph for this function:

◆ sendStartGame()

bool Replicator::sendStartGame ( )

Send start game request to server.

Only the host of the room can start the game.

Returns: true if the packet was sent successfully

Definition at line 519 of file Replicator.cpp.

References _connected, _serverPeer, NetworkMessages::C2S_START_GAME, NetworkMessages::createMessage(), createPacket(), LOG_ERROR, LOG_INFO, RELIABLE, IPeer::send(), and RType::Messages::C2S::StartGame::serialize().

Referenced by GameLoop::handleUIEvent().

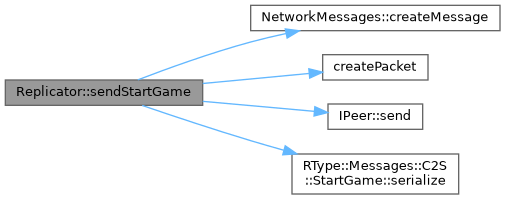

Here is the call graph for this function:

◆ startNetworkThread()

void Replicator::startNetworkThread ( )

Start the dedicated network thread.

Launches a background thread that continuously polls the network for incoming packets and pushes them to the message queue.

Note: Automatically called by connect(); Thread runs until disconnect() is called

Definition at line 71 of file Replicator.cpp.

References _networkThread, and networkThreadLoop().

Referenced by connect().

Here is the call graph for this function:

◆ stopNetworkThread()

void Replicator::stopNetworkThread ( )

Stop the dedicated network thread.

Signals the network thread to stop and waits for it to join.

Note: Automatically called by disconnect()

Definition at line 81 of file Replicator.cpp.

References _networkThread.

Referenced by disconnect().

◆ updateAutoMatchmakingPreference()

bool Replicator::updateAutoMatchmakingPreference ( bool enabled )

Update auto-matchmaking preference on server.

Sends the user's auto-matchmaking preference to be saved on the server. Does not trigger immediate matchmaking.

Parameters

enabled Whether auto-matchmaking should be enabled

Returns: true if the packet was sent successfully

Definition at line 495 of file Replicator.cpp.

References _connected, _serverPeer, NetworkMessages::C2S_UPDATE_AUTO_MM_PREF, NetworkMessages::createMessage(), createPacket(), LOG_ERROR, LOG_INFO, RELIABLE, IPeer::send(), and RType::Messages::C2S::AutoMatchmaking::serialize().

Referenced by GameLoop::handleUIEvent().

Here is the call graph for this function:

Member Data Documentation

◆ _authenticated

std::atomic<bool> Replicator::_authenticated {false}

private

Definition at line 350 of file Replicator.hpp.

Referenced by disconnect(), isAuthenticated(), and networkThreadLoop().

◆ _autoMatchmakingPreference

std::atomic<bool> Replicator::_autoMatchmakingPreference {false}

private

Definition at line 353 of file Replicator.hpp.

Referenced by getAutoMatchmakingPreference(), and networkThreadLoop().

◆ _connected

std::atomic<bool> Replicator::_connected {false}

private

Definition at line 349 of file Replicator.hpp.

Referenced by connect(), disconnect(), isConnected(), networkThreadLoop(), sendAutoMatchmaking(), sendChatMessage(), sendConnectRequest(), sendCreateRoom(), sendJoinRoom(), sendLeaveRoom(), sendListRooms(), sendLoginAccount(), sendPacket(), sendRegisterAccount(), sendStartGame(), and updateAutoMatchmakingPreference().

◆ _eventBus

EventBus& Replicator::_eventBus

private

Definition at line 348 of file Replicator.hpp.

Referenced by networkThreadLoop(), and processMessages().

◆ _host

std::unique_ptr<IHost> Replicator::_host

private

Definition at line 361 of file Replicator.hpp.

Referenced by connect(), and networkThreadLoop().

◆ _incomingMessages

ThreadSafeQueue<NetworkEvent> Replicator::_incomingMessages

private

Queue for messages from network thread.

Definition at line 366 of file Replicator.hpp.

Referenced by networkThreadLoop(), and processMessages().

◆ _isSpectator

bool Replicator::_isSpectator

private

Definition at line 354 of file Replicator.hpp.

Referenced by isSpectator().

◆ _lastLoginUsername

std::string Replicator::_lastLoginUsername

private

Definition at line 352 of file Replicator.hpp.

Referenced by networkThreadLoop(), and sendLoginAccount().

◆ _latency

std::atomic<uint32_t> Replicator::_latency {0}

private

Definition at line 358 of file Replicator.hpp.

Referenced by getLatency(), and networkThreadLoop().

◆ _myPlayerId

std::atomic<uint32_t> Replicator::_myPlayerId {0}

private

Definition at line 351 of file Replicator.hpp.

Referenced by getMyPlayerId(), and networkThreadLoop().

◆ _networkThread

std::jthread Replicator::_networkThread

private

Dedicated network thread.

Definition at line 365 of file Replicator.hpp.

Referenced by startNetworkThread(), and stopNetworkThread().

◆ _packetLoss

uint32_t Replicator::_packetLoss = 0

private

Definition at line 359 of file Replicator.hpp.

Referenced by getPacketLoss().

◆ _serverHost

std::string Replicator::_serverHost

private

Definition at line 355 of file Replicator.hpp.

Referenced by connect().

◆ _serverPeer

IPeer* Replicator::_serverPeer = nullptr

private

Definition at line 362 of file Replicator.hpp.

Referenced by connect(), disconnect(), networkThreadLoop(), sendAutoMatchmaking(), sendChatMessage(), sendConnectRequest(), sendCreateRoom(), sendJoinRoom(), sendLeaveRoom(), sendListRooms(), sendLoginAccount(), sendPacket(), sendRegisterAccount(), sendStartGame(), and updateAutoMatchmakingPreference().

◆ _serverPort

uint16_t Replicator::_serverPort = 0

private

Definition at line 356 of file Replicator.hpp.

Referenced by connect().

◆ _smoothedLatency

std::atomic<float> Replicator::_smoothedLatency {0.0f}

private

Definition at line 370 of file Replicator.hpp.

Referenced by networkThreadLoop().

◆ PING_SMOOTHING_FACTOR

constexpr float Replicator::PING_SMOOTHING_FACTOR = 0.3f

staticconstexprprivate

Definition at line 369 of file Replicator.hpp.

Referenced by networkThreadLoop().

The documentation for this class was generated from the following files:

client/Network/Replicator.hpp
client/Network/Replicator.cpp

Public Member Functions

Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ Replicator()

◆ ~Replicator()

Member Function Documentation

◆ connect()

◆ disconnect()

◆ getAutoMatchmakingPreference()

◆ getLatency()

◆ getMyPlayerId()

◆ getPacketLoss()

◆ isAuthenticated()

◆ isConnected()

◆ isSpectator()

◆ networkThreadLoop()

◆ onInputEvent()

◆ processIncomingPacket()

◆ processMessages()

◆ sendAutoMatchmaking()

◆ sendChatMessage()

◆ sendConnectRequest()

◆ sendCreateRoom()

◆ sendJoinRoom()

◆ sendLeaveRoom()

◆ sendListRooms()

◆ sendLoginAccount()

◆ sendPacket()

◆ sendRegisterAccount()

◆ sendRequestRoomList()

◆ sendStartGame()

◆ startNetworkThread()

◆ stopNetworkThread()

◆ updateAutoMatchmakingPreference()

Member Data Documentation

◆ _authenticated

◆ _autoMatchmakingPreference

◆ _connected

◆ _eventBus

◆ _host

◆ _incomingMessages

◆ _isSpectator

◆ _lastLoginUsername

◆ _latency

◆ _myPlayerId

◆ _networkThread

◆ _packetLoss

◆ _serverHost

◆ _serverPeer

◆ _serverPort

◆ _smoothedLatency

◆ PING_SMOOTHING_FACTOR
