IPeer Class Reference

Interface representing a remote peer in the network. More...

#include <IPeer.hpp>

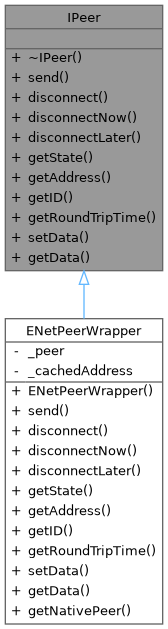

Inheritance diagram for IPeer:

Collaboration diagram for IPeer:

Public Member Functions
virtual	~IPeer ()=default
virtual bool	send (std::unique_ptr< IPacket > packet, uint8_t channelID=0)=0
	Send a packet to this peer.
virtual void	disconnect (uint32_t data=0)=0
	Disconnect from this peer.
virtual void	disconnectNow (uint32_t data=0)=0
	Force an immediate disconnect from this peer.
virtual void	disconnectLater (uint32_t data=0)=0
	Disconnect from this peer after all queued packets are sent.
virtual PeerState	getState () const =0
	Get the current state of this peer.
virtual const IAddress &	getAddress () const =0
	Get the address of this peer.
virtual uint32_t	getID () const =0
	Get a unique identifier for this peer.
virtual uint32_t	getRoundTripTime () const =0
	Get the round-trip time (ping) to this peer.
virtual void	setData (void *data)=0
	Set application-specific data associated with this peer.
virtual void *	getData () const =0
	Get application-specific data associated with this peer.

Detailed Description

Interface representing a remote peer in the network.

IPeer represents a connection to another endpoint (client or server). The concrete implementation (ENetPeer, custom connection, etc.) is hidden behind this interface to maintain backend independence.

Definition at line 40 of file IPeer.hpp.

Constructor & Destructor Documentation

~IPeer()

virtual IPeer::~IPeer ( )

virtualdefault

Member Function Documentation

disconnect()

virtual void IPeer::disconnect ( uint32_t  data = 0 )

pure virtual

Disconnect from this peer.

Parameters

data	Optional user data to send with the disconnect notification.

Implemented in ENetPeerWrapper.

disconnectLater()

virtual void IPeer::disconnectLater ( uint32_t  data = 0 )

pure virtual

Disconnect from this peer after all queued packets are sent.

Parameters

data	Optional user data to send with the disconnect notification.

Implemented in ENetPeerWrapper.

disconnectNow()

virtual void IPeer::disconnectNow ( uint32_t  data = 0 )

pure virtual

Force an immediate disconnect from this peer.

Parameters

data	Optional user data to send with the disconnect notification.

Implemented in ENetPeerWrapper.

Referenced by Replicator::disconnect().

getAddress()

virtual const IAddress & IPeer::getAddress ( ) const

pure virtual

Get the address of this peer.

Returns

Reference to the peer's address.

Implemented in ENetPeerWrapper.

getData()

virtual void * IPeer::getData ( ) const

pure virtual

Get application-specific data associated with this peer.

Returns

Pointer to user data.

Implemented in ENetPeerWrapper.

getID()

virtual uint32_t IPeer::getID ( ) const

pure virtual

Get a unique identifier for this peer.

Returns

Peer ID or connection index.

Implemented in ENetPeerWrapper.

getRoundTripTime()

virtual uint32_t IPeer::getRoundTripTime ( ) const

pure virtual

Get the round-trip time (ping) to this peer.

Returns

RTT in milliseconds.

Implemented in ENetPeerWrapper.

Referenced by Replicator::networkThreadLoop().

getState()

virtual PeerState IPeer::getState ( ) const

pure virtual

Get the current state of this peer.

Returns

The peer's state.

Implemented in ENetPeerWrapper.

Referenced by Replicator::disconnect().

send()

virtual bool IPeer::send ( std::unique_ptr< IPacket >  packet, uint8_t  channelID = 0  )

pure virtual

Send a packet to this peer.

Parameters

packet	The packet to send.
channelID	The channel ID to send the packet on.

Returns

True if the packet was queued successfully, false otherwise.

Implemented in ENetPeerWrapper.

Referenced by Server::_sendPacket(), Replicator::sendAutoMatchmaking(), Replicator::sendChatMessage(), Replicator::sendConnectRequest(), Replicator::sendCreateRoom(), server::GameruleBroadcaster::sendGamerulePacket(), Replicator::sendJoinRoom(), Replicator::sendLeaveRoom(), Replicator::sendListRooms(), Replicator::sendLoginAccount(), Replicator::sendPacket(), Replicator::sendRegisterAccount(), Replicator::sendStartGame(), and Replicator::updateAutoMatchmakingPreference().

setData()

virtual void IPeer::setData ( void *  data )

pure virtual

Set application-specific data associated with this peer.

Parameters

data	Pointer to user data.

Implemented in ENetPeerWrapper.

---

The documentation for this class was generated from the following file:

• common/Networking/IPeer.hpp
