Network protocol with unified message format. More...

Enumerations
enum class	MessageType : uint16_t { HANDSHAKE_REQUEST = 0x0001 , HANDSHAKE_RESPONSE = 0x0002 , REGISTER_REQUEST = 0x0007 , REGISTER_RESPONSE = 0x0008 , LOGIN_REQUEST = 0x0009 , LOGIN_RESPONSE = 0x000A , DISCONNECT = 0x0003 , KICK = 0x0004 , PING = 0x0005 , PONG = 0x0006 , C2S_PLAYER_INPUT = 0x0100 , C2S_JOIN_GAME = 0x0101 , C2S_LIST_ROOMS = 0x0300 , C2S_CREATE_ROOM = 0x0301 , C2S_JOIN_ROOM = 0x0302 , C2S_LEAVE_ROOM = 0x0306 , C2S_AUTO_MATCHMAKING = 0x0308 , C2S_UPDATE_AUTO_MM_PREF = 0x0309 , C2S_START_MATCHMAKING = 0x0303 , C2S_CANCEL_MATCHMAKING = 0x0304 , C2S_START_GAME = 0x0305 , C2S_CHAT_MESSAGE = 0x0307 , S2C_GAME_STATE = 0x0200 , S2C_GAME_START = 0x0201 , S2C_ENTITY_DESTROYED = 0x0202 , S2C_GAME_OVER = 0x0203 , S2C_GAMERULE_UPDATE = 0x0204 , S2C_ROOM_LIST = 0x0400 , S2C_ROOM_CREATED = 0x0401 , S2C_JOINED_ROOM = 0x0402 , S2C_MATCHMAKING_STARTED = 0x0403 , S2C_MATCH_FOUND = 0x0404 , S2C_ROOM_STATE = 0x0405 , S2C_CHAT_MESSAGE = 0x0406 , S2C_LEFT_ROOM = 0x0407 , UNKNOWN = 0xFFFF }
	All message types in the R-Type protocol. More...

Functions
std::vector< uint8_t >	createMessage (MessageType type, const std::vector< uint8_t > &payload)
	Create a message with type and payload.

MessageType	getMessageType (const std::vector< uint8_t > &packet)
	Get message type from packet.

std::vector< uint8_t >	getPayload (const std::vector< uint8_t > &packet)
	Get payload from packet (without header)

std::vector< uint8_t >	serializeString (const std::string &str)
	Serialize a string to bytes.

std::string	deserializeString (const std::vector< uint8_t > &bytes, size_t &offset)
	Deserialize bytes to string.

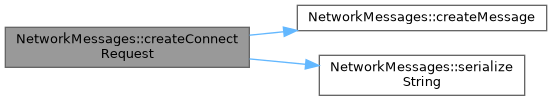

std::vector< uint8_t >	createConnectRequest (const std::string &playerName, bool isSpectator=false)
	Create HANDSHAKE_REQUEST message.

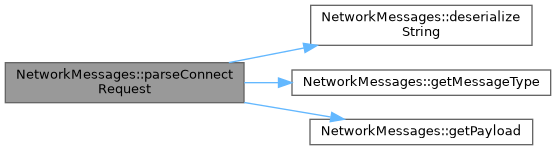

std::string	parseConnectRequest (const std::vector< uint8_t > &packet, bool &isSpectator)
	Parse HANDSHAKE_REQUEST message.

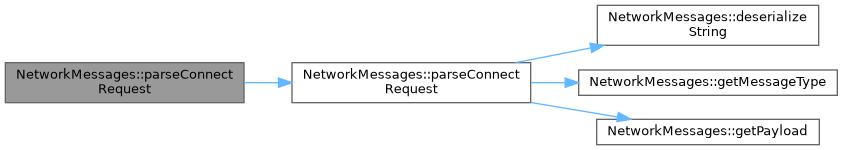

std::string	parseConnectRequest (const std::vector< uint8_t > &packet)
	Parse HANDSHAKE_REQUEST message (legacy - without spectator flag)

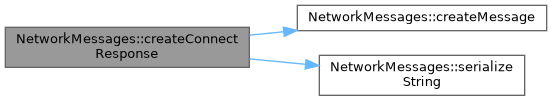

std::vector< uint8_t >	createConnectResponse (const std::string &message)
	Create HANDSHAKE_RESPONSE message.

std::string	parseConnectResponse (const std::vector< uint8_t > &packet)
	Parse HANDSHAKE_RESPONSE message.

Detailed Description

Network protocol with unified message format.

Protocol format: [2 bytes: MessageType][4 bytes: payload_length][N bytes: payload]

This is modular, secure, and scalable:

Type checking: Every message has a type identifier
Validation: Size checks prevent buffer overflows
Extensible: Add new message types without changing the protocol

Example: auto packet = createMessage(MessageType::CONNECT_REQUEST, playerName); auto type = getMessageType(packet); auto payload = getPayload(packet);

Enumeration Type Documentation

◆ MessageType

enum class NetworkMessages::MessageType : uint16_t

strong

All message types in the R-Type protocol.

Add new types here as you need them. Each type is 2 bytes (uint16_t).

Message type mapping to Cap'n Proto wrappers:

HANDSHAKE_REQUEST -> RType::Messages::Connection::HandshakeRequest
HANDSHAKE_RESPONSE -> RType::Messages::Connection::HandshakeResponse
PING -> RType::Messages::Connection::PingMessage
PONG -> RType::Messages::Connection::PongMessage
C2S_PLAYER_INPUT -> RType::Messages::C2S::PlayerInput
C2S_JOIN_GAME -> RType::Messages::C2S::JoinGame
S2C_GAME_STATE -> RType::Messages::S2C::GameState
S2C_GAME_START -> RType::Messages::S2C::GameStart
S2C_ENTITY_DESTROYED -> RType::Messages::S2C::EntityDestroyed
S2C_GAME_OVER -> RType::Messages::S2C::GameOver
S2C_GAMERULE_UPDATE -> RType::Messages::S2C::GamerulePacket

Enumerator
HANDSHAKE_REQUEST
HANDSHAKE_RESPONSE
REGISTER_REQUEST
REGISTER_RESPONSE
LOGIN_REQUEST
LOGIN_RESPONSE
DISCONNECT
KICK
PING
PONG
C2S_PLAYER_INPUT
C2S_JOIN_GAME
C2S_LIST_ROOMS
C2S_CREATE_ROOM
C2S_JOIN_ROOM
C2S_LEAVE_ROOM
C2S_AUTO_MATCHMAKING
C2S_UPDATE_AUTO_MM_PREF
C2S_START_MATCHMAKING
C2S_CANCEL_MATCHMAKING
C2S_START_GAME
C2S_CHAT_MESSAGE
S2C_GAME_STATE
S2C_GAME_START
S2C_ENTITY_DESTROYED
S2C_GAME_OVER
S2C_GAMERULE_UPDATE
S2C_ROOM_LIST
S2C_ROOM_CREATED
S2C_JOINED_ROOM
S2C_MATCHMAKING_STARTED
S2C_MATCH_FOUND
S2C_ROOM_STATE
S2C_CHAT_MESSAGE
S2C_LEFT_ROOM
UNKNOWN
