Graphical rendering system using Raylib. More...

#include <Rendering.hpp>

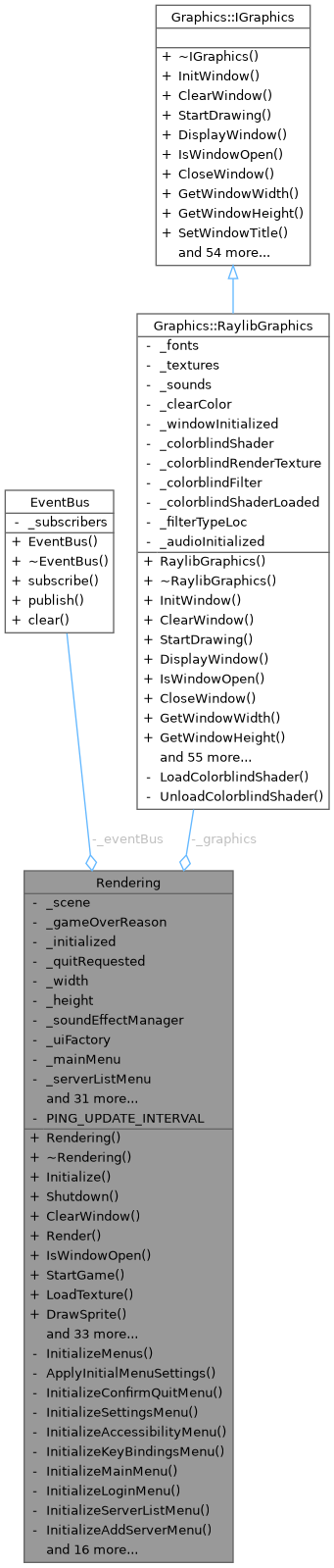

Collaboration diagram for Rendering:

Public Member Functions
	Rendering (EventBus &eventBus)
	Constructor with EventBus reference.

	~Rendering ()
	Destructor.

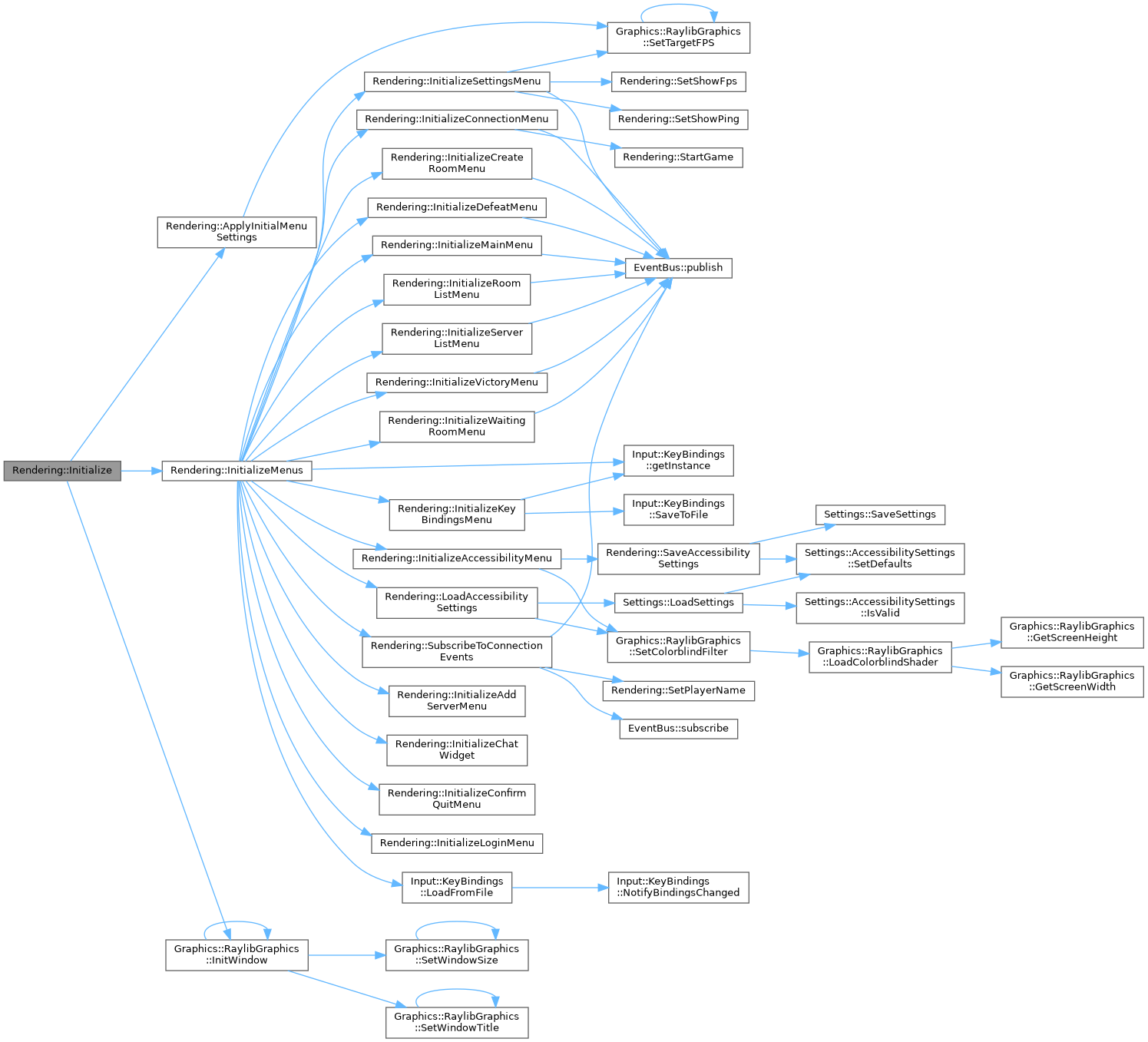

bool	Initialize (uint32_t width, uint32_t height, const std::string &title)
	Initialize the rendering system and create window.

void	Shutdown ()
	Stop the rendering system and destroy window.

void	ClearWindow ()
	Clears the window before rendering its content.

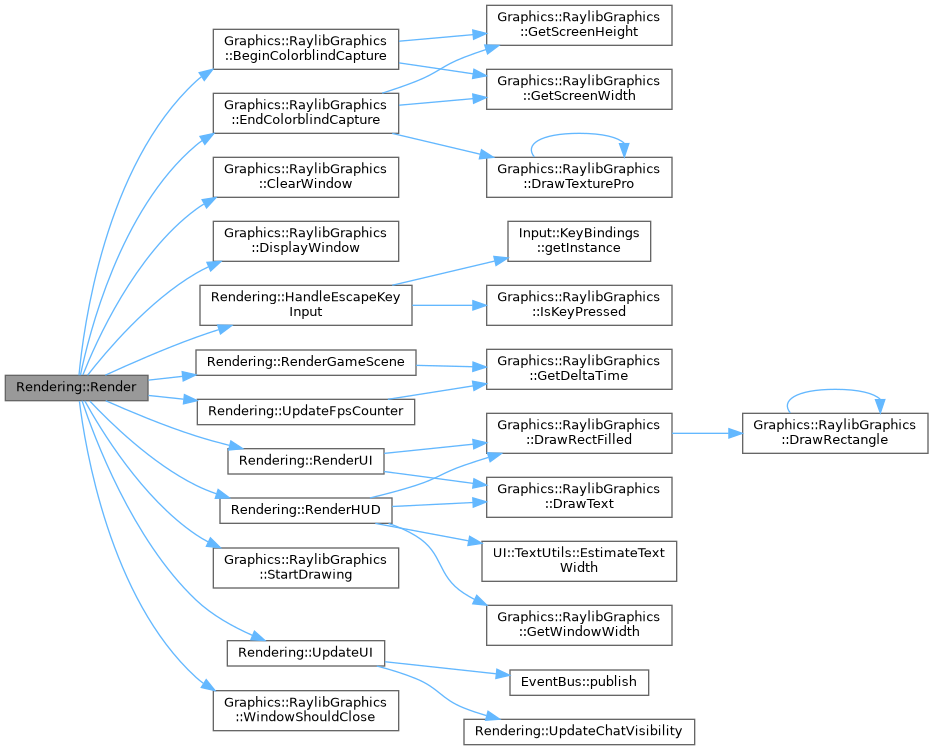

void	Render ()
	Perform rendering of current frame.

bool	IsWindowOpen () const
	Check if window is open.

void	StartGame ()
	Switch immediately to the game scene.

bool	LoadTexture (const std::string &textureName, const std::string &path)
	Load a texture from file.

void	DrawSprite (const std::string &textureId, float xPosition, float yPosition, float rotation=0.0, float scale=1.0)
	Draw a sprite on screen.

void	DrawText (const std::string &text, float xPosition, float yPosition, uint32_t size=24)
	Draw text on screen.

uint32_t	GetWidth () const
	Get window width.

uint32_t	GetHeight () const
	Get window height.

bool	WindowShouldClose () const

void	UpdateEntity (uint32_t id, RType::Messages::Shared::EntityType type, float x, float y, int health, const std::string &currentAnimation, int srcX, int srcY, int srcW, int srcH)
	Update or create an entity for rendering with animation.

void	RemoveEntity (uint32_t id)
	Remove an entity from rendering.

void	SetMyEntityId (uint32_t id)
	Set the local player's entity ID.

void	ClearAllEntities ()
	Clear all entities from the rendering cache.

void	SetBackground (const std::string &mainBackground, const std::string &parallaxBackground, float scrollSpeed, float parallaxSpeedFactor)
	Set up background layers for parallax scrolling.

void	ClearBackground ()
	Clear background configuration.

void	UpdateBackground (float deltaTime)
	Update background scroll positions.

void	ShowGameOver (const std::string &reason)
	Display the game over screen.

bool	IsKeyDown (int key) const
	Check if a key is currently being held down.

bool	IsGamepadAvailable (int gamepad) const
	Check if a gamepad is available/connected.

bool	IsGamepadButtonDown (int gamepad, int button) const
	Check if a gamepad button is currently held down.

void	UpdateInterpolation (float deltaTime)
	Update interpolation for all entities.

void	UpdatePingTimer (float deltaTime)
	Update ping display timer (called every frame)

void	MoveEntityLocally (uint32_t entityId, float deltaX, float deltaY)
	Move an entity locally (client-side prediction)

void	UpdateRoomList (const std::vector< RoomData > &rooms)
	Update room list from server data.

void	UpdateWaitingRoom (const std::vector< Game::PlayerInfo > &players, const std::string &roomName, bool isHost, bool isSpectator=false)
	Update waiting room with player list.

void	AddChatMessage (uint32_t playerId, const std::string &playerName, const std::string &message, uint64_t timestamp)
	Add a chat message to the chat widget.

void	SetOnChatMessageSent (std::function< void(const std::string &)> callback)
	Set callback for when a chat message is sent.

void	UpdateChatVisibility ()
	Update chat widget visibility based on current scene.

void	SetClientSidePredictionEnabled (bool enabled)
	Enable or disable client-side prediction for local player.

void	SetReconciliationThreshold (float threshold)
	Set the reconciliation threshold for client-side prediction.

float	GetReconciliationThreshold () const
	Get the current reconciliation threshold.

void	SetLocalPlayerMoving (bool moving)
	Set whether the local player is currently moving.

void	SetPing (uint32_t pingMs)
	Set the current ping value for display.

void	SetShowPing (bool enabled)
	Enable/disable ping display.

bool	GetShowPing () const
	Get ping display state.

void	SetShowFps (bool enabled)
	Enable/disable FPS display.

bool	GetShowFps () const
	Get FPS display state.

void	SetPlayerName (const std::string &name)
	Update the displayed player name (e.g., after authentication)

Private Types
enum class	Scene { MENU , IN_GAME , GAME_OVER }

Private Member Functions

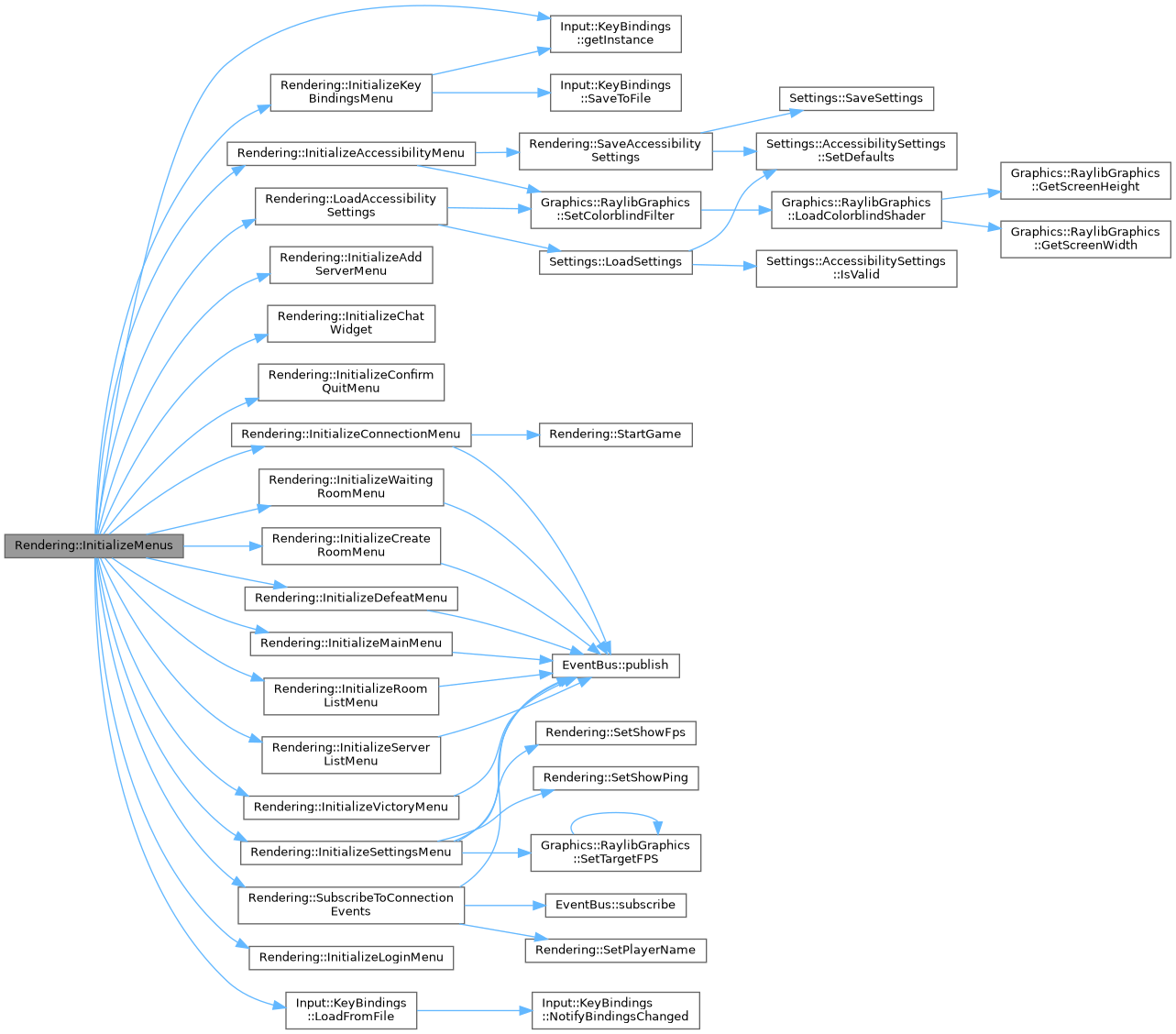

void	InitializeMenus ()
	Initialize UI factory, menus and all related callbacks.

void	ApplyInitialMenuSettings ()
	Apply runtime settings affecting rendering (target FPS, HUD visibility...).

void	InitializeConfirmQuitMenu ()

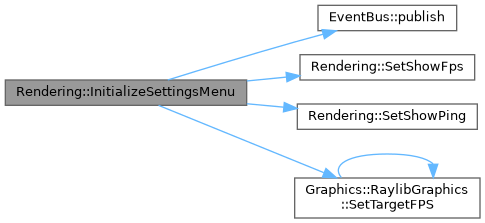

void	InitializeSettingsMenu ()

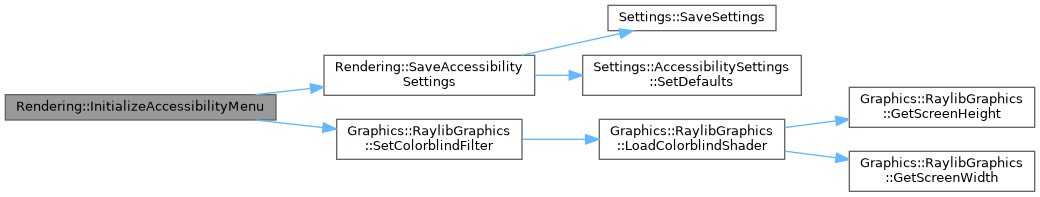

void	InitializeAccessibilityMenu ()

void	InitializeKeyBindingsMenu ()

void	InitializeMainMenu ()

void	InitializeLoginMenu ()

void	InitializeServerListMenu ()

void	InitializeAddServerMenu ()

void	InitializeRoomListMenu ()

void	InitializeCreateRoomMenu ()

void	InitializeWaitingRoomMenu ()

void	InitializeDefeatMenu ()

void	InitializeVictoryMenu ()

void	InitializeConnectionMenu ()

void	InitializeChatWidget ()

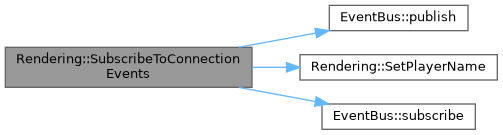

void	SubscribeToConnectionEvents ()

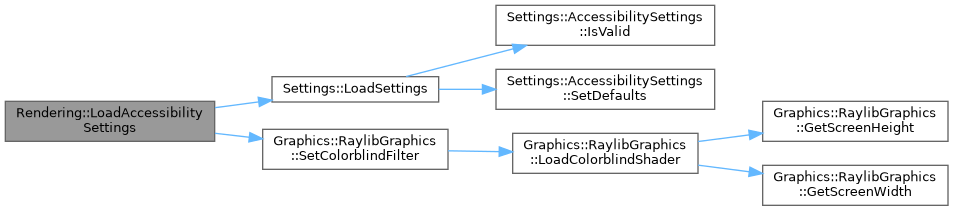

void	LoadAccessibilitySettings ()

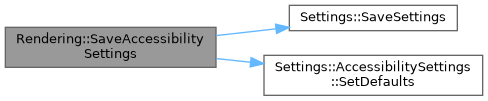

void	SaveAccessibilitySettings ()

void	UpdateFpsCounter ()
	Update FPS counter based on delta time.

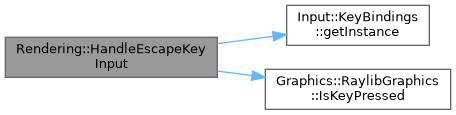

void	HandleEscapeKeyInput ()
	Handle ESC key input to toggle settings overlay in-game.

void	UpdateUI ()
	Update all UI elements based on current scene.

void	RenderGameScene ()
	Render the game scene (entities).

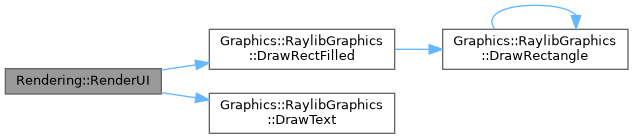

void	RenderUI ()
	Render all UI menus based on current scene and overlay state.

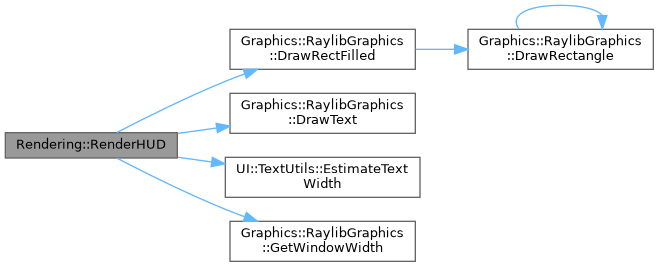

void	RenderHUD ()
	Render HUD elements (ping, FPS).

Private Attributes
Scene	_scene = Scene::MENU

std::string	_gameOverReason

EventBus &	_eventBus

bool	_initialized = false

bool	_quitRequested = false

uint32_t	_width = 0

uint32_t	_height = 0

Graphics::RaylibGraphics	_graphics

std::unique_ptr< Audio::SoundEffectManager >	_soundEffectManager

std::unique_ptr< UI::RaylibUIFactory >	_uiFactory

std::unique_ptr< Game::MainMenu >	_mainMenu

std::unique_ptr< Game::ServerListMenu >	_serverListMenu

std::unique_ptr< Game::AddServerMenu >	_addServerMenu

std::unique_ptr< Game::RoomListMenu >	_roomListMenu

std::unique_ptr< Game::CreateRoomMenu >	_createRoomMenu

std::unique_ptr< Game::WaitingRoomMenu >	_waitingRoomMenu

std::unique_ptr< Game::ConnectionMenu >	_connectionMenu

std::unique_ptr< Game::SettingsMenu >	_settingsMenu

std::unique_ptr< Game::AccessibilityMenu >	_accessibilityMenu

std::unique_ptr< Game::KeyBindingsMenu >	_keyBindingsMenu

std::unique_ptr< Game::ConfirmQuitMenu >	_confirmQuitMenu

std::unique_ptr< Game::LoginMenu >	_loginMenu

std::unique_ptr< Game::DefeatMenu >	_defeatMenu

std::unique_ptr< Game::VictoryMenu >	_victoryMenu

bool	_settingsOverlay = false

bool	_confirmQuitOverlay = false

bool	_loginOverlay = false

bool	_keyBindingsOverlay = false

std::string	_selectedServerIp = "127.0.0.1"

uint16_t	_selectedServerPort = 4242

bool	_isConnecting = false

std::string	_connectingServerName

std::string	_selectedRoomId

std::unique_ptr< EntityRenderer >	_entityRenderer

std::unique_ptr< Game::ChatWidget >	_chatWidget

uint32_t	_currentPing = 0

uint32_t	_displayedPing = 0

float	_pingUpdateTimer = 0.0f

bool	_showPing = true

bool	_showFps = true

uint32_t	_fps = 0

float	_fpsAccumulator = 0.0f

uint32_t	_fpsFrameCount = 0

Static Private Attributes
static constexpr float	PING_UPDATE_INTERVAL = 1.0f

Detailed Description

Graphical rendering system using Raylib.

Rendering handles the display of all visual game elements:

Game window
Sprites (ships, enemies, projectiles)
Text (UI, score, FPS)
Visual effects

Architecture:

Uses Raylib for 2D rendering
Caches textures for optimization
Handles double-buffering automatically
Integrates with EventBus for visual events

Definition at line 62 of file Rendering.hpp.

Member Enumeration Documentation

◆ Scene

enum class Rendering::Scene

strongprivate

Enumerator
MENU
IN_GAME
GAME_OVER

Definition at line 469 of file Rendering.hpp.

Constructor & Destructor Documentation

◆ Rendering()

Rendering::Rendering ( EventBus & eventBus )

explicit

Constructor with EventBus reference.

Parameters

eventBus Event bus for inter-component communication

Note: Does not create the window, call initialize() after

Definition at line 15 of file Rendering.cpp.

References _entityRenderer, and _graphics.

◆ ~Rendering()

Rendering::~Rendering ( )

Destructor.

Frees Raylib wrapper resources (textures, window, etc.)

Definition at line 21 of file Rendering.cpp.

References Shutdown().

Here is the call graph for this function:

Member Function Documentation

◆ AddChatMessage()

void Rendering::AddChatMessage	(	uint32_t	playerId,
		const std::string &	playerName,
		const std::string &	message,
		uint64_t	timestamp
	)

Add a chat message to the chat widget.

Parameters

playerId	ID of the player who sent the message
playerName	Name of the player
message	The message text
timestamp	Message timestamp

Definition at line 1344 of file Rendering.cpp.

References _chatWidget.

◆ ApplyInitialMenuSettings()

void Rendering::ApplyInitialMenuSettings ( )

private

Apply runtime settings affecting rendering (target FPS, HUD visibility...).

Definition at line 89 of file Rendering.cpp.

References _graphics, _settingsMenu, _showFps, _showPing, and Graphics::RaylibGraphics::SetTargetFPS().

Referenced by Initialize().

Here is the call graph for this function:

◆ ClearAllEntities()

void Rendering::ClearAllEntities ( )

Clear all entities from the rendering cache.

Useful for scene transitions or disconnection.

Definition at line 1207 of file Rendering.cpp.

References _entityRenderer.

◆ ClearBackground()

void Rendering::ClearBackground ( )

Clear background configuration.

Called when leaving the game scene to stop background rendering.

Definition at line 1220 of file Rendering.cpp.

References _entityRenderer.

◆ ClearWindow()

void Rendering::ClearWindow ( )

Clears the window before rendering its content.

Note: Must be called at the beginning of each frame before drawing.

Definition at line 715 of file Rendering.cpp.

References _graphics, _initialized, and Graphics::RaylibGraphics::ClearWindow().

Here is the call graph for this function:

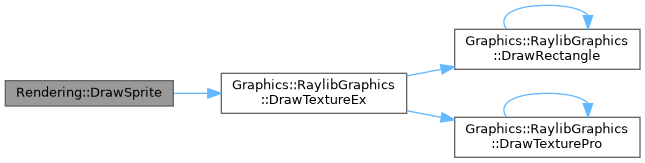

◆ DrawSprite()

void Rendering::DrawSprite	(	const std::string &	textureId,
		float	xPosition,
		float	yPosition,
		float	rotation = `0.0`,
		float	scale = `1.0`
	)

Draw a sprite on screen.

Adds a sprite to the render queue for current frame.

Parameters

textureId	Texture identifier (loaded with loadTexture)
x	X position on screen (0 = left)
y	Y position on screen (0 = top)
rotation	Rotation in degrees (0-360)
scale	Scale (1.0 = original size, 2.0 = double)

Note: Sprite is centered on (x, y); Call order determines render order (Z-order); Uses Raylib wrapper's sprite rendering (pending implementation)

Definition at line 1158 of file Rendering.cpp.

References _graphics, and Graphics::RaylibGraphics::DrawTextureEx().

Here is the call graph for this function:

◆ DrawText()

void Rendering::DrawText	(	const std::string &	text,
		float	xPosition,
		float	yPosition,
		uint32_t	size = `24`
	)

Draw text on screen.

Displays text with default font.

Parameters

text	Text to display (UTF-8 supported)
x	X position (origin at top-left of text)
y	Y position (origin at top-left of text)
size	Font size in pixels (default: 24)

Note: Uses default font loaded at initialization; Rendered on top of sprites (UI); Font rendering via Raylib wrapper (not yet implemented)

Definition at line 1163 of file Rendering.cpp.

References _graphics, and Graphics::RaylibGraphics::DrawText().

Here is the call graph for this function:

◆ GetHeight()

uint32_t Rendering::GetHeight ( ) const

Get window height.

Returns: Height in pixels

Definition at line 1172 of file Rendering.cpp.

References _height.

◆ GetReconciliationThreshold()

float Rendering::GetReconciliationThreshold ( ) const

Get the current reconciliation threshold.

Returns: Current threshold in pixels

Delegates to EntityRenderer.

Definition at line 1278 of file Rendering.cpp.

References _entityRenderer.

◆ GetShowFps()

bool Rendering::GetShowFps ( ) const

Get FPS display state.

Definition at line 736 of file Rendering.cpp.

References _showFps.

◆ GetShowPing()

bool Rendering::GetShowPing ( ) const

Get ping display state.

Definition at line 728 of file Rendering.cpp.

References _showPing.

◆ GetWidth()

uint32_t Rendering::GetWidth ( ) const

Get window width.

Returns: Width in pixels

Definition at line 1168 of file Rendering.cpp.

References _width.

◆ HandleEscapeKeyInput()

void Rendering::HandleEscapeKeyInput ( )

private

Handle ESC key input to toggle settings overlay in-game.

Definition at line 856 of file Rendering.cpp.

References _graphics, _scene, _settingsMenu, _settingsOverlay, Input::KeyBindings::getInstance(), IN_GAME, Graphics::RaylibGraphics::IsKeyPressed(), Game::SettingsMenu::OVERLAY, and Input::PAUSE_MENU.

Referenced by Render().

Here is the call graph for this function:

◆ Initialize()

bool Rendering::Initialize	(	uint32_t	width,
		uint32_t	height,
		const std::string &	title
	)

Initialize the rendering system and create window.

Creates a window through Raylib wrapper with specified parameters. Loads basic resources (fonts, shaders).

Parameters

width	Window width in pixels
height	Window height in pixels
title	Window title

Returns: true if initialization succeeds, false otherwise

Note: Must be called before any other rendering call; Recommended: 1920x1080 for R-Type; Depends on Raylib wrapper implementation (not yet available)

Definition at line 25 of file Rendering.cpp.

References _entityRenderer, _fps, _fpsAccumulator, _fpsFrameCount, _graphics, _height, _initialized, _quitRequested, _showFps, _showPing, _width, ApplyInitialMenuSettings(), InitializeMenus(), Graphics::RaylibGraphics::InitWindow(), LOG_INFO, and LOG_WARNING.

Here is the call graph for this function:

◆ InitializeAccessibilityMenu()

void Rendering::InitializeAccessibilityMenu ( )

private

Definition at line 207 of file Rendering.cpp.

References _accessibilityMenu, _graphics, _keyBindingsMenu, _keyBindingsOverlay, _settingsMenu, _uiFactory, Graphics::DEUTERANOPIA, Game::AccessibilityMenu::DEUTERANOPIA, Game::AccessibilityMenu::FULLSCREEN, LOG_INFO, Graphics::MONOCHROMACY, Game::AccessibilityMenu::MONOCHROMACY, Graphics::NONE, Game::KeyBindingsMenu::OVERLAY, Graphics::PROTANOPIA, Game::AccessibilityMenu::PROTANOPIA, SaveAccessibilitySettings(), Graphics::RaylibGraphics::SetColorblindFilter(), Graphics::TRITANOPIA, and Game::AccessibilityMenu::TRITANOPIA.

Referenced by InitializeMenus().

Here is the call graph for this function:

◆ InitializeAddServerMenu()

void Rendering::InitializeAddServerMenu ( )

private

Definition at line 427 of file Rendering.cpp.

References _addServerMenu, _graphics, _serverListMenu, _soundEffectManager, _uiFactory, LOG_ERROR, and LOG_INFO.

Referenced by InitializeMenus().

◆ InitializeChatWidget()

void Rendering::InitializeChatWidget ( )

private

Definition at line 1326 of file Rendering.cpp.

References _chatWidget, _graphics, _height, _uiFactory, _width, LOG_ERROR, and LOG_INFO.

Referenced by InitializeMenus().

◆ InitializeConfirmQuitMenu()

void Rendering::InitializeConfirmQuitMenu ( )

private

Definition at line 104 of file Rendering.cpp.

References _confirmQuitMenu, _confirmQuitOverlay, _mainMenu, _quitRequested, _scene, _soundEffectManager, _uiFactory, and MENU.

Referenced by InitializeMenus().

◆ InitializeConnectionMenu()

void Rendering::InitializeConnectionMenu ( )

private

Definition at line 462 of file Rendering.cpp.

References _connectionMenu, _eventBus, _graphics, _mainMenu, _soundEffectManager, _uiFactory, JOIN_GAME, EventBus::publish(), and StartGame().

Referenced by InitializeMenus().

Here is the call graph for this function:

◆ InitializeCreateRoomMenu()

void Rendering::InitializeCreateRoomMenu ( )

private

Definition at line 567 of file Rendering.cpp.

References _createRoomMenu, _eventBus, _graphics, _roomListMenu, _soundEffectManager, _uiFactory, _waitingRoomMenu, CREATE_ROOM, LOG_INFO, and EventBus::publish().

Referenced by InitializeMenus().

Here is the call graph for this function:

◆ InitializeDefeatMenu()

void Rendering::InitializeDefeatMenu ( )

private

Definition at line 491 of file Rendering.cpp.

References _defeatMenu, _eventBus, _mainMenu, _scene, _soundEffectManager, _uiFactory, LEAVE_ROOM, MENU, and EventBus::publish().

Referenced by InitializeMenus().

Here is the call graph for this function:

◆ InitializeKeyBindingsMenu()

void Rendering::InitializeKeyBindingsMenu ( )

private

Definition at line 273 of file Rendering.cpp.

References _accessibilityMenu, _graphics, _keyBindingsMenu, _keyBindingsOverlay, _uiFactory, Input::KeyBindings::getInstance(), LOG_INFO, Game::KeyBindingsMenu::OVERLAY, and Input::KeyBindings::SaveToFile().

Referenced by InitializeMenus().

Here is the call graph for this function:

◆ InitializeLoginMenu()

void Rendering::InitializeLoginMenu ( )

private

Definition at line 362 of file Rendering.cpp.

References _graphics, _loginMenu, _loginOverlay, _mainMenu, _soundEffectManager, and _uiFactory.

Referenced by InitializeMenus().

◆ InitializeMainMenu()

void Rendering::InitializeMainMenu ( )

private

Definition at line 298 of file Rendering.cpp.

References _eventBus, _height, _loginMenu, _loginOverlay, _mainMenu, _quitRequested, _roomListMenu, _serverListMenu, _settingsMenu, _settingsOverlay, _soundEffectManager, _uiFactory, _waitingRoomMenu, _width, AUTO_MATCHMAKING, Game::SettingsMenu::FULLSCREEN, LOG_INFO, EventBus::publish(), and REQUEST_ROOM_LIST.

Referenced by InitializeMenus().

Here is the call graph for this function:

◆ InitializeMenus()

void Rendering::InitializeMenus ( )

private

Initialize UI factory, menus and all related callbacks.

Keeps Rendering::Initialize() small and focused.

Definition at line 56 of file Rendering.cpp.

References _graphics, _soundEffectManager, _uiFactory, Input::KeyBindings::getInstance(), InitializeAccessibilityMenu(), InitializeAddServerMenu(), InitializeChatWidget(), InitializeConfirmQuitMenu(), InitializeConnectionMenu(), InitializeCreateRoomMenu(), InitializeDefeatMenu(), InitializeKeyBindingsMenu(), InitializeLoginMenu(), InitializeMainMenu(), InitializeRoomListMenu(), InitializeServerListMenu(), InitializeSettingsMenu(), InitializeVictoryMenu(), InitializeWaitingRoomMenu(), LoadAccessibilitySettings(), Input::KeyBindings::LoadFromFile(), LOG_WARNING, and SubscribeToConnectionEvents().

Referenced by Initialize().

Here is the call graph for this function:

◆ InitializeRoomListMenu()

void Rendering::InitializeRoomListMenu ( )

private

Definition at line 531 of file Rendering.cpp.

References _createRoomMenu, _eventBus, _graphics, _mainMenu, _roomListMenu, _selectedRoomId, _soundEffectManager, _uiFactory, _waitingRoomMenu, JOIN_GAME, LOG_INFO, and EventBus::publish().

Referenced by InitializeMenus().

Here is the call graph for this function:

◆ InitializeServerListMenu()

void Rendering::InitializeServerListMenu ( )

private

Definition at line 378 of file Rendering.cpp.

References _addServerMenu, _connectingServerName, _eventBus, _graphics, _isConnecting, _quitRequested, _selectedServerIp, _selectedServerPort, _serverListMenu, _soundEffectManager, _uiFactory, LOG_INFO, EventBus::publish(), and SERVER_CONNECT.

Referenced by InitializeMenus().

Here is the call graph for this function:

◆ InitializeSettingsMenu()

void Rendering::InitializeSettingsMenu ( )

private

Definition at line 128 of file Rendering.cpp.

References _accessibilityMenu, _chatWidget, _entityRenderer, _eventBus, _graphics, _mainMenu, _scene, _settingsMenu, _settingsOverlay, _soundEffectManager, _uiFactory, Game::SettingsMenu::FULLSCREEN, LEAVE_ROOM, LOG_INFO, MENU, EventBus::publish(), SetShowFps(), SetShowPing(), Graphics::RaylibGraphics::SetTargetFPS(), and UPDATE_AUTO_MATCHMAKING_PREF.

Referenced by InitializeMenus().

Here is the call graph for this function:

◆ InitializeVictoryMenu()

void Rendering::InitializeVictoryMenu ( )

private

Definition at line 511 of file Rendering.cpp.

References _eventBus, _mainMenu, _scene, _soundEffectManager, _uiFactory, _victoryMenu, LEAVE_ROOM, MENU, and EventBus::publish().

Referenced by InitializeMenus().

Here is the call graph for this function:

◆ InitializeWaitingRoomMenu()

void Rendering::InitializeWaitingRoomMenu ( )

private

Definition at line 600 of file Rendering.cpp.

References _eventBus, _graphics, _roomListMenu, _soundEffectManager, _uiFactory, _waitingRoomMenu, LEAVE_ROOM, LOG_INFO, EventBus::publish(), and START_GAME_REQUEST.

Referenced by InitializeMenus().

Here is the call graph for this function:

◆ IsGamepadAvailable()

bool Rendering::IsGamepadAvailable ( int gamepad ) const

Check if a gamepad is available/connected.

Parameters

gamepad Gamepad index (0-3)

Returns: true if the gamepad is connected

Definition at line 1236 of file Rendering.cpp.

References _graphics, and Graphics::RaylibGraphics::IsGamepadAvailable().

Here is the call graph for this function:

◆ IsGamepadButtonDown()

bool Rendering::IsGamepadButtonDown	(	int	gamepad,
		int	button
	)		const

Check if a gamepad button is currently held down.

Parameters

gamepad	Gamepad index (0-3)
button	Button code (GAMEPAD_BUTTON_* constants)

Returns: true if the button is down

Definition at line 1240 of file Rendering.cpp.

References _graphics, and Graphics::RaylibGraphics::IsGamepadButtonDown().

Here is the call graph for this function:

◆ IsKeyDown()

bool Rendering::IsKeyDown ( int key ) const

Check if a key is currently being held down.

Parameters

key	Raylib key code

Returns: true if key is down

Definition at line 1232 of file Rendering.cpp.

References _graphics, and Graphics::RaylibGraphics::IsKeyDown().

Here is the call graph for this function:

◆ IsWindowOpen()

bool Rendering::IsWindowOpen ( ) const

Check if window is open.

Returns: true if window exists and hasn't been closed

Note: Returns false if user closes the window

Definition at line 1146 of file Rendering.cpp.

References _graphics, _initialized, and Graphics::RaylibGraphics::IsWindowOpen().

Here is the call graph for this function:

◆ LoadAccessibilitySettings()

void Rendering::LoadAccessibilitySettings ( )

private

Definition at line 1373 of file Rendering.cpp.

References _accessibilityMenu, _graphics, Settings::AccessibilitySettings::colorblindFilter, Graphics::DEUTERANOPIA, Game::AccessibilityMenu::DEUTERANOPIA, Settings::DEUTERANOPIA, Settings::LoadSettings(), LOG_INFO, Graphics::MONOCHROMACY, Game::AccessibilityMenu::MONOCHROMACY, Settings::MONOCHROMACY, Graphics::NONE, Game::AccessibilityMenu::NONE, Graphics::PROTANOPIA, Game::AccessibilityMenu::PROTANOPIA, Settings::PROTANOPIA, Graphics::RaylibGraphics::SetColorblindFilter(), Settings::SETTINGS_FILE_PATH, Graphics::TRITANOPIA, Game::AccessibilityMenu::TRITANOPIA, and Settings::TRITANOPIA.

Referenced by InitializeMenus().

Here is the call graph for this function:

◆ LoadTexture()

bool Rendering::LoadTexture	(	const std::string &	textureName,
		const std::string &	path
	)

Load a texture from file.

Loads a texture into memory and associates it with an identifier. Texture is cached for reuse.

Parameters

id	Unique identifier for this texture (e.g., "player_ship")
path	Path to image file (PNG, JPG, BMP)

Returns: true if loading succeeds, false otherwise

Note: Textures are shared (same texture = same memory); Supported formats depend on Raylib wrapper implementation; Wrapper implementation pending

Definition at line 1153 of file Rendering.cpp.

References _graphics, and Graphics::RaylibGraphics::LoadTexture().

Here is the call graph for this function:

◆ MoveEntityLocally()

void Rendering::MoveEntityLocally	(	uint32_t	entityId,
		float	deltaX,
		float	deltaY
	)

Move an entity locally (client-side prediction)

Parameters

entityId	Entity ID to move
deltaX	Movement in X direction (pixels)
deltaY	Movement in Y direction (pixels)

Used for local player prediction: moves the entity immediately without waiting for server confirmation.

Provides instant (0ms) input response for the local player.

Definition at line 1260 of file Rendering.cpp.

References _entityRenderer.

◆ RemoveEntity()

void Rendering::RemoveEntity ( uint32_t id )

Remove an entity from rendering.

Parameters

id	Entity unique identifier

Delegates to EntityRenderer. Call when entity is destroyed.

Definition at line 1195 of file Rendering.cpp.

References _entityRenderer.

◆ Render()

void Rendering::Render ( )

Perform rendering of current frame.

Clears buffer, draws all queued elements, and displays. Must be called once per frame.

Note: Uses Raylib wrapper's rendering pipeline; Synchronized with VSync if enabled; Implementation pending Raylib wrapper availability

Definition at line 808 of file Rendering.cpp.

References _graphics, _initialized, _quitRequested, Graphics::RaylibGraphics::BeginColorblindCapture(), Graphics::RaylibGraphics::ClearWindow(), Graphics::RaylibGraphics::DisplayWindow(), Graphics::RaylibGraphics::EndColorblindCapture(), HandleEscapeKeyInput(), RenderGameScene(), RenderHUD(), RenderUI(), Graphics::RaylibGraphics::StartDrawing(), UpdateFpsCounter(), UpdateUI(), and Graphics::RaylibGraphics::WindowShouldClose().

Here is the call graph for this function:

◆ RenderGameScene()

void Rendering::RenderGameScene ( )

private

Render the game scene (entities).

Definition at line 1004 of file Rendering.cpp.

References _entityRenderer, _graphics, _scene, Graphics::RaylibGraphics::GetDeltaTime(), and IN_GAME.

Referenced by Render().

Here is the call graph for this function:

◆ RenderHUD()

void Rendering::RenderHUD ( )

private

Render HUD elements (ping, FPS).

Definition at line 1110 of file Rendering.cpp.

References _displayedPing, _fps, _graphics, _showFps, _showPing, Graphics::RaylibGraphics::DrawRectFilled(), Graphics::RaylibGraphics::DrawText(), UI::TextUtils::EstimateTextWidth(), and Graphics::RaylibGraphics::GetWindowWidth().

Referenced by Render().

Here is the call graph for this function:

◆ RenderUI()

void Rendering::RenderUI ( )

private

Render all UI menus based on current scene and overlay state.

Definition at line 1012 of file Rendering.cpp.

References _accessibilityMenu, _addServerMenu, _chatWidget, _confirmQuitMenu, _confirmQuitOverlay, _connectionMenu, _createRoomMenu, _defeatMenu, _gameOverReason, _graphics, _height, _keyBindingsMenu, _loginMenu, _mainMenu, _roomListMenu, _scene, _serverListMenu, _settingsMenu, _settingsOverlay, _victoryMenu, _waitingRoomMenu, _width, Graphics::RaylibGraphics::DrawRectFilled(), Graphics::RaylibGraphics::DrawText(), GAME_OVER, and MENU.

Referenced by Render().

Here is the call graph for this function:

◆ SaveAccessibilitySettings()

void Rendering::SaveAccessibilitySettings ( )

private

Definition at line 1428 of file Rendering.cpp.

References _accessibilityMenu, Settings::AccessibilitySettings::colorblindFilter, Game::AccessibilityMenu::DEUTERANOPIA, Settings::DEUTERANOPIA, LOG_ERROR, LOG_INFO, Game::AccessibilityMenu::MONOCHROMACY, Settings::MONOCHROMACY, Settings::NONE, Game::AccessibilityMenu::PROTANOPIA, Settings::PROTANOPIA, Settings::SaveSettings(), Settings::AccessibilitySettings::SetDefaults(), Settings::SETTINGS_FILE_PATH, Game::AccessibilityMenu::TRITANOPIA, and Settings::TRITANOPIA.

Referenced by InitializeAccessibilityMenu().

Here is the call graph for this function:

◆ SetBackground()

void Rendering::SetBackground	(	const std::string &	mainBackground,
		const std::string &	parallaxBackground,
		float	scrollSpeed,
		float	parallaxSpeedFactor
	)

Set up background layers for parallax scrolling.

Parameters

mainBackground	Path to the main background texture
parallaxBackground	Path to the parallax layer texture (rendered on top, scrolls slower)
scrollSpeed	Base scroll speed in pixels/second
parallaxSpeedFactor	Speed factor for parallax layer (0.5 = half speed)

Called when starting a game with map configuration.

Definition at line 1213 of file Rendering.cpp.

References _entityRenderer.

◆ SetClientSidePredictionEnabled()

void Rendering::SetClientSidePredictionEnabled ( bool enabled )

Enable or disable client-side prediction for local player.

Parameters

enabled true to enable prediction (instant movement), false for interpolation

Delegates to EntityRenderer. Should be called when toggling prediction mode.

Definition at line 1266 of file Rendering.cpp.

References _entityRenderer.

◆ SetLocalPlayerMoving()

void Rendering::SetLocalPlayerMoving ( bool moving )

Set whether the local player is currently moving.

Parameters

moving true if player is actively moving, false if stopped

This affects reconciliation behavior to prevent rollback when stopping. Delegates to EntityRenderer.

Definition at line 1285 of file Rendering.cpp.

References _entityRenderer.

◆ SetMyEntityId()

void Rendering::SetMyEntityId ( uint32_t id )

Set the local player's entity ID.

Parameters

id	Entity ID representing the local player

Allows visual differentiation of the player's own entity.

Definition at line 1201 of file Rendering.cpp.

References _entityRenderer.

◆ SetOnChatMessageSent()

void Rendering::SetOnChatMessageSent ( std::function< void(const std::string &)> callback )

Set callback for when a chat message is sent.

Parameters

callback Function to call when user sends a message

Definition at line 1351 of file Rendering.cpp.

References _chatWidget.

◆ SetPing()

void Rendering::SetPing ( uint32_t pingMs )

Set the current ping value for display.

Parameters

pingMs Ping in milliseconds

Updates the ping value displayed in the top-right corner. Color changes based on quality:

Green: 0-50ms (excellent)
Yellow: 51-100ms (good)
Orange: 101-150ms (fair)
Red: 151+ms (poor)

Definition at line 1291 of file Rendering.cpp.

References _currentPing.

◆ SetPlayerName()

void Rendering::SetPlayerName ( const std::string & name )

Update the displayed player name (e.g., after authentication)

Parameters

name	The player's username

Definition at line 740 of file Rendering.cpp.

References _mainMenu, and LOG_INFO.

Referenced by SubscribeToConnectionEvents().

◆ SetReconciliationThreshold()

void Rendering::SetReconciliationThreshold ( float threshold )

Set the reconciliation threshold for client-side prediction.

Parameters

threshold Distance in pixels before server correction is applied

Controls when the client prediction is corrected by the server's authoritative position. Smaller values = more frequent corrections (tighter sync, more visual jitter) Larger values = fewer corrections (looser sync, smoother visuals)

Recommended ranges based on network latency:

Low latency (<50ms): 3.0f - 5.0f pixels
Medium latency (50-150ms): 5.0f - 10.0f pixels (default)
High latency (>150ms): 10.0f - 20.0f pixels

Delegates to EntityRenderer.

Note: Default is 5.0f pixels

Definition at line 1272 of file Rendering.cpp.

References _entityRenderer.

◆ SetShowFps()

void Rendering::SetShowFps ( bool enabled )

Enable/disable FPS display.

Definition at line 732 of file Rendering.cpp.

References _showFps.

Referenced by InitializeSettingsMenu().

◆ SetShowPing()

void Rendering::SetShowPing ( bool enabled )

Enable/disable ping display.

Definition at line 724 of file Rendering.cpp.

References _showPing.

Referenced by InitializeSettingsMenu().

◆ ShowGameOver()

void Rendering::ShowGameOver ( const std::string & reason )

Display the game over screen.

Parameters

reason Reason for game over (e.g., "Defeat", "Victory")

Shows the appropriate game over menu based on the reason:

"Victory" or similar -> Victory screen
"Defeat" or similar -> Defeat screen

Definition at line 780 of file Rendering.cpp.

References _defeatMenu, _gameOverReason, _scene, _settingsMenu, _settingsOverlay, _victoryMenu, and GAME_OVER.

◆ Shutdown()

void Rendering::Shutdown ( )

Stop the rendering system and destroy window.

Frees all allocated graphical resources. Closes the window properly.

Definition at line 707 of file Rendering.cpp.

References _graphics, _initialized, and Graphics::RaylibGraphics::CloseWindow().

Referenced by ~Rendering().

Here is the call graph for this function:

◆ StartGame()

void Rendering::StartGame ( )

Switch immediately to the game scene.

Forces the rendering system to enter the game mode:

Hides all menus
Enables entity rendering
Sets scene to IN_GAME

Useful when the game state is already active (e.g. after login flow).

Definition at line 747 of file Rendering.cpp.

References _addServerMenu, _connectionMenu, _createRoomMenu, _entityRenderer, _graphics, _initialized, _mainMenu, _roomListMenu, _scene, _serverListMenu, _settingsMenu, _settingsOverlay, _waitingRoomMenu, IN_GAME, and LOG_INFO.

Referenced by InitializeConnectionMenu().

◆ SubscribeToConnectionEvents()

void Rendering::SubscribeToConnectionEvents ( )

private

Definition at line 626 of file Rendering.cpp.

References _eventBus, _isConnecting, _loginMenu, _mainMenu, _scene, _serverListMenu, _settingsMenu, APPLY_AUTO_MATCHMAKING_PREF, AUTH_SUCCESS, CONNECTION_FAILED, CONNECTION_SUCCESS, LOG_ERROR, LOG_INFO, LOGIN_FAILED, MENU, EventBus::publish(), REGISTER_FAILED, REGISTER_SUCCESS, REQUEST_ROOM_LIST, ROOM_LIST_RECEIVED, SetPlayerName(), and EventBus::subscribe().

Referenced by InitializeMenus().

Here is the call graph for this function:

◆ UpdateBackground()

void Rendering::UpdateBackground ( float deltaTime )

Update background scroll positions.

Parameters

deltaTime Time elapsed since last frame (in seconds)

Should be called every frame during gameplay.

Definition at line 1226 of file Rendering.cpp.

References _entityRenderer.

◆ UpdateChatVisibility()

void Rendering::UpdateChatVisibility ( )

Update chat widget visibility based on current scene.

Definition at line 1357 of file Rendering.cpp.

References _chatWidget, _scene, _settingsMenu, _waitingRoomMenu, and IN_GAME.

Referenced by UpdateUI().

◆ UpdateEntity()

void Rendering::UpdateEntity	(	uint32_t	id,
		RType::Messages::Shared::EntityType	type,
		float	x,
		float	y,
		int	health,
		const std::string &	currentAnimation,
		int	srcX,
		int	srcY,
		int	srcW,
		int	srcH
	)

Update or create an entity for rendering with animation.

Parameters

id	Entity unique identifier
type	Entity type (Player, Enemy, Bullet)
x	World position X
y	World position Y
health	Current health (-1 if not applicable)
currentAnimation	Current animation clip name
srcX	Sprite source X on spritesheet
srcY	Sprite source Y on spritesheet
srcW	Sprite width
srcH	Sprite height

Delegates to EntityRenderer. Call when receiving GameState updates.

Definition at line 1187 of file Rendering.cpp.

References _entityRenderer.

◆ UpdateFpsCounter()

void Rendering::UpdateFpsCounter ( )

private

Update FPS counter based on delta time.

Definition at line 845 of file Rendering.cpp.

References _fps, _fpsAccumulator, _fpsFrameCount, _graphics, and Graphics::RaylibGraphics::GetDeltaTime().

Referenced by Render().

Here is the call graph for this function:

◆ UpdateInterpolation()

void Rendering::UpdateInterpolation ( float deltaTime )

Update interpolation for all entities.

Parameters

deltaTime Time elapsed since last frame (in seconds)

Should be called every frame before Render() to smoothly interpolate entity positions between network updates.

Delegates to EntityRenderer.

Definition at line 1244 of file Rendering.cpp.

References _entityRenderer.

◆ UpdatePingTimer()

void Rendering::UpdatePingTimer ( float deltaTime )

Update ping display timer (called every frame)

Parameters

deltaTime Time elapsed since last frame (in seconds)

Updates the displayed ping value once per second to avoid flickering and optimize performance. Should be called from GameLoop's update().

Definition at line 1250 of file Rendering.cpp.

References _currentPing, _displayedPing, _pingUpdateTimer, and PING_UPDATE_INTERVAL.

◆ UpdateRoomList()

void Rendering::UpdateRoomList ( const std::vector< RoomData > & rooms )

Update room list from server data.

Parameters

rooms Vector of room information

Definition at line 1295 of file Rendering.cpp.

References _roomListMenu, and LOG_INFO.

◆ UpdateUI()

void Rendering::UpdateUI ( )

private

Update all UI elements based on current scene.

Definition at line 885 of file Rendering.cpp.

References _accessibilityMenu, _addServerMenu, _chatWidget, _confirmQuitMenu, _connectionMenu, _createRoomMenu, _defeatMenu, _eventBus, _keyBindingsMenu, _loginMenu, _mainMenu, _roomListMenu, _scene, _serverListMenu, _settingsMenu, _settingsOverlay, _victoryMenu, _waitingRoomMenu, GAME_OVER, LOG_INFO, LOGIN_ACCOUNT, MENU, EventBus::publish(), REGISTER_ACCOUNT, and UpdateChatVisibility().

Referenced by Render().

Here is the call graph for this function:

◆ UpdateWaitingRoom()

void Rendering::UpdateWaitingRoom	(	const std::vector< Game::PlayerInfo > &	players,
		const std::string &	roomName,
		bool	isHost,
		bool	isSpectator = `false`
	)

Update waiting room with player list.

Parameters

players	Vector of players in the room
roomName	Name of the room
isHost	Whether local player is the host
isSpectator	Whether local player is a spectator

Definition at line 1310 of file Rendering.cpp.

References _waitingRoomMenu, and LOG_INFO.

◆ WindowShouldClose()

bool Rendering::WindowShouldClose ( ) const

Definition at line 1176 of file Rendering.cpp.

References _graphics, _initialized, and Graphics::RaylibGraphics::WindowShouldClose().

Here is the call graph for this function:

Member Data Documentation

◆ _accessibilityMenu

std::unique_ptr<Game::AccessibilityMenu> Rendering::_accessibilityMenu

private

Definition at line 494 of file Rendering.hpp.

Referenced by InitializeAccessibilityMenu(), InitializeKeyBindingsMenu(), InitializeSettingsMenu(), LoadAccessibilitySettings(), RenderUI(), SaveAccessibilitySettings(), and UpdateUI().

◆ _addServerMenu

std::unique_ptr<Game::AddServerMenu> Rendering::_addServerMenu

private

Definition at line 488 of file Rendering.hpp.

Referenced by InitializeAddServerMenu(), InitializeServerListMenu(), RenderUI(), StartGame(), and UpdateUI().

◆ _chatWidget

std::unique_ptr<Game::ChatWidget> Rendering::_chatWidget

private

Definition at line 519 of file Rendering.hpp.

Referenced by AddChatMessage(), InitializeChatWidget(), InitializeSettingsMenu(), RenderUI(), SetOnChatMessageSent(), UpdateChatVisibility(), and UpdateUI().

◆ _confirmQuitMenu

std::unique_ptr<Game::ConfirmQuitMenu> Rendering::_confirmQuitMenu

private

Definition at line 496 of file Rendering.hpp.

Referenced by InitializeConfirmQuitMenu(), RenderUI(), and UpdateUI().

◆ _confirmQuitOverlay

bool Rendering::_confirmQuitOverlay = false

private

Definition at line 502 of file Rendering.hpp.

Referenced by InitializeConfirmQuitMenu(), and RenderUI().

◆ _connectingServerName

std::string Rendering::_connectingServerName

private

Definition at line 510 of file Rendering.hpp.

Referenced by InitializeServerListMenu().

◆ _connectionMenu

std::unique_ptr<Game::ConnectionMenu> Rendering::_connectionMenu

private

Definition at line 492 of file Rendering.hpp.

Referenced by InitializeConnectionMenu(), RenderUI(), StartGame(), and UpdateUI().

◆ _createRoomMenu

std::unique_ptr<Game::CreateRoomMenu> Rendering::_createRoomMenu

private

Definition at line 490 of file Rendering.hpp.

Referenced by InitializeCreateRoomMenu(), InitializeRoomListMenu(), RenderUI(), StartGame(), and UpdateUI().

◆ _currentPing

uint32_t Rendering::_currentPing = 0

private

Definition at line 522 of file Rendering.hpp.

Referenced by SetPing(), and UpdatePingTimer().

◆ _defeatMenu

std::unique_ptr<Game::DefeatMenu> Rendering::_defeatMenu

private

Definition at line 498 of file Rendering.hpp.

Referenced by InitializeDefeatMenu(), RenderUI(), ShowGameOver(), and UpdateUI().

◆ _displayedPing

uint32_t Rendering::_displayedPing = 0

private

Definition at line 523 of file Rendering.hpp.

Referenced by RenderHUD(), and UpdatePingTimer().

◆ _entityRenderer

std::unique_ptr<EntityRenderer> Rendering::_entityRenderer

private

◆ _eventBus

EventBus& Rendering::_eventBus

private

Definition at line 474 of file Rendering.hpp.

Referenced by InitializeConnectionMenu(), InitializeCreateRoomMenu(), InitializeDefeatMenu(), InitializeMainMenu(), InitializeRoomListMenu(), InitializeServerListMenu(), InitializeSettingsMenu(), InitializeVictoryMenu(), InitializeWaitingRoomMenu(), SubscribeToConnectionEvents(), and UpdateUI().

◆ _fps

uint32_t Rendering::_fps = 0

private

Definition at line 531 of file Rendering.hpp.

Referenced by Initialize(), RenderHUD(), and UpdateFpsCounter().

◆ _fpsAccumulator

float Rendering::_fpsAccumulator = 0.0f

private

Definition at line 532 of file Rendering.hpp.

Referenced by Initialize(), and UpdateFpsCounter().

◆ _fpsFrameCount

uint32_t Rendering::_fpsFrameCount = 0

private

Definition at line 533 of file Rendering.hpp.

Referenced by Initialize(), and UpdateFpsCounter().

◆ _gameOverReason

std::string Rendering::_gameOverReason

private

Definition at line 472 of file Rendering.hpp.

Referenced by RenderUI(), and ShowGameOver().

◆ _graphics

Graphics::RaylibGraphics Rendering::_graphics

private

◆ _height

uint32_t Rendering::_height = 0

private

Definition at line 478 of file Rendering.hpp.

Referenced by GetHeight(), Initialize(), InitializeChatWidget(), InitializeMainMenu(), and RenderUI().

◆ _initialized

bool Rendering::_initialized = false

private

Definition at line 475 of file Rendering.hpp.

Referenced by ClearWindow(), Initialize(), IsWindowOpen(), Render(), Shutdown(), StartGame(), and WindowShouldClose().

◆ _isConnecting

bool Rendering::_isConnecting = false

private

Definition at line 509 of file Rendering.hpp.

Referenced by InitializeServerListMenu(), and SubscribeToConnectionEvents().

◆ _keyBindingsMenu

std::unique_ptr<Game::KeyBindingsMenu> Rendering::_keyBindingsMenu

private

Definition at line 495 of file Rendering.hpp.

Referenced by InitializeAccessibilityMenu(), InitializeKeyBindingsMenu(), RenderUI(), and UpdateUI().

◆ _keyBindingsOverlay

bool Rendering::_keyBindingsOverlay = false

private

Definition at line 504 of file Rendering.hpp.

Referenced by InitializeAccessibilityMenu(), and InitializeKeyBindingsMenu().

◆ _loginMenu

std::unique_ptr<Game::LoginMenu> Rendering::_loginMenu

private

Definition at line 497 of file Rendering.hpp.

Referenced by InitializeLoginMenu(), InitializeMainMenu(), RenderUI(), SubscribeToConnectionEvents(), and UpdateUI().

◆ _loginOverlay

bool Rendering::_loginOverlay = false

private

Definition at line 503 of file Rendering.hpp.

Referenced by InitializeLoginMenu(), and InitializeMainMenu().

◆ _mainMenu

std::unique_ptr<Game::MainMenu> Rendering::_mainMenu

private

Definition at line 486 of file Rendering.hpp.

Referenced by InitializeConfirmQuitMenu(), InitializeConnectionMenu(), InitializeDefeatMenu(), InitializeLoginMenu(), InitializeMainMenu(), InitializeRoomListMenu(), InitializeSettingsMenu(), InitializeVictoryMenu(), RenderUI(), SetPlayerName(), StartGame(), SubscribeToConnectionEvents(), and UpdateUI().

◆ _pingUpdateTimer

float Rendering::_pingUpdateTimer = 0.0f

private

Definition at line 524 of file Rendering.hpp.

Referenced by UpdatePingTimer().

◆ _quitRequested

bool Rendering::_quitRequested = false

private

Definition at line 476 of file Rendering.hpp.

Referenced by Initialize(), InitializeConfirmQuitMenu(), InitializeMainMenu(), InitializeServerListMenu(), and Render().

◆ _roomListMenu

std::unique_ptr<Game::RoomListMenu> Rendering::_roomListMenu

private

Definition at line 489 of file Rendering.hpp.

Referenced by InitializeCreateRoomMenu(), InitializeMainMenu(), InitializeRoomListMenu(), InitializeWaitingRoomMenu(), RenderUI(), StartGame(), UpdateRoomList(), and UpdateUI().

◆ _scene

Scene Rendering::_scene = Scene::MENU

private

Definition at line 471 of file Rendering.hpp.

Referenced by HandleEscapeKeyInput(), InitializeConfirmQuitMenu(), InitializeDefeatMenu(), InitializeSettingsMenu(), InitializeVictoryMenu(), RenderGameScene(), RenderUI(), ShowGameOver(), StartGame(), SubscribeToConnectionEvents(), UpdateChatVisibility(), and UpdateUI().

◆ _selectedRoomId

std::string Rendering::_selectedRoomId

private

Definition at line 513 of file Rendering.hpp.

Referenced by InitializeRoomListMenu().

◆ _selectedServerIp

std::string Rendering::_selectedServerIp = "127.0.0.1"

private

Definition at line 507 of file Rendering.hpp.

Referenced by InitializeServerListMenu().

◆ _selectedServerPort

uint16_t Rendering::_selectedServerPort = 4242

private

Definition at line 508 of file Rendering.hpp.

Referenced by InitializeServerListMenu().

◆ _serverListMenu

std::unique_ptr<Game::ServerListMenu> Rendering::_serverListMenu

private

Definition at line 487 of file Rendering.hpp.

Referenced by InitializeAddServerMenu(), InitializeMainMenu(), InitializeServerListMenu(), RenderUI(), StartGame(), SubscribeToConnectionEvents(), and UpdateUI().

◆ _settingsMenu

std::unique_ptr<Game::SettingsMenu> Rendering::_settingsMenu

private

Definition at line 493 of file Rendering.hpp.

Referenced by ApplyInitialMenuSettings(), HandleEscapeKeyInput(), InitializeAccessibilityMenu(), InitializeMainMenu(), InitializeSettingsMenu(), RenderUI(), ShowGameOver(), StartGame(), SubscribeToConnectionEvents(), UpdateChatVisibility(), and UpdateUI().

◆ _settingsOverlay

bool Rendering::_settingsOverlay = false

private

Definition at line 501 of file Rendering.hpp.

Referenced by HandleEscapeKeyInput(), InitializeMainMenu(), InitializeSettingsMenu(), RenderUI(), ShowGameOver(), StartGame(), and UpdateUI().

◆ _showFps

bool Rendering::_showFps = true

private

Definition at line 528 of file Rendering.hpp.

Referenced by ApplyInitialMenuSettings(), GetShowFps(), Initialize(), RenderHUD(), and SetShowFps().

◆ _showPing

bool Rendering::_showPing = true

private

Definition at line 527 of file Rendering.hpp.

Referenced by ApplyInitialMenuSettings(), GetShowPing(), Initialize(), RenderHUD(), and SetShowPing().

◆ _soundEffectManager

std::unique_ptr<Audio::SoundEffectManager> Rendering::_soundEffectManager

private

Definition at line 482 of file Rendering.hpp.

Referenced by InitializeAddServerMenu(), InitializeConfirmQuitMenu(), InitializeConnectionMenu(), InitializeCreateRoomMenu(), InitializeDefeatMenu(), InitializeLoginMenu(), InitializeMainMenu(), InitializeMenus(), InitializeRoomListMenu(), InitializeServerListMenu(), InitializeSettingsMenu(), InitializeVictoryMenu(), and InitializeWaitingRoomMenu().

◆ _uiFactory

std::unique_ptr<UI::RaylibUIFactory> Rendering::_uiFactory

private

Definition at line 485 of file Rendering.hpp.

Referenced by InitializeAccessibilityMenu(), InitializeAddServerMenu(), InitializeChatWidget(), InitializeConfirmQuitMenu(), InitializeConnectionMenu(), InitializeCreateRoomMenu(), InitializeDefeatMenu(), InitializeKeyBindingsMenu(), InitializeLoginMenu(), InitializeMainMenu(), InitializeMenus(), InitializeRoomListMenu(), InitializeServerListMenu(), InitializeSettingsMenu(), InitializeVictoryMenu(), and InitializeWaitingRoomMenu().

◆ _victoryMenu

std::unique_ptr<Game::VictoryMenu> Rendering::_victoryMenu

private

Definition at line 499 of file Rendering.hpp.

Referenced by InitializeVictoryMenu(), RenderUI(), ShowGameOver(), and UpdateUI().

◆ _waitingRoomMenu

std::unique_ptr<Game::WaitingRoomMenu> Rendering::_waitingRoomMenu

private

Definition at line 491 of file Rendering.hpp.

Referenced by InitializeCreateRoomMenu(), InitializeMainMenu(), InitializeRoomListMenu(), InitializeWaitingRoomMenu(), RenderUI(), StartGame(), UpdateChatVisibility(), UpdateUI(), and UpdateWaitingRoom().

◆ _width

uint32_t Rendering::_width = 0

private

Definition at line 477 of file Rendering.hpp.

Referenced by GetWidth(), Initialize(), InitializeChatWidget(), InitializeMainMenu(), and RenderUI().

◆ PING_UPDATE_INTERVAL

constexpr float Rendering::PING_UPDATE_INTERVAL = 1.0f

staticconstexprprivate

Definition at line 525 of file Rendering.hpp.

Referenced by UpdatePingTimer().

The documentation for this class was generated from the following files:

client/Rendering/Rendering.hpp
client/Rendering/Rendering.cpp

Public Member Functions

Private Types

Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Member Enumeration Documentation

◆ Scene

Constructor & Destructor Documentation

◆ Rendering()

◆ ~Rendering()

Member Function Documentation

◆ AddChatMessage()

◆ ApplyInitialMenuSettings()

◆ ClearAllEntities()

◆ ClearBackground()

◆ ClearWindow()

◆ DrawSprite()

◆ DrawText()

◆ GetHeight()

◆ GetReconciliationThreshold()

◆ GetShowFps()

◆ GetShowPing()

◆ GetWidth()

◆ HandleEscapeKeyInput()

◆ Initialize()

◆ InitializeAccessibilityMenu()

◆ InitializeAddServerMenu()

◆ InitializeChatWidget()

◆ InitializeConfirmQuitMenu()

◆ InitializeConnectionMenu()

◆ InitializeCreateRoomMenu()

◆ InitializeDefeatMenu()

◆ InitializeKeyBindingsMenu()

◆ InitializeLoginMenu()

◆ InitializeMainMenu()

◆ InitializeMenus()

◆ InitializeRoomListMenu()

◆ InitializeServerListMenu()

◆ InitializeSettingsMenu()

◆ InitializeVictoryMenu()

◆ InitializeWaitingRoomMenu()

◆ IsGamepadAvailable()

◆ IsGamepadButtonDown()

◆ IsKeyDown()

◆ IsWindowOpen()

◆ LoadAccessibilitySettings()

◆ LoadTexture()

◆ MoveEntityLocally()

◆ RemoveEntity()

◆ Render()

◆ RenderGameScene()

◆ RenderHUD()

◆ RenderUI()

◆ SaveAccessibilitySettings()

◆ SetBackground()

◆ SetClientSidePredictionEnabled()

◆ SetLocalPlayerMoving()

◆ SetMyEntityId()

◆ SetOnChatMessageSent()

◆ SetPing()

◆ SetPlayerName()

◆ SetReconciliationThreshold()

◆ SetShowFps()

◆ SetShowPing()

◆ ShowGameOver()

◆ Shutdown()

◆ StartGame()

◆ SubscribeToConnectionEvents()

◆ UpdateBackground()

◆ UpdateChatVisibility()

◆ UpdateEntity()

◆ UpdateFpsCounter()

◆ UpdateInterpolation()

◆ UpdatePingTimer()

◆ UpdateRoomList()

◆ UpdateUI()

◆ UpdateWaitingRoom()

◆ WindowShouldClose()

Member Data Documentation
