Menu for viewing and remapping key bindings. More...

#include <KeyBindingsMenu.hpp>

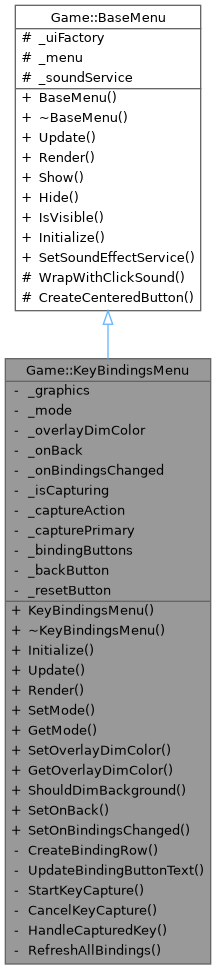

Inheritance diagram for Game::KeyBindingsMenu:

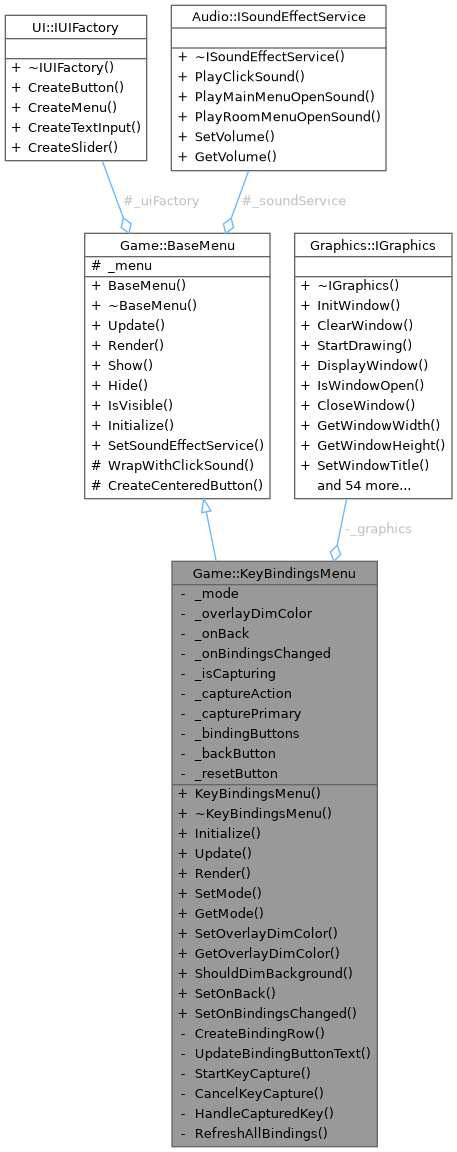

Collaboration diagram for Game::KeyBindingsMenu:

Classes
struct	BindingButtons

Public Types
enum class	Mode { FULLSCREEN , OVERLAY }
	Display mode for the menu. More...

Public Member Functions
	KeyBindingsMenu (UI::IUIFactory &uiFactory, Graphics::IGraphics &graphics)
	Construct a new KeyBindingsMenu.

	~KeyBindingsMenu () override=default

void	Initialize () override
	Initialize UI elements.

void	Update () override
	Update menu state (should be called every frame).

void	Render () override
	Render menu (should be called every frame).

void	SetMode (Mode mode)

Mode	GetMode () const

void	SetOverlayDimColor (unsigned int color)

unsigned int	GetOverlayDimColor () const

bool	ShouldDimBackground () const

void	SetOnBack (std::function< void()> callback)
	Set callback for when back button is pressed.

void	SetOnBindingsChanged (std::function< void()> callback)
	Set callback for when bindings are changed.

Public Member Functions inherited from Game::BaseMenu
	BaseMenu (UI::IUIFactory &uiFactory)
	Constructor with UI factory reference.

virtual	~BaseMenu ()=default
	Virtual destructor.

virtual void	Show ()
	Show the menu.

virtual void	Hide ()
	Hide the menu.

virtual bool	IsVisible () const
	Check if menu is currently visible.

void	SetSoundEffectService (Audio::ISoundEffectService *soundService)
	Set the sound effect service for playing UI sounds.

Private Member Functions
void	CreateBindingRow (Input::GameAction action, float yOffset)
	Create a binding row for an action.

void	UpdateBindingButtonText (Input::GameAction action, bool isPrimary)
	Update the display text for a binding button.

void	StartKeyCapture (Input::GameAction action, bool isPrimary)
	Start listening for a new key press to remap.

void	CancelKeyCapture ()
	Cancel key capture mode.

void	HandleCapturedKey (int key)
	Handle a key press during capture mode.

void	RefreshAllBindings ()
	Refresh all binding button texts.

Private Attributes
Graphics::IGraphics &	_graphics

Mode	_mode {Mode::FULLSCREEN}

unsigned int	_overlayDimColor {0x80000000}

std::function< void()>	_onBack

std::function< void()>	_onBindingsChanged

bool	_isCapturing {false}

Input::GameAction	_captureAction {Input::GameAction::MOVE_UP}

bool	_capturePrimary {true}

std::unordered_map< Input::GameAction, BindingButtons >	_bindingButtons

std::shared_ptr< UI::IButton >	_backButton

std::shared_ptr< UI::IButton >	_resetButton

Additional Inherited Members
Protected Member Functions inherited from Game::BaseMenu
std::function< void()>	WrapWithClickSound (std::function< void()> callback)
	Wrap a callback to play click sound before executing.

std::shared_ptr< UI::IButton >	CreateCenteredButton (const char *label, float offsetY, float width, float height, unsigned int backgroundColor, unsigned int hoverColor, std::function< void()> callback)
	Create a button with standard styling and positioning.

Protected Attributes inherited from Game::BaseMenu
UI::IUIFactory &	_uiFactory

std::shared_ptr< UI::IMenu >	_menu

Audio::ISoundEffectService *	_soundService {nullptr}

Detailed Description

Menu for viewing and remapping key bindings.

Displays all game actions with their current key bindings. Allows users to remap keys by clicking on a binding and pressing a new key.

Definition at line 28 of file KeyBindingsMenu.hpp.

Member Enumeration Documentation

◆ Mode

enum class Game::KeyBindingsMenu::Mode

strong

Display mode for the menu.

Enumerator
FULLSCREEN	Takes the whole window.
OVERLAY	Displays over the game with dimmed background.

Definition at line 33 of file KeyBindingsMenu.hpp.

Constructor & Destructor Documentation

◆ KeyBindingsMenu()

Game::KeyBindingsMenu::KeyBindingsMenu	(	UI::IUIFactory &	uiFactory,
		Graphics::IGraphics &	graphics
	)

explicit

Construct a new KeyBindingsMenu.

Parameters

uiFactory	UI factory for creating elements
graphics	Graphics interface for rendering

Definition at line 14 of file KeyBindingsMenu.cpp.

◆ ~KeyBindingsMenu()

Game::KeyBindingsMenu::~KeyBindingsMenu ( )

overridedefault

Member Function Documentation

◆ CancelKeyCapture()

void Game::KeyBindingsMenu::CancelKeyCapture ( )

private

Cancel key capture mode.

Definition at line 272 of file KeyBindingsMenu.cpp.

References LOG_INFO.

◆ CreateBindingRow()

void Game::KeyBindingsMenu::CreateBindingRow	(	Input::GameAction	action,
		float	yOffset
	)

private

Create a binding row for an action.

Parameters

action	The game action
yOffset	Vertical offset for positioning

Definition at line 110 of file KeyBindingsMenu.cpp.

References Input::KeyBindings::ClearSecondaryKey(), Input::KeyBindings::GetActionName(), Input::KeyBindings::GetBindingName(), and Input::KeyBindings::getInstance().

Referenced by Initialize().

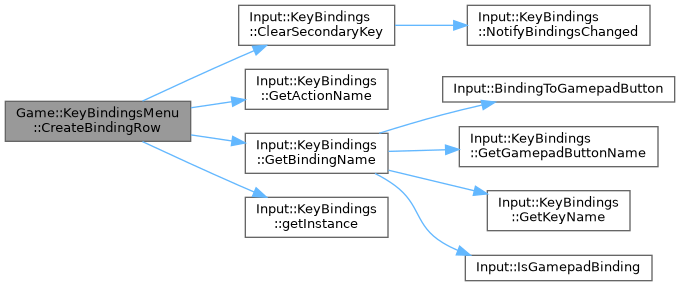

Here is the call graph for this function:

◆ GetMode()

KeyBindingsMenu::Mode Game::KeyBindingsMenu::GetMode ( ) const

Definition at line 327 of file KeyBindingsMenu.cpp.

◆ GetOverlayDimColor()

unsigned int Game::KeyBindingsMenu::GetOverlayDimColor ( ) const

Definition at line 335 of file KeyBindingsMenu.cpp.

◆ HandleCapturedKey()

void Game::KeyBindingsMenu::HandleCapturedKey ( int key )

private

Handle a key press during capture mode.

Parameters

key	The key that was pressed

Definition at line 277 of file KeyBindingsMenu.cpp.

References Input::KeyBindings::GetActionName(), Input::KeyBindings::getInstance(), Input::KeyBindings::GetKeyName(), and LOG_INFO.

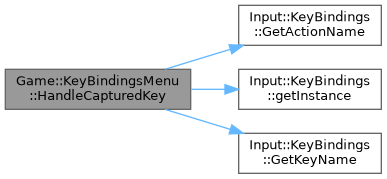

Here is the call graph for this function:

◆ Initialize()

void Game::KeyBindingsMenu::Initialize ( )

overridevirtual

Initialize UI elements.

Implements Game::BaseMenu.

Definition at line 17 of file KeyBindingsMenu.cpp.

References _bindingButtons, _graphics, Game::BaseMenu::_menu, _resetButton, Game::BaseMenu::_uiFactory, UI::CENTER_HORIZONTAL, Input::CHAT_OPEN, CreateBindingRow(), UI::IUIFactory::CreateButton(), Game::BaseMenu::CreateCenteredButton(), Graphics::IGraphics::GetWindowHeight(), Input::MENU_BACK, Input::MENU_CONFIRM, Input::MENU_NEXT, Input::MENU_PREVIOUS, Input::MOVE_DOWN, Input::MOVE_LEFT, Input::MOVE_RIGHT, Input::MOVE_UP, Input::PAUSE_MENU, and Input::SHOOT.

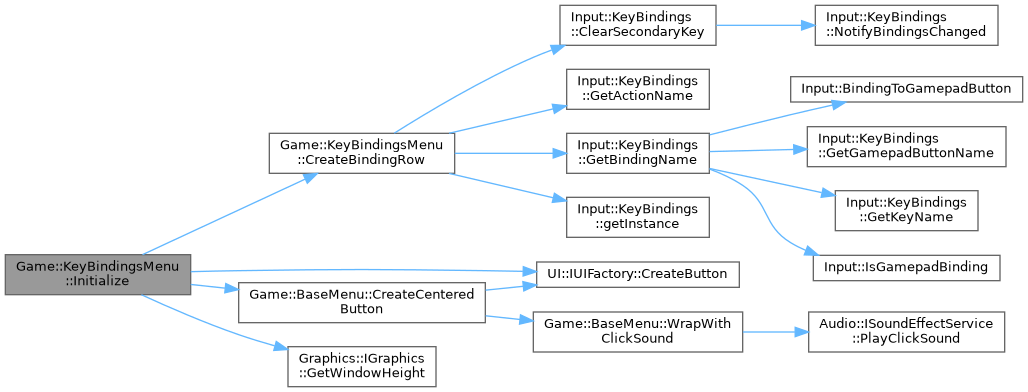

Here is the call graph for this function:

◆ RefreshAllBindings()

void Game::KeyBindingsMenu::RefreshAllBindings ( )

private

Refresh all binding button texts.

Definition at line 316 of file KeyBindingsMenu.cpp.

◆ Render()

void Game::KeyBindingsMenu::Render ( )

overridevirtual

Render menu (should be called every frame).

Reimplemented from Game::BaseMenu.

Definition at line 226 of file KeyBindingsMenu.cpp.

References Input::KeyBindings::GetActionName().

Here is the call graph for this function:

◆ SetMode()

void Game::KeyBindingsMenu::SetMode ( Mode mode )

Definition at line 323 of file KeyBindingsMenu.cpp.

◆ SetOnBack()

void Game::KeyBindingsMenu::SetOnBack ( std::function< void()> callback )

Set callback for when back button is pressed.

Definition at line 343 of file KeyBindingsMenu.cpp.

◆ SetOnBindingsChanged()

void Game::KeyBindingsMenu::SetOnBindingsChanged ( std::function< void()> callback )

Set callback for when bindings are changed.

Definition at line 347 of file KeyBindingsMenu.cpp.

◆ SetOverlayDimColor()

void Game::KeyBindingsMenu::SetOverlayDimColor ( unsigned int color )

Definition at line 331 of file KeyBindingsMenu.cpp.

◆ ShouldDimBackground()

bool Game::KeyBindingsMenu::ShouldDimBackground ( ) const

Definition at line 339 of file KeyBindingsMenu.cpp.

◆ StartKeyCapture()

void Game::KeyBindingsMenu::StartKeyCapture	(	Input::GameAction	action,
		bool	isPrimary
	)

private

Start listening for a new key press to remap.

Parameters

action	The action to remap
isPrimary	Whether remapping primary or secondary key

Definition at line 263 of file KeyBindingsMenu.cpp.

References Input::KeyBindings::GetActionName(), and LOG_INFO.

Here is the call graph for this function:

◆ Update()

void Game::KeyBindingsMenu::Update ( )

overridevirtual

Update menu state (should be called every frame).

Reimplemented from Game::BaseMenu.

Definition at line 177 of file KeyBindingsMenu.cpp.

References Input::GamepadButtonToBinding().

Here is the call graph for this function:

◆ UpdateBindingButtonText()

void Game::KeyBindingsMenu::UpdateBindingButtonText	(	Input::GameAction	action,
		bool	isPrimary
	)

private

Update the display text for a binding button.

Parameters

action	The game action whose button to update
isPrimary	Whether to update primary or secondary button

Definition at line 298 of file KeyBindingsMenu.cpp.

References Input::KeyBindings::GetBindingName(), and Input::KeyBindings::getInstance().

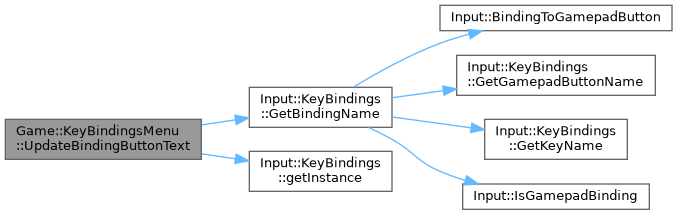

Here is the call graph for this function:

Member Data Documentation

◆ _backButton

std::shared_ptr<UI::IButton> Game::KeyBindingsMenu::_backButton

private

Definition at line 135 of file KeyBindingsMenu.hpp.

◆ _bindingButtons

std::unordered_map<Input::GameAction, BindingButtons> Game::KeyBindingsMenu::_bindingButtons

private

Definition at line 132 of file KeyBindingsMenu.hpp.

Referenced by Initialize().

◆ _captureAction

Input::GameAction Game::KeyBindingsMenu::_captureAction {Input::GameAction::MOVE_UP}

private

Definition at line 124 of file KeyBindingsMenu.hpp.

◆ _capturePrimary

bool Game::KeyBindingsMenu::_capturePrimary {true}

private

Definition at line 125 of file KeyBindingsMenu.hpp.

◆ _graphics

Graphics::IGraphics& Game::KeyBindingsMenu::_graphics

private

Definition at line 112 of file KeyBindingsMenu.hpp.

Referenced by Initialize().

◆ _isCapturing

bool Game::KeyBindingsMenu::_isCapturing {false}

private

Definition at line 123 of file KeyBindingsMenu.hpp.

◆ _mode

Mode Game::KeyBindingsMenu::_mode {Mode::FULLSCREEN}

private

Definition at line 115 of file KeyBindingsMenu.hpp.

◆ _onBack

std::function<void()> Game::KeyBindingsMenu::_onBack

private

Definition at line 119 of file KeyBindingsMenu.hpp.

◆ _onBindingsChanged

std::function<void()> Game::KeyBindingsMenu::_onBindingsChanged

private

Definition at line 120 of file KeyBindingsMenu.hpp.

◆ _overlayDimColor

unsigned int Game::KeyBindingsMenu::_overlayDimColor {0x80000000}

private

Definition at line 116 of file KeyBindingsMenu.hpp.

◆ _resetButton

std::shared_ptr<UI::IButton> Game::KeyBindingsMenu::_resetButton

private

Definition at line 136 of file KeyBindingsMenu.hpp.

Referenced by Initialize().

The documentation for this class was generated from the following files:

client/Menu/KeyBindingsMenu.hpp
client/Menu/KeyBindingsMenu.cpp
