Abstract interface for UI buttons. More...

#include <IButton.hpp>

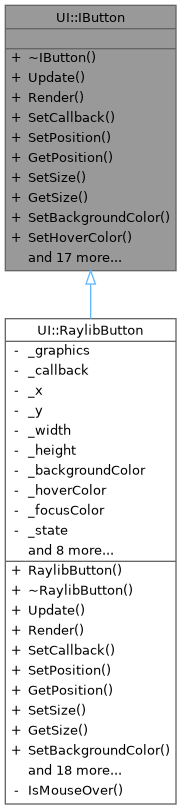

Inheritance diagram for UI::IButton:

Collaboration diagram for UI::IButton:

Public Member Functions
virtual	~IButton ()=default
	Virtual destructor.

virtual void	Update ()=0
	Update the button internal state (hover/pressed) and trigger callbacks.

virtual void	Render ()=0
	Render the button.

virtual void	SetCallback (std::function< void()> callback)=0
	Set callback invoked on click.

virtual void	SetPosition (float x, float y)=0
	Set the top-left position of the button.

virtual void	GetPosition (float &x, float &y) const =0
	Get the current top-left position of the button.

virtual void	SetSize (float width, float height)=0
	Set the button size.

virtual void	GetSize (float &width, float &height) const =0
	Get the current size of the button.

virtual void	SetBackgroundColor (unsigned int color)=0
	Set button background color.

virtual void	SetHoverColor (unsigned int color)=0
	Set button hover color.

virtual ButtonState	GetState () const =0
	Get current button state.

virtual bool	IsEnabled () const =0
	Check if button is enabled.

virtual void	SetEnabled (bool enabled)=0
	Enable/disable the button.

virtual void	SetText (const std::string &text)=0
	Set button label text.

virtual const std::string &	GetText () const =0
	Get button label text.

virtual void	SetTextSize (int size)=0
	Set label font size in pixels.

virtual int	GetTextSize () const =0
	Get label font size.

virtual void	SetTextColor (unsigned int color)=0
	Set label color.

virtual unsigned int	GetTextColor () const =0
	Get label color.

virtual void	SetFont (int fontHandle)=0
	Set font handle to use for button text.

virtual int	GetFont () const =0
	Get current font handle used by this button.

virtual void	SetAlign (Align align)=0
	Set alignment mode relative to the current window.

virtual Align	GetAlign () const =0
	Get current alignment mode.

virtual void	ApplyAlignment ()=0
	Apply alignment (recomputes position based on window size).

virtual void	SetFocused (bool focused)=0
	Set the keyboard focus state of the button.

virtual bool	IsFocused () const =0
	Check if this button currently has keyboard focus.

virtual void	TriggerClick ()=0
	Programmatically trigger the button's click callback.

Detailed Description

Abstract interface for UI buttons.

This interface defines a minimal, backend-agnostic contract for interactive buttons:

input update (hover/pressed/click)
rendering
visuals (size, position, colors)
label text (font, color, size)
optional alignment helpers relative to the window

Definition at line 50 of file IButton.hpp.

Constructor & Destructor Documentation

◆ ~IButton()

virtual UI::IButton::~IButton ( )

virtualdefault

Virtual destructor.

Member Function Documentation

◆ ApplyAlignment()

virtual void UI::IButton::ApplyAlignment ( )

pure virtual

Apply alignment (recomputes position based on window size).

Note: Call this after SetSize(), or when the window is resized.

Implemented in UI::RaylibButton.

◆ GetAlign()

virtual Align UI::IButton::GetAlign ( ) const

pure virtual

Get current alignment mode.

Returns: Align.

Implemented in UI::RaylibButton.

◆ GetFont()

virtual int UI::IButton::GetFont ( ) const

pure virtual

Get current font handle used by this button.

Returns: Font handle (or -1 for default font).

Implemented in UI::RaylibButton.

◆ GetPosition()

virtual void UI::IButton::GetPosition	(	float &	x,
		float &	y
	)		const

pure virtual

Get the current top-left position of the button.

Parameters

x	Output X position in pixels.
y	Output Y position in pixels.

Implemented in UI::RaylibButton.

◆ GetSize()

virtual void UI::IButton::GetSize	(	float &	width,
		float &	height
	)		const

pure virtual

Get the current size of the button.

Parameters

width	Output width in pixels.
height	Output height in pixels.

Implemented in UI::RaylibButton.

◆ GetState()

virtual ButtonState UI::IButton::GetState ( ) const

pure virtual

Get current button state.

Returns: ButtonState.

Implemented in UI::RaylibButton.

◆ GetText()

virtual const std::string & UI::IButton::GetText ( ) const

pure virtual

Get button label text.

Returns: Reference to internal string.

Implemented in UI::RaylibButton.

◆ GetTextColor()

virtual unsigned int UI::IButton::GetTextColor ( ) const

pure virtual

Get label color.

Returns: Color in 0xAARRGGBB format.

Implemented in UI::RaylibButton.

◆ GetTextSize()

virtual int UI::IButton::GetTextSize ( ) const

pure virtual

Get label font size.

Returns: Font size in pixels.

Implemented in UI::RaylibButton.

◆ IsEnabled()

virtual bool UI::IButton::IsEnabled ( ) const

pure virtual

Check if button is enabled.

Returns: true if enabled.

Implemented in UI::RaylibButton.

◆ IsFocused()

virtual bool UI::IButton::IsFocused ( ) const

pure virtual

Check if this button currently has keyboard focus.

Returns: true if focused.

Implemented in UI::RaylibButton.

◆ Render()

virtual void UI::IButton::Render ( )

pure virtual

Render the button.

Note: Must be called between the backend BeginDrawing/EndDrawing calls.

Implemented in UI::RaylibButton.

◆ SetAlign()

virtual void UI::IButton::SetAlign ( Align align )

pure virtual

Set alignment mode relative to the current window.

Parameters

align Desired alignment.

Note: Implementations may call ApplyAlignment() immediately.

Implemented in UI::RaylibButton.

◆ SetBackgroundColor()

virtual void UI::IButton::SetBackgroundColor ( unsigned int color )

pure virtual

Set button background color.

Parameters

color Color in 0xAARRGGBB format.

Implemented in UI::RaylibButton.

◆ SetCallback()

virtual void UI::IButton::SetCallback ( std::function< void()> callback )

pure virtual

Set callback invoked on click.

Parameters

callback Function called when the button is clicked.

Implemented in UI::RaylibButton.

◆ SetEnabled()

virtual void UI::IButton::SetEnabled ( bool enabled )

pure virtual

Enable/disable the button.

Parameters

enabled true to enable.

Implemented in UI::RaylibButton.

◆ SetFocused()

virtual void UI::IButton::SetFocused ( bool focused )

pure virtual

Set the keyboard focus state of the button.

Parameters

focused true if this button should be focused.

Implemented in UI::RaylibButton.

◆ SetFont()

virtual void UI::IButton::SetFont ( int fontHandle )

pure virtual

Set font handle to use for button text.

Parameters

fontHandle Font handle returned by Graphics::IGraphics::LoadFont(). Use -1 for default font.

Implemented in UI::RaylibButton.

◆ SetHoverColor()

virtual void UI::IButton::SetHoverColor ( unsigned int color )

pure virtual

Set button hover color.

Parameters

color Color in 0xAARRGGBB format.

Implemented in UI::RaylibButton.

◆ SetPosition()

virtual void UI::IButton::SetPosition	(	float	x,
		float	y
	)

pure virtual

Set the top-left position of the button.

Parameters

x	X position in pixels.
y	Y position in pixels.

Implemented in UI::RaylibButton.

◆ SetSize()

virtual void UI::IButton::SetSize	(	float	width,
		float	height
	)

pure virtual

Set the button size.

Parameters

width	Width in pixels.
height	Height in pixels.

Implemented in UI::RaylibButton.

◆ SetText()

virtual void UI::IButton::SetText ( const std::string & text )

pure virtual

Set button label text.

Parameters

text	UTF-8 text.

Implemented in UI::RaylibButton.

◆ SetTextColor()

virtual void UI::IButton::SetTextColor ( unsigned int color )

pure virtual

Set label color.

Parameters

color Color in 0xAARRGGBB format.

Implemented in UI::RaylibButton.

◆ SetTextSize()

virtual void UI::IButton::SetTextSize ( int size )

pure virtual

Set label font size in pixels.

Parameters

size	Font size.

Implemented in UI::RaylibButton.

◆ TriggerClick()

virtual void UI::IButton::TriggerClick ( )

pure virtual

Programmatically trigger the button's click callback.

Note: Used by keyboard navigation to simulate a click on Enter key.

Implemented in UI::RaylibButton.

◆ Update()

virtual void UI::IButton::Update ( )

pure virtual

Update the button internal state (hover/pressed) and trigger callbacks.

Note: Should be called once per frame.

Implemented in UI::RaylibButton.

The documentation for this class was generated from the following file:

client/UI/IButton.hpp
