Abstract interface for graphics rendering operations. More...

#include <IGraphics.hpp>

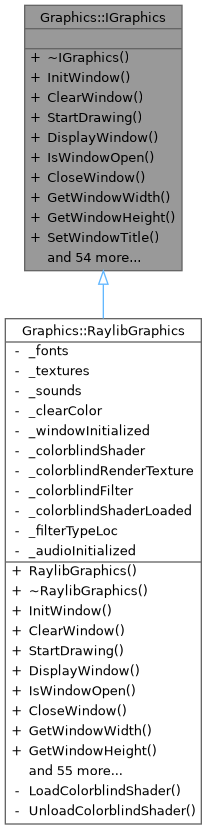

Inheritance diagram for Graphics::IGraphics:

Collaboration diagram for Graphics::IGraphics:

Public Member Functions
virtual	~IGraphics ()=default
	Virtual destructor.

virtual void	InitWindow (int width, int height, const char *title)=0
	Initialize the graphics window.

virtual void	ClearWindow ()=0
	Clear the window with the current clear color.

virtual void	StartDrawing ()=0
	Begin drawing frame (setup canvas for drawing operations)

virtual void	DisplayWindow ()=0
	Display the current frame to the window (end drawing and swap buffers)

virtual bool	IsWindowOpen () const =0
	Check if the window is still open.

virtual void	CloseWindow ()=0
	Close the graphics window and cleanup resources.

virtual int	GetWindowWidth () const =0
	Get current window width in pixels.

virtual int	GetWindowHeight () const =0
	Get current window height in pixels.

virtual void	SetWindowTitle (const char *title)=0
	Change the window title.

virtual void	SetWindowSize (int width, int height)=0
	Resize the window.

virtual void	ToggleFullScreen ()=0
	Toggle between fullscreen and windowed mode.

virtual void	SetTargetFPS (int fps)=0
	Set the target frames per second for rendering.

virtual void	SetClearColor (unsigned int color)=0
	Set the background clear color.

virtual void	TakeScreenshot (const char *filepath)=0
	Capture the current screen and save it to a file.

virtual float	GetTime () const =0
	Get elapsed time since initialization.

virtual float	GetDeltaTime () const =0
	Get the time elapsed for the last frame.

virtual void	DrawRect (int x, int y, int width, int height, unsigned int color)=0
	Draw a rectangle outline.

virtual void	DrawRectFilled (int x, int y, int width, int height, unsigned int color)=0
	Draw a filled rectangle.

virtual void	DrawCircle (int x, int y, int radius, unsigned int color)=0
	Draw a circle outline.

virtual void	DrawCircleFilled (int x, int y, int radius, unsigned int color)=0
	Draw a filled circle.

virtual int	LoadFont (const char *filepath, int size)=0
	Load a font from file.

virtual void	UnloadFont (int fontHandle)=0
	Unload a previously loaded font.

virtual void	DrawText (int fontHandle, const char *text, int x, int y, int fontSize, unsigned int color)=0
	Draw text using a loaded font.

virtual int	GetFontHeight (int fontHandle, int fontSize)=0
	Get the height of a font at a given size.

virtual int	LoadTexture (const char textureName, const char filepath)=0
	Load a texture from an image file.

virtual int	CreateTextureFromMemory (const char textureName, const void pixels, int width, int height, int format)=0
	Create a texture from raw pixel data in memory.

virtual void	UpdateTexture (const char textureName, const void pixels)=0
	Update an existing texture with new pixel data.

virtual void	UnloadTexture (const char *textureName)=0
	Unload a previously loaded texture.

virtual void	DrawTexture (const char *textureName, int x, int y, unsigned int tint)=0
	Draw a texture at the specified position.

virtual void	DrawTextureEx (const char *textureName, int srcX, int srcY, int srcW, int srcH, float destX, float destY, float rotation, float scale, unsigned int tint)=0
	Draw a texture with advanced parameters (rotation, scale, source rectangle)

virtual bool	GetTextureSize (const char *textureName, int &width, int &height) const =0
	Get the dimensions of a loaded texture.

virtual void	DrawTexturePro (const char *textureName, int srcX, int srcY, int srcW, int srcH, float destX, float destY, float destW, float destH, unsigned int tint)=0
	Draw a texture with separate width/height scaling (for non-uniform scaling)

virtual bool	IsKeyPressed (int key) const =0
	Check if a key was pressed (triggered once when key goes down)

virtual bool	IsKeyDown (int key) const =0
	Check if a key is currently being held down.

virtual bool	IsKeyReleased (int key) const =0
	Check if a key was released (triggered once when key goes up)

virtual bool	IsGamepadAvailable (int gamepad) const =0
	Check if a gamepad is available/connected.

virtual bool	IsGamepadButtonPressed (int gamepad, int button) const =0
	Check if a gamepad button was pressed this frame.

virtual bool	IsGamepadButtonDown (int gamepad, int button) const =0
	Check if a gamepad button is currently held down.

virtual float	GetGamepadAxisMovement (int gamepad, int axis) const =0
	Get gamepad axis value (for analog sticks and triggers)

virtual bool	IsMouseButtonPressed (int button) const =0
	Check if a mouse button was pressed (triggered once when button goes down)

virtual bool	IsMouseButtonDown (int button) const =0
	Check if a mouse button is currently being held down.

virtual void	GetMousePosition (float &x, float &y) const =0
	Get the current mouse cursor position.

virtual bool	WindowShouldClose () const =0
	Check if the window should close.

virtual int	GetMouseX () const =0
	Get the current X position of the mouse cursor.

virtual int	GetMouseY () const =0
	Get the current Y position of the mouse cursor.

virtual int	GetCharPressed () const =0
	Get the next character from the keyboard input queue.

virtual int	GetScreenWidth () const =0
	Get the screen width (same as window width)

virtual int	GetScreenHeight () const =0
	Get the screen height (same as window height)

virtual void	DrawRectangle (int x, int y, int width, int height, unsigned int color)=0
	Draw a filled rectangle (alias for DrawRectFilled)

virtual void	DrawRectangleLines (int x, int y, int width, int height, unsigned int color)=0
	Draw a rectangle outline (alias for DrawRect)

virtual void	DrawText (const char *text, int x, int y, int fontSize, unsigned int color)=0
	Draw text using default font (simplified version)

virtual void	SetColorblindFilter (ColorblindFilterType filter)=0
	Set the colorblind filter type.

virtual ColorblindFilterType	GetColorblindFilter () const =0
	Get the current colorblind filter type.

virtual void	BeginColorblindCapture ()=0
	Begin capturing frame for colorblind filter processing.

virtual void	EndColorblindCapture ()=0
	End capturing and apply the colorblind filter.

virtual void	InitAudioDevice ()=0
	Initialize the audio device.

virtual void	CloseAudioDevice ()=0
	Close the audio device and cleanup audio resources.

virtual bool	IsAudioDeviceReady () const =0
	Check if audio device is ready.

virtual bool	LoadSound (const char soundName, const char filepath)=0
	Load a sound from file.

virtual void	UnloadSound (const char *soundName)=0
	Unload a previously loaded sound.

virtual void	PlaySound (const char *soundName)=0
	Play a loaded sound.

virtual void	SetSoundVolume (const char *soundName, float volume)=0
	Set volume for a specific sound.

virtual bool	IsSoundPlaying (const char *soundName) const =0
	Check if a sound is currently playing.

Detailed Description

Abstract interface for graphics rendering operations.

This interface provides a platform-agnostic API for window management, rendering primitives, texture handling, font rendering, and input processing. Implementations should provide concrete backends (e.g., Raylib, SDL, SFML).

Note: All color values follow the format 0xAARRGGBB (Alpha, Red, Green, Blue)

Definition at line 32 of file IGraphics.hpp.

Constructor & Destructor Documentation

◆ ~IGraphics()

virtual Graphics::IGraphics::~IGraphics ( )

virtualdefault

Virtual destructor.

Member Function Documentation

◆ BeginColorblindCapture()

virtual void Graphics::IGraphics::BeginColorblindCapture ( )

pure virtual

Begin capturing frame for colorblind filter processing.

Note: Must be called after StartDrawing() and before any draw calls

Implemented in Graphics::RaylibGraphics.

◆ ClearWindow()

virtual void Graphics::IGraphics::ClearWindow ( )

pure virtual

Clear the window with the current clear color.

Implemented in Graphics::RaylibGraphics.

Referenced by Game::LoginMenu::Render().

◆ CloseAudioDevice()

virtual void Graphics::IGraphics::CloseAudioDevice ( )

pure virtual

Close the audio device and cleanup audio resources.

Implemented in Graphics::RaylibGraphics.

◆ CloseWindow()

virtual void Graphics::IGraphics::CloseWindow ( )

pure virtual

Close the graphics window and cleanup resources.

Implemented in Graphics::RaylibGraphics.

◆ CreateTextureFromMemory()

virtual int Graphics::IGraphics::CreateTextureFromMemory	(	const char *	textureName,
		const void *	pixels,
		int	width,
		int	height,
		int	format
	)

pure virtual

Create a texture from raw pixel data in memory.

Parameters

pixels	Pointer to raw pixel data
width	Width of the texture in pixels
height	Height of the texture in pixels
format	Pixel format (implementation-specific)

Returns: Texture handle (integer ID) for use in drawing operations

Implemented in Graphics::RaylibGraphics.

◆ DisplayWindow()

virtual void Graphics::IGraphics::DisplayWindow ( )

pure virtual

Display the current frame to the window (end drawing and swap buffers)

Implemented in Graphics::RaylibGraphics.

◆ DrawCircle()

virtual void Graphics::IGraphics::DrawCircle	(	int	x,
		int	y,
		int	radius,
		unsigned int	color
	)

pure virtual

Draw a circle outline.

Parameters

x	X coordinate of the circle center
y	Y coordinate of the circle center
radius	Radius of the circle in pixels
color	Color in 0xAARRGGBB format

Implemented in Graphics::RaylibGraphics.

Referenced by UI::RaylibSlider::Render().

◆ DrawCircleFilled()

virtual void Graphics::IGraphics::DrawCircleFilled	(	int	x,
		int	y,
		int	radius,
		unsigned int	color
	)

pure virtual

Draw a filled circle.

Parameters

x	X coordinate of the circle center
y	Y coordinate of the circle center
radius	Radius of the circle in pixels
color	Color in 0xAARRGGBB format

Implemented in Graphics::RaylibGraphics.

Referenced by UI::RaylibSlider::Render().

◆ DrawRect()

virtual void Graphics::IGraphics::DrawRect	(	int	x,
		int	y,
		int	width,
		int	height,
		unsigned int	color
	)

pure virtual

Draw a rectangle outline.

Parameters

x	X coordinate of the top-left corner
y	Y coordinate of the top-left corner
width	Width of the rectangle
height	Height of the rectangle
color	Color in 0xAARRGGBB format

Implemented in Graphics::RaylibGraphics.

Referenced by Game::WaitingRoomMenu::Render(), and UI::RaylibButton::Render().

◆ DrawRectangle()

virtual void Graphics::IGraphics::DrawRectangle	(	int	x,
		int	y,
		int	width,
		int	height,
		unsigned int	color
	)

pure virtual

Draw a filled rectangle (alias for DrawRectFilled)

Parameters

x	X coordinate of the top-left corner
y	Y coordinate of the top-left corner
width	Width of the rectangle
height	Height of the rectangle
color	Color in 0xAARRGGBB format

Implemented in Graphics::RaylibGraphics.

Referenced by Game::ChatWidget::Render(), UI::RaylibSlider::Render(), and UI::RaylibTextInput::Render().

◆ DrawRectangleLines()

virtual void Graphics::IGraphics::DrawRectangleLines	(	int	x,
		int	y,
		int	width,
		int	height,
		unsigned int	color
	)

pure virtual

Draw a rectangle outline (alias for DrawRect)

Parameters

x	X coordinate of the top-left corner
y	Y coordinate of the top-left corner
width	Width of the rectangle
height	Height of the rectangle
color	Color in 0xAARRGGBB format

Implemented in Graphics::RaylibGraphics.

Referenced by Game::ChatWidget::Render(), and UI::RaylibTextInput::Render().

◆ DrawRectFilled()

virtual void Graphics::IGraphics::DrawRectFilled	(	int	x,
		int	y,
		int	width,
		int	height,
		unsigned int	color
	)

pure virtual

Draw a filled rectangle.

Parameters

x	X coordinate of the top-left corner
y	Y coordinate of the top-left corner
width	Width of the rectangle
height	Height of the rectangle
color	Color in 0xAARRGGBB format

Implemented in Graphics::RaylibGraphics.

Referenced by Game::LoginMenu::Render(), Game::WaitingRoomMenu::Render(), and UI::RaylibButton::Render().

◆ DrawText() [1/2]

virtual void Graphics::IGraphics::DrawText	(	const char *	text,
		int	x,
		int	y,
		int	fontSize,
		unsigned int	color
	)

pure virtual

Draw text using default font (simplified version)

Parameters

text	Text string to render
x	X coordinate for text position
y	Y coordinate for text position
fontSize	Size of the rendered text
color	Text color in 0xAARRGGBB format

Implemented in Graphics::RaylibGraphics.

◆ DrawText() [2/2]

virtual void Graphics::IGraphics::DrawText	(	int	fontHandle,
		const char *	text,
		int	x,
		int	y,
		int	fontSize,
		unsigned int	color
	)

pure virtual

Draw text using a loaded font.

Parameters

fontHandle	Font handle (or -1 for default font)
text	Text string to render
x	X coordinate for text position
y	Y coordinate for text position
fontSize	Size of the rendered text
color	Text color in 0xAARRGGBB format

Implemented in Graphics::RaylibGraphics.

Referenced by Game::ChatWidget::Render(), Game::AccessibilityMenu::Render(), Game::AddServerMenu::Render(), Game::ConnectionMenu::Render(), Game::CreateRoomMenu::Render(), Game::LoginMenu::Render(), Game::RoomListMenu::Render(), Game::ServerListMenu::Render(), Game::SettingsMenu::Render(), Game::WaitingRoomMenu::Render(), UI::RaylibButton::Render(), and UI::RaylibTextInput::Render().

◆ DrawTexture()

virtual void Graphics::IGraphics::DrawTexture	(	const char *	textureName,
		int	x,
		int	y,
		unsigned int	tint
	)

pure virtual

Draw a texture at the specified position.

Parameters

textureName	Name of the texture to draw
x	X coordinate for drawing position
y	Y coordinate for drawing position
tint	Tint color in 0xAARRGGBB format (0xFFFFFFFF for no tint)

Implemented in Graphics::RaylibGraphics.

◆ DrawTextureEx()

virtual void Graphics::IGraphics::DrawTextureEx	(	const char *	textureName,
		int	srcX,
		int	srcY,
		int	srcW,
		int	srcH,
		float	destX,
		float	destY,
		float	rotation,
		float	scale,
		unsigned int	tint
	)

pure virtual

Draw a texture with advanced parameters (rotation, scale, source rectangle)

Parameters

textureName	Name of the texture to draw
srcX	X coordinate of source rectangle in texture
srcY	Y coordinate of source rectangle in texture
srcW	Width of source rectangle
srcH	Height of source rectangle
destX	X coordinate of destination position
destY	Y coordinate of destination position
rotation	Rotation angle in degrees
scale	Scale factor (1.0 = original size)
tint	Tint color in 0xAARRGGBB format

Implemented in Graphics::RaylibGraphics.

◆ DrawTexturePro()

virtual void Graphics::IGraphics::DrawTexturePro	(	const char *	textureName,
		int	srcX,
		int	srcY,
		int	srcW,
		int	srcH,
		float	destX,
		float	destY,
		float	destW,
		float	destH,
		unsigned int	tint
	)

pure virtual

Draw a texture with separate width/height scaling (for non-uniform scaling)

Parameters

textureName	Name of the texture to draw
srcX	X coordinate of source rectangle in texture
srcY	Y coordinate of source rectangle in texture
srcW	Width of source rectangle
srcH	Height of source rectangle
destX	X coordinate of destination position
destY	Y coordinate of destination position
destW	Width of destination rectangle
destH	Height of destination rectangle
tint	Tint color in 0xAARRGGBB format

Implemented in Graphics::RaylibGraphics.

◆ EndColorblindCapture()

virtual void Graphics::IGraphics::EndColorblindCapture ( )

pure virtual

End capturing and apply the colorblind filter.

Note: Must be called after all draw calls and before DisplayWindow()

Implemented in Graphics::RaylibGraphics.

◆ GetCharPressed()

virtual int Graphics::IGraphics::GetCharPressed ( ) const

pure virtual

Get the next character from the keyboard input queue.

Returns: Character code (0 if no character in queue)

Implemented in Graphics::RaylibGraphics.

Referenced by UI::RaylibTextInput::HandleCharacterInput().

◆ GetColorblindFilter()

virtual ColorblindFilterType Graphics::IGraphics::GetColorblindFilter ( ) const

pure virtual

Get the current colorblind filter type.

Returns: The currently active colorblind filter

Implemented in Graphics::RaylibGraphics.

◆ GetDeltaTime()

virtual float Graphics::IGraphics::GetDeltaTime ( ) const

pure virtual

Get the time elapsed for the last frame.

Returns: Delta time in seconds (time between current and previous frame)

Implemented in Graphics::RaylibGraphics.

Referenced by UI::RaylibTextInput::HandleBackspace(), and UI::RaylibTextInput::UpdateCursorBlink().

◆ GetFontHeight()

virtual int Graphics::IGraphics::GetFontHeight	(	int	fontHandle,
		int	fontSize
	)

pure virtual

Get the height of a font at a given size.

Parameters

fontHandle	Font handle returned by LoadFont()
fontSize	Size to query

Returns: Height of the font in pixels

Implemented in Graphics::RaylibGraphics.

Referenced by UI::RaylibButton::Render().

◆ GetGamepadAxisMovement()

virtual float Graphics::IGraphics::GetGamepadAxisMovement	(	int	gamepad,
		int	axis
	)		const

pure virtual

Get gamepad axis value (for analog sticks and triggers)

Parameters

gamepad	Gamepad index (0-3)
axis	Axis code (use GAMEPAD_AXIS_* constants)

Returns: Axis value between -1.0 and 1.0 (0.0 for triggers at rest)

Implemented in Graphics::RaylibGraphics.

◆ GetMousePosition()

virtual void Graphics::IGraphics::GetMousePosition	(	float &	x,
		float &	y
	)		const

pure virtual

Get the current mouse cursor position.

Parameters

x	Reference to store the X coordinate
y	Reference to store the Y coordinate

Implemented in Graphics::RaylibGraphics.

Referenced by UI::RaylibButton::IsMouseOver().

◆ GetMouseX()

virtual int Graphics::IGraphics::GetMouseX ( ) const

pure virtual

Get the current X position of the mouse cursor.

Returns: X coordinate in pixels

Implemented in Graphics::RaylibGraphics.

Referenced by UI::RaylibTextInput::IsMouseOver(), UI::RaylibSlider::IsMouseOverHandle(), UI::RaylibSlider::IsMouseOverTrack(), and UI::RaylibSlider::UpdateValueFromMouse().

◆ GetMouseY()

virtual int Graphics::IGraphics::GetMouseY ( ) const

pure virtual

Get the current Y position of the mouse cursor.

Returns: Y coordinate in pixels

Implemented in Graphics::RaylibGraphics.

Referenced by UI::RaylibTextInput::IsMouseOver(), UI::RaylibSlider::IsMouseOverHandle(), and UI::RaylibSlider::IsMouseOverTrack().

◆ GetScreenHeight()

virtual int Graphics::IGraphics::GetScreenHeight ( ) const

pure virtual

Get the screen height (same as window height)

Returns: Height in pixels

Implemented in Graphics::RaylibGraphics.

Referenced by UI::RaylibSlider::ApplyAlignment(), UI::RaylibTextInput::ApplyAlignment(), Game::LoginMenu::Initialize(), Game::RoomListMenu::Initialize(), Game::ServerListMenu::Initialize(), Game::WaitingRoomMenu::Initialize(), and Game::LoginMenu::Render().

◆ GetScreenWidth()

virtual int Graphics::IGraphics::GetScreenWidth ( ) const

pure virtual

Get the screen width (same as window width)

Returns: Width in pixels

Implemented in Graphics::RaylibGraphics.

Referenced by UI::RaylibSlider::ApplyAlignment(), UI::RaylibTextInput::ApplyAlignment(), Game::CreateRoomMenu::Initialize(), Game::WaitingRoomMenu::Initialize(), Game::AccessibilityMenu::Render(), Game::AddServerMenu::Render(), Game::ConnectionMenu::Render(), Game::CreateRoomMenu::Render(), Game::LoginMenu::Render(), Game::RoomListMenu::Render(), Game::ServerListMenu::Render(), Game::SettingsMenu::Render(), and Game::WaitingRoomMenu::Render().

◆ GetTextureSize()

virtual bool Graphics::IGraphics::GetTextureSize	(	const char *	textureName,
		int &	width,
		int &	height
	)		const

pure virtual

Get the dimensions of a loaded texture.

Parameters

textureName	Name of the texture
width	Reference to store the width
height	Reference to store the height

Returns: true if texture exists and dimensions were retrieved, false otherwise

Implemented in Graphics::RaylibGraphics.

◆ GetTime()

virtual float Graphics::IGraphics::GetTime ( ) const

pure virtual

Get elapsed time since initialization.

Returns: Time in seconds since graphics system was initialized

Implemented in Graphics::RaylibGraphics.

◆ GetWindowHeight()

virtual int Graphics::IGraphics::GetWindowHeight ( ) const

pure virtual

Get current window height in pixels.

Returns: Height in pixels.

Implemented in Graphics::RaylibGraphics.

Referenced by UI::RaylibButton::ApplyAlignment(), and Game::KeyBindingsMenu::Initialize().

◆ GetWindowWidth()

virtual int Graphics::IGraphics::GetWindowWidth ( ) const

pure virtual

Get current window width in pixels.

Returns: Width in pixels.

Implemented in Graphics::RaylibGraphics.

Referenced by UI::RaylibButton::ApplyAlignment().

◆ InitAudioDevice()

virtual void Graphics::IGraphics::InitAudioDevice ( )

pure virtual

Initialize the audio device.

Note: Must be called before any audio operations

Implemented in Graphics::RaylibGraphics.

Referenced by Audio::SoundEffectManager::Initialize().

◆ InitWindow()

virtual void Graphics::IGraphics::InitWindow	(	int	width,
		int	height,
		const char *	title
	)

pure virtual

Initialize the graphics window.

Parameters

width	Width of the window in pixels
height	Height of the window in pixels
title	Title displayed on the window

Implemented in Graphics::RaylibGraphics.

◆ IsAudioDeviceReady()

virtual bool Graphics::IGraphics::IsAudioDeviceReady ( ) const

pure virtual

Check if audio device is ready.

Returns: true if audio device is initialized

Implemented in Graphics::RaylibGraphics.

Referenced by Audio::SoundEffectManager::Initialize().

◆ IsGamepadAvailable()

virtual bool Graphics::IGraphics::IsGamepadAvailable ( int gamepad ) const

pure virtual

Check if a gamepad is available/connected.

Parameters

gamepad Gamepad index (0-3, typically 0 for first controller)

Returns: true if the gamepad is connected, false otherwise

Implemented in Graphics::RaylibGraphics.

Referenced by UI::RaylibMenu::HandleKeyboardNavigation().

◆ IsGamepadButtonDown()

virtual bool Graphics::IGraphics::IsGamepadButtonDown	(	int	gamepad,
		int	button
	)		const

pure virtual

Check if a gamepad button is currently held down.

Parameters

gamepad	Gamepad index (0-3)
button	Button code (use GAMEPAD_BUTTON_* constants)

Returns: true if the button is currently down, false otherwise

Implemented in Graphics::RaylibGraphics.

◆ IsGamepadButtonPressed()

virtual bool Graphics::IGraphics::IsGamepadButtonPressed	(	int	gamepad,
		int	button
	)		const

pure virtual

Check if a gamepad button was pressed this frame.

Parameters

gamepad	Gamepad index (0-3)
button	Button code (use GAMEPAD_BUTTON_* constants)

Returns: true if the button was just pressed, false otherwise

Implemented in Graphics::RaylibGraphics.

Referenced by UI::RaylibMenu::HandleKeyboardNavigation().

◆ IsKeyDown()

virtual bool Graphics::IGraphics::IsKeyDown ( int key ) const

pure virtual

Check if a key is currently being held down.

Parameters

key	Key code to check (implementation-specific key constants)

Returns: true if the key is currently down, false otherwise

Implemented in Graphics::RaylibGraphics.

Referenced by UI::RaylibTextInput::HandleBackspace(), UI::RaylibMenu::HandleKeyboardNavigation(), and UI::RaylibTextInput::HandlePaste().

◆ IsKeyPressed()

virtual bool Graphics::IGraphics::IsKeyPressed ( int key ) const

pure virtual

Check if a key was pressed (triggered once when key goes down)

Parameters

key	Key code to check (implementation-specific key constants)

Returns: true if the key was just pressed, false otherwise

Implemented in Graphics::RaylibGraphics.

Referenced by UI::RaylibTextInput::HandleBackspace(), UI::RaylibMenu::HandleKeyboardNavigation(), UI::RaylibTextInput::HandlePaste(), Game::LoginMenu::HandleTabNavigation(), and Game::LoginMenu::Update().

◆ IsKeyReleased()

virtual bool Graphics::IGraphics::IsKeyReleased ( int key ) const

pure virtual

Check if a key was released (triggered once when key goes up)

Parameters

key	Key code to check (implementation-specific key constants)

Returns: true if the key was just released, false otherwise

Implemented in Graphics::RaylibGraphics.

◆ IsMouseButtonDown()

virtual bool Graphics::IGraphics::IsMouseButtonDown ( int button ) const

pure virtual

Check if a mouse button is currently being held down.

Parameters

button Mouse button code (implementation-specific button constants)

Returns: true if the button is currently down, false otherwise

Implemented in Graphics::RaylibGraphics.

Referenced by UI::RaylibButton::Update(), and UI::RaylibSlider::Update().

◆ IsMouseButtonPressed()

virtual bool Graphics::IGraphics::IsMouseButtonPressed ( int button ) const

pure virtual

Check if a mouse button was pressed (triggered once when button goes down)

Parameters

button Mouse button code (implementation-specific button constants)

Returns: true if the button was just pressed, false otherwise

Implemented in Graphics::RaylibGraphics.

Referenced by UI::RaylibTextInput::HandleFocusClick(), and UI::RaylibSlider::Update().

◆ IsSoundPlaying()

virtual bool Graphics::IGraphics::IsSoundPlaying ( const char * soundName ) const

pure virtual

Check if a sound is currently playing.

Parameters

soundName Name of the sound to check

Returns: true if the sound is playing

Implemented in Graphics::RaylibGraphics.

◆ IsWindowOpen()

virtual bool Graphics::IGraphics::IsWindowOpen ( ) const

pure virtual

Check if the window is still open.

Returns: true if the window should remain open, false if close was requested

Implemented in Graphics::RaylibGraphics.

◆ LoadFont()

virtual int Graphics::IGraphics::LoadFont	(	const char *	filepath,
		int	size
	)

pure virtual

Load a font from file.

Parameters

filepath	Path to the font file (e.g., .ttf, .otf)
size	Font size to load

Returns: Font handle (integer ID) for use in drawing operations

Implemented in Graphics::RaylibGraphics.

◆ LoadSound()

virtual bool Graphics::IGraphics::LoadSound	(	const char *	soundName,
		const char *	filepath
	)

pure virtual

Load a sound from file.

Parameters

soundName	Unique name to identify the sound
filepath	Path to the sound file (e.g., .wav, .mp3, .ogg)

Returns: true if sound was loaded successfully, false otherwise

Implemented in Graphics::RaylibGraphics.

Referenced by Audio::SoundEffectManager::LoadSounds().

◆ LoadTexture()

virtual int Graphics::IGraphics::LoadTexture	(	const char *	textureName,
		const char *	filepath
	)

pure virtual

Load a texture from an image file.

Parameters

filepath Path to the image file (e.g., .png, .jpg)

Returns: Texture handle (integer ID) for use in drawing operations

Implemented in Graphics::RaylibGraphics.

◆ PlaySound()

virtual void Graphics::IGraphics::PlaySound ( const char * soundName )

pure virtual

Play a loaded sound.

Parameters

soundName Name of the sound to play

Implemented in Graphics::RaylibGraphics.

Referenced by Audio::SoundEffectManager::PlayClickSound(), Audio::SoundEffectManager::PlayMainMenuOpenSound(), and Audio::SoundEffectManager::PlayRoomMenuOpenSound().

◆ SetClearColor()

virtual void Graphics::IGraphics::SetClearColor ( unsigned int color )

pure virtual

Set the background clear color.

Parameters

color Color in 0xAARRGGBB format (Alpha, Red, Green, Blue)

Implemented in Graphics::RaylibGraphics.

◆ SetColorblindFilter()

virtual void Graphics::IGraphics::SetColorblindFilter ( ColorblindFilterType filter )

pure virtual

Set the colorblind filter type.

Parameters

filter The type of colorblind filter to apply

Implemented in Graphics::RaylibGraphics.

◆ SetSoundVolume()

virtual void Graphics::IGraphics::SetSoundVolume	(	const char *	soundName,
		float	volume
	)

pure virtual

Set volume for a specific sound.

Parameters

soundName	Name of the sound
volume	Volume level (0.0 to 1.0)

Implemented in Graphics::RaylibGraphics.

Referenced by Audio::SoundEffectManager::ApplyVolumeToAllSounds().

◆ SetTargetFPS()

virtual void Graphics::IGraphics::SetTargetFPS ( int fps )

pure virtual

Set the target frames per second for rendering.

Parameters

fps	Target frame rate (e.g., 60 for 60 FPS)

Implemented in Graphics::RaylibGraphics.

◆ SetWindowSize()

virtual void Graphics::IGraphics::SetWindowSize	(	int	width,
		int	height
	)

pure virtual

Resize the window.

Parameters

width	New width in pixels
height	New height in pixels

Implemented in Graphics::RaylibGraphics.

◆ SetWindowTitle()

virtual void Graphics::IGraphics::SetWindowTitle ( const char * title )

pure virtual

Change the window title.

Parameters

title New title for the window

Implemented in Graphics::RaylibGraphics.

◆ StartDrawing()

virtual void Graphics::IGraphics::StartDrawing ( )

pure virtual

Begin drawing frame (setup canvas for drawing operations)

Implemented in Graphics::RaylibGraphics.

◆ TakeScreenshot()

virtual void Graphics::IGraphics::TakeScreenshot ( const char * filepath )

pure virtual

Capture the current screen and save it to a file.

Parameters

filepath Path where the screenshot will be saved

Implemented in Graphics::RaylibGraphics.

◆ ToggleFullScreen()

virtual void Graphics::IGraphics::ToggleFullScreen ( )

pure virtual

Toggle between fullscreen and windowed mode.

Implemented in Graphics::RaylibGraphics.

◆ UnloadFont()

virtual void Graphics::IGraphics::UnloadFont ( int fontHandle )

pure virtual

Unload a previously loaded font.

Parameters

fontHandle Font handle returned by LoadFont()

Implemented in Graphics::RaylibGraphics.

◆ UnloadSound()

virtual void Graphics::IGraphics::UnloadSound ( const char * soundName )

pure virtual

Unload a previously loaded sound.

Parameters

soundName Name of the sound to unload

Implemented in Graphics::RaylibGraphics.

Referenced by Audio::SoundEffectManager::~SoundEffectManager().

◆ UnloadTexture()

virtual void Graphics::IGraphics::UnloadTexture ( const char * textureName )

pure virtual

Unload a previously loaded texture.

Parameters

textureName Name of the texture to unload

Implemented in Graphics::RaylibGraphics.

◆ UpdateTexture()

virtual void Graphics::IGraphics::UpdateTexture	(	const char *	textureName,
		const void *	pixels
	)

pure virtual

Update an existing texture with new pixel data.

Parameters

textureName	Name of the texture to update
pixels	Pointer to new pixel data

Implemented in Graphics::RaylibGraphics.

◆ WindowShouldClose()

virtual bool Graphics::IGraphics::WindowShouldClose ( ) const

pure virtual

Check if the window should close.

Returns: true if the window should close, false otherwise

Implemented in Graphics::RaylibGraphics.

The documentation for this class was generated from the following file:

client/Graphics/IGraphics.hpp

Public Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ ~IGraphics()

Member Function Documentation

◆ BeginColorblindCapture()

◆ ClearWindow()

◆ CloseAudioDevice()

◆ CloseWindow()

◆ CreateTextureFromMemory()

◆ DisplayWindow()

◆ DrawCircle()

◆ DrawCircleFilled()

◆ DrawRect()

◆ DrawRectangle()

◆ DrawRectangleLines()

◆ DrawRectFilled()

◆ DrawText() [1/2]

◆ DrawText() [2/2]

◆ DrawTexture()

◆ DrawTextureEx()

◆ DrawTexturePro()

◆ EndColorblindCapture()

◆ GetCharPressed()

◆ GetColorblindFilter()

◆ GetDeltaTime()

◆ GetFontHeight()

◆ GetGamepadAxisMovement()

◆ GetMousePosition()

◆ GetMouseX()

◆ GetMouseY()

◆ GetScreenHeight()

◆ GetScreenWidth()

◆ GetTextureSize()

◆ GetTime()

◆ GetWindowHeight()

◆ GetWindowWidth()

◆ InitAudioDevice()

◆ InitWindow()

◆ IsAudioDeviceReady()

◆ IsGamepadAvailable()

◆ IsGamepadButtonDown()

◆ IsGamepadButtonPressed()

◆ IsKeyDown()

◆ IsKeyPressed()

◆ IsKeyReleased()

◆ IsMouseButtonDown()

◆ IsMouseButtonPressed()

◆ IsSoundPlaying()

◆ IsWindowOpen()

◆ LoadFont()

◆ LoadSound()

◆ LoadTexture()

◆ PlaySound()

◆ SetClearColor()

◆ SetColorblindFilter()

◆ SetSoundVolume()

◆ SetTargetFPS()

◆ SetWindowSize()

◆ SetWindowTitle()

◆ StartDrawing()

◆ TakeScreenshot()

◆ ToggleFullScreen()

◆ UnloadFont()

◆ UnloadSound()

◆ UnloadTexture()

◆ UpdateTexture()

◆ WindowShouldClose()
