UI::IMenu Class Reference

Abstract interface for UI menus. More...

#include <IMenu.hpp>

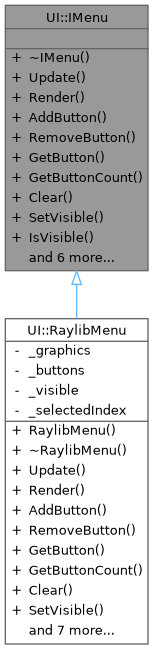

Inheritance diagram for UI::IMenu:

Collaboration diagram for UI::IMenu:

Public Member Functions
virtual	~IMenu ()=default
	Virtual destructor.
virtual void	Update ()=0
	Update all menu elements.
virtual void	Render ()=0
	Render all menu elements.
virtual void	AddButton (std::shared_ptr< IButton > button)=0
	Add a button to the menu.
virtual void	RemoveButton (size_t index)=0
	Remove a button from the menu by index.
virtual std::shared_ptr< IButton >	GetButton (size_t index)=0
	Get a button by index.
virtual size_t	GetButtonCount () const =0
	Get the number of buttons in the menu.
virtual void	Clear ()=0
	Remove all buttons from the menu.
virtual void	SetVisible (bool visible)=0
	Set menu visibility.
virtual bool	IsVisible () const =0
	Check menu visibility.
virtual void	HandleKeyboardNavigation ()=0
	Handle keyboard navigation input.
virtual void	SelectNext ()=0
	Select the next navigable element.
virtual void	SelectPrevious ()=0
	Select the previous navigable element.
virtual void	TriggerSelected ()=0
	Trigger the currently selected element (simulate click).
virtual int	GetSelectedIndex () const =0
	Get the index of the currently selected element.
virtual void	SetSelectedIndex (int index)=0
	Set the selected element by index.

Detailed Description

Abstract interface for UI menus.

A menu is a container of UI elements (currently: buttons only). It is responsible for:

• updating contained elements (input handling)
• rendering contained elements
• controlling visibility

This interface is part of the UI library layer and is designed to be backend-agnostic.

Definition at line 29 of file IMenu.hpp.

Constructor & Destructor Documentation

~IMenu()

virtual UI::IMenu::~IMenu ( )

virtualdefault

Virtual destructor.

Member Function Documentation

AddButton()

virtual void UI::IMenu::AddButton ( std::shared_ptr< IButton >  button )

pure virtual

Add a button to the menu.

Parameters

button

Shared pointer to the button to add.

Implemented in UI::RaylibMenu.

Clear()

virtual void UI::IMenu::Clear ( )

pure virtual

Remove all buttons from the menu.

Implemented in UI::RaylibMenu.

GetButton()

virtual std::shared_ptr< IButton > UI::IMenu::GetButton ( size_t  index )

pure virtual

Get a button by index.

Parameters

index

Index of the button.

Returns

Shared pointer to the button, or nullptr if out of range.

Implemented in UI::RaylibMenu.

GetButtonCount()

virtual size_t UI::IMenu::GetButtonCount ( ) const

pure virtual

Get the number of buttons in the menu.

Returns

Number of buttons.

Implemented in UI::RaylibMenu.

GetSelectedIndex()

virtual int UI::IMenu::GetSelectedIndex ( ) const

pure virtual

Get the index of the currently selected element.

Returns

Selected index, or -1 if none selected.

Implemented in UI::RaylibMenu.

HandleKeyboardNavigation()

virtual void UI::IMenu::HandleKeyboardNavigation ( )

pure virtual

Handle keyboard navigation input.

Note

Call this in Update() to enable Tab/Shift+Tab/Enter navigation.

Implemented in UI::RaylibMenu.

IsVisible()

virtual bool UI::IMenu::IsVisible ( ) const

pure virtual

Check menu visibility.

Returns

true if visible.

Implemented in UI::RaylibMenu.

RemoveButton()

virtual void UI::IMenu::RemoveButton ( size_t  index )

pure virtual

Remove a button from the menu by index.

Parameters

index

Index of the button to remove.

Implemented in UI::RaylibMenu.

Render()

virtual void UI::IMenu::Render ( )

pure virtual

Render all menu elements.

Note

Must be called between the backend BeginDrawing/EndDrawing calls.

Implemented in UI::RaylibMenu.

SelectNext()

virtual void UI::IMenu::SelectNext ( )

pure virtual

Select the next navigable element.

Note

Wraps around to first element when at the end.

Implemented in UI::RaylibMenu.

SelectPrevious()

virtual void UI::IMenu::SelectPrevious ( )

pure virtual

Select the previous navigable element.

Note

Wraps around to last element when at the beginning.

Implemented in UI::RaylibMenu.

SetSelectedIndex()

virtual void UI::IMenu::SetSelectedIndex ( int  index )

pure virtual

Set the selected element by index.

Parameters

index

Index of element to select, or -1 to clear selection.

Implemented in UI::RaylibMenu.

SetVisible()

virtual void UI::IMenu::SetVisible ( bool  visible )

pure virtual

Set menu visibility.

Parameters

visible

true to show the menu, false to hide it.

Implemented in UI::RaylibMenu.

TriggerSelected()

virtual void UI::IMenu::TriggerSelected ( )

pure virtual

Trigger the currently selected element (simulate click).

Implemented in UI::RaylibMenu.

Update()

virtual void UI::IMenu::Update ( )

pure virtual

Update all menu elements.

Note

Should be called once per frame.

Implemented in UI::RaylibMenu.

---

The documentation for this class was generated from the following file:

• client/UI/IMenu.hpp
