Raylib implementation of the IMenu interface. More...

#include <RaylibMenu.hpp>

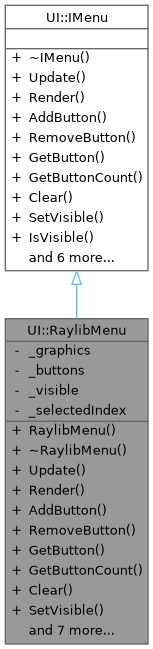

Inheritance diagram for UI::RaylibMenu:

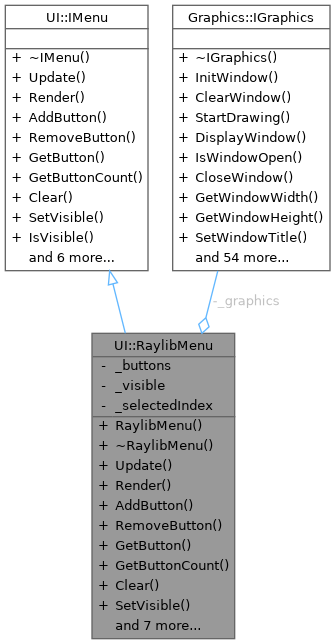

Collaboration diagram for UI::RaylibMenu:

Public Member Functions
	RaylibMenu (Graphics::IGraphics &graphics)
	Construct a new RaylibMenu.

	~RaylibMenu () override=default
	Destroy the RaylibMenu.

void	Update () override
	Update all menu elements.

void	Render () override
	Render all menu elements.

void	AddButton (std::shared_ptr< IButton > button) override
	Add a button to the menu.

void	RemoveButton (size_t index) override
	Remove a button from the menu by index.

std::shared_ptr< IButton >	GetButton (size_t index) override
	Get a button by index.

size_t	GetButtonCount () const override
	Get the number of buttons in the menu.

void	Clear () override
	Remove all buttons from the menu.

void	SetVisible (bool visible) override
	Set menu visibility.

bool	IsVisible () const override
	Check menu visibility.

void	HandleKeyboardNavigation () override
	Handle keyboard navigation input.

void	SelectNext () override
	Select the next navigable element.

void	SelectPrevious () override
	Select the previous navigable element.

void	TriggerSelected () override
	Trigger the currently selected element (simulate click).

int	GetSelectedIndex () const override
	Get the index of the currently selected element.

void	SetSelectedIndex (int index) override
	Set the selected element by index.

Public Member Functions inherited from UI::IMenu
virtual	~IMenu ()=default
	Virtual destructor.

Private Attributes
Graphics::IGraphics &	_graphics
	Graphics dependency.

std::vector< std::shared_ptr< IButton > >	_buttons
	Collection of buttons.

bool	_visible {true}
	Menu visibility state.

int	_selectedIndex {-1}
	Currently selected button index (-1 = none)

Detailed Description

Raylib implementation of the IMenu interface.

Owns a list of buttons and calls Update()/Render() on them. Uses Graphics::IGraphics only as a dependency carrier for potential future menu-level drawing (background/panels) and to keep a consistent creation signature with the UI factory.

Definition at line 25 of file RaylibMenu.hpp.

Constructor & Destructor Documentation

◆ RaylibMenu()

UI::RaylibMenu::RaylibMenu ( Graphics::IGraphics & graphics )

explicit

Construct a new RaylibMenu.

Parameters

graphics Graphics wrapper dependency.

Definition at line 15 of file RaylibMenu.cpp.

◆ ~RaylibMenu()

UI::RaylibMenu::~RaylibMenu ( )

overridedefault

Destroy the RaylibMenu.

Member Function Documentation

◆ AddButton()

void UI::RaylibMenu::AddButton ( std::shared_ptr< IButton > button )

overridevirtual

Add a button to the menu.

Parameters

button Shared pointer to the button to add.

Implements UI::IMenu.

Definition at line 46 of file RaylibMenu.cpp.

References _buttons.

◆ Clear()

void UI::RaylibMenu::Clear ( )

overridevirtual

Remove all buttons from the menu.

Implements UI::IMenu.

Definition at line 75 of file RaylibMenu.cpp.

References _buttons, and _selectedIndex.

◆ GetButton()

std::shared_ptr< IButton > UI::RaylibMenu::GetButton ( size_t index )

overridevirtual

Get a button by index.

Parameters

index Index of the button.

Returns: Shared pointer to the button, or nullptr if out of range.

Implements UI::IMenu.

Definition at line 64 of file RaylibMenu.cpp.

References _buttons.

◆ GetButtonCount()

size_t UI::RaylibMenu::GetButtonCount ( ) const

overridevirtual

Get the number of buttons in the menu.

Returns: Number of buttons.

Implements UI::IMenu.

Definition at line 71 of file RaylibMenu.cpp.

References _buttons.

◆ GetSelectedIndex()

int UI::RaylibMenu::GetSelectedIndex ( ) const

overridevirtual

Get the index of the currently selected element.

Returns: Selected index, or -1 if none selected.

Implements UI::IMenu.

Definition at line 213 of file RaylibMenu.cpp.

References _selectedIndex.

◆ HandleKeyboardNavigation()

void UI::RaylibMenu::HandleKeyboardNavigation ( )

overridevirtual

Handle keyboard navigation input.

Note: Call this in Update() to enable Tab/Shift+Tab/Enter navigation.

Implements UI::IMenu.

Definition at line 92 of file RaylibMenu.cpp.

References _buttons, _graphics, Input::BindingToGamepadButton(), Input::KeyBindings::getInstance(), Graphics::IGraphics::IsGamepadAvailable(), Input::IsGamepadBinding(), Graphics::IGraphics::IsGamepadButtonPressed(), Graphics::IGraphics::IsKeyDown(), Graphics::IGraphics::IsKeyPressed(), Input::MENU_CONFIRM, Input::MENU_NEXT, Input::MENU_PREVIOUS, SelectNext(), SelectPrevious(), and TriggerSelected().

Referenced by Update().

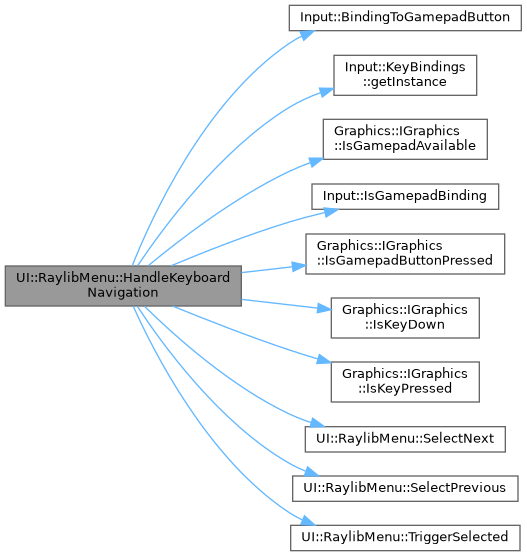

Here is the call graph for this function:

◆ IsVisible()

bool UI::RaylibMenu::IsVisible ( ) const

overridevirtual

Check menu visibility.

Returns: true if visible.

Implements UI::IMenu.

Definition at line 88 of file RaylibMenu.cpp.

References _visible.

◆ RemoveButton()

void UI::RaylibMenu::RemoveButton ( size_t index )

overridevirtual

Remove a button from the menu by index.

Parameters

index Index of the button to remove.

Implements UI::IMenu.

Definition at line 52 of file RaylibMenu.cpp.

References _buttons, and _selectedIndex.

◆ Render()

void UI::RaylibMenu::Render ( )

overridevirtual

Render all menu elements.

Note: Must be called between the backend BeginDrawing/EndDrawing calls.

Implements UI::IMenu.

Definition at line 33 of file RaylibMenu.cpp.

References _buttons, and _visible.

◆ SelectNext()

void UI::RaylibMenu::SelectNext ( )

overridevirtual

Select the next navigable element.

Note: Wraps around to first element when at the end.

Implements UI::IMenu.

Definition at line 144 of file RaylibMenu.cpp.

References _buttons, and _selectedIndex.

Referenced by HandleKeyboardNavigation().

◆ SelectPrevious()

void UI::RaylibMenu::SelectPrevious ( )

overridevirtual

Select the previous navigable element.

Note: Wraps around to last element when at the beginning.

Implements UI::IMenu.

Definition at line 172 of file RaylibMenu.cpp.

References _buttons, and _selectedIndex.

Referenced by HandleKeyboardNavigation().

◆ SetSelectedIndex()

void UI::RaylibMenu::SetSelectedIndex ( int index )

overridevirtual

Set the selected element by index.

Parameters

index Index of element to select, or -1 to clear selection.

Implements UI::IMenu.

Definition at line 217 of file RaylibMenu.cpp.

References _buttons, and _selectedIndex.

Referenced by SetVisible().

◆ SetVisible()

void UI::RaylibMenu::SetVisible ( bool visible )

overridevirtual

Set menu visibility.

Parameters

visible true to show the menu, false to hide it.

Implements UI::IMenu.

Definition at line 80 of file RaylibMenu.cpp.

References _visible, and SetSelectedIndex().

Here is the call graph for this function:

◆ TriggerSelected()

void UI::RaylibMenu::TriggerSelected ( )

overridevirtual

Trigger the currently selected element (simulate click).

Implements UI::IMenu.

Definition at line 205 of file RaylibMenu.cpp.

References _buttons, and _selectedIndex.

Referenced by HandleKeyboardNavigation().

◆ Update()

void UI::RaylibMenu::Update ( )

overridevirtual

Update all menu elements.

Note: Should be called once per frame.

Implements UI::IMenu.

Definition at line 17 of file RaylibMenu.cpp.

References _buttons, _visible, and HandleKeyboardNavigation().

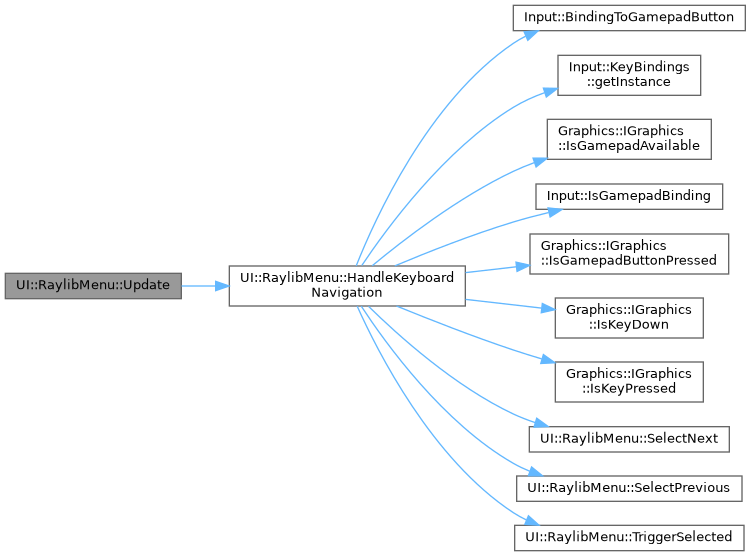

Here is the call graph for this function:

Member Data Documentation

◆ _buttons

std::vector<std::shared_ptr<IButton> > UI::RaylibMenu::_buttons

private

Collection of buttons.

Definition at line 85 of file RaylibMenu.hpp.

Referenced by AddButton(), Clear(), GetButton(), GetButtonCount(), HandleKeyboardNavigation(), RemoveButton(), Render(), SelectNext(), SelectPrevious(), SetSelectedIndex(), TriggerSelected(), and Update().

◆ _graphics

Graphics::IGraphics& UI::RaylibMenu::_graphics

private

Graphics dependency.

Definition at line 84 of file RaylibMenu.hpp.

Referenced by HandleKeyboardNavigation().

◆ _selectedIndex

int UI::RaylibMenu::_selectedIndex {-1}

private

Currently selected button index (-1 = none)

Definition at line 87 of file RaylibMenu.hpp.

Referenced by Clear(), GetSelectedIndex(), RemoveButton(), SelectNext(), SelectPrevious(), SetSelectedIndex(), and TriggerSelected().

◆ _visible

bool UI::RaylibMenu::_visible {true}

private

Menu visibility state.

Definition at line 86 of file RaylibMenu.hpp.

Referenced by IsVisible(), Render(), SetVisible(), and Update().

The documentation for this class was generated from the following files:

client/UI/Raylib/RaylibMenu.hpp
client/UI/Raylib/RaylibMenu.cpp
