R-Type: Game::BaseMenu Class Reference

R-Type

Distributed multiplayer game engine in C++

Loading...

Searching...

No Matches

Base class for all menu implementations. More...

#include <BaseMenu.hpp>

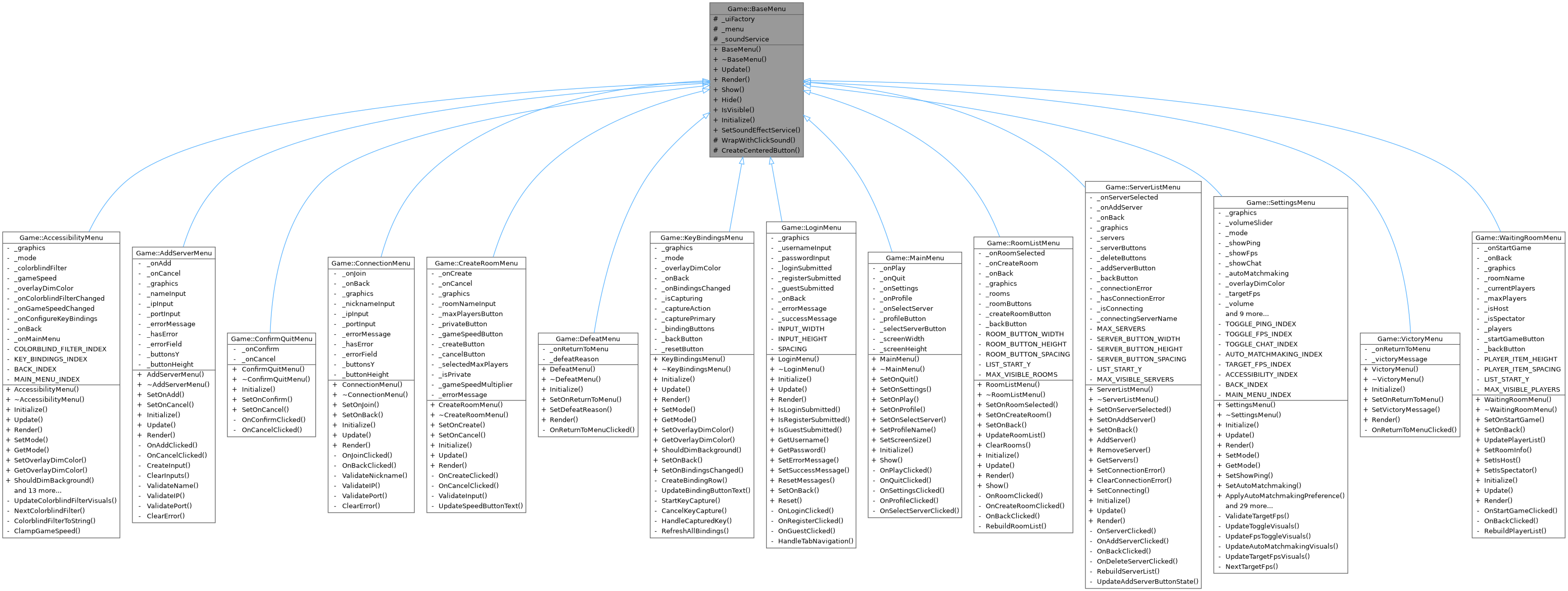

Inheritance diagram for Game::BaseMenu:

Inheritance graph

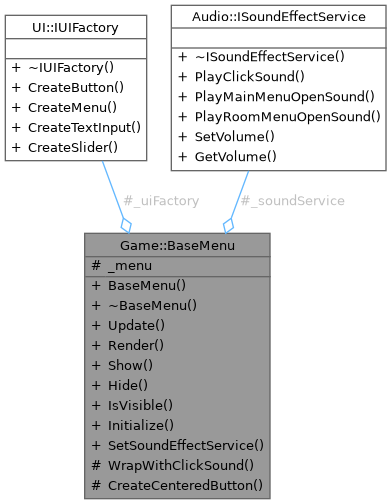

Collaboration diagram for Game::BaseMenu:

Collaboration graph

Public Member Functions
	BaseMenu (UI::IUIFactory &uiFactory)
	Constructor with UI factory reference.

virtual	~BaseMenu ()=default
	Virtual destructor.

virtual void	Update ()
	Update menu state (should be called every frame).

virtual void	Render ()
	Render menu (should be called every frame).

virtual void	Show ()
	Show the menu.

virtual void	Hide ()
	Hide the menu.

virtual bool	IsVisible () const
	Check if menu is currently visible.

virtual void	Initialize ()=0
	Initialize menu (must be implemented by derived classes).

void	SetSoundEffectService (Audio::ISoundEffectService *soundService)
	Set the sound effect service for playing UI sounds.

Protected Member Functions
std::function< void()>	WrapWithClickSound (std::function< void()> callback)
	Wrap a callback to play click sound before executing.

std::shared_ptr< UI::IButton >	CreateCenteredButton (const char *label, float offsetY, float width, float height, unsigned int backgroundColor, unsigned int hoverColor, std::function< void()> callback)
	Create a button with standard styling and positioning.

Protected Attributes
UI::IUIFactory &	_uiFactory

std::shared_ptr< UI::IMenu >	_menu

Audio::ISoundEffectService *	_soundService {nullptr}

Detailed Description

Base class for all menu implementations.

Provides common functionality for menu management including:

Menu lifecycle (Show/Hide/IsVisible)
Button creation with consistent styling
Update and Render delegation to UI components

Definition at line 26 of file BaseMenu.hpp.

Constructor & Destructor Documentation

◆ BaseMenu()

Game::BaseMenu::BaseMenu ( UI::IUIFactory & uiFactory )

explicit

Constructor with UI factory reference.

Parameters

uiFactory Factory for creating UI elements.

Definition at line 12 of file BaseMenu.cpp.

References _menu, _uiFactory, and UI::IUIFactory::CreateMenu().

Here is the call graph for this function:

◆ ~BaseMenu()

virtual Game::BaseMenu::~BaseMenu ( )

virtualdefault

Virtual destructor.

Member Function Documentation

◆ CreateCenteredButton()

std::shared_ptr< UI::IButton > Game::BaseMenu::CreateCenteredButton	(	const char *	label,
		float	offsetY,
		float	width,
		float	height,
		unsigned int	backgroundColor,
		unsigned int	hoverColor,
		std::function< void()>	callback
	)

protected

Create a button with standard styling and positioning.

Parameters

label	Button text label.
offsetY	Vertical offset from center.
width	Button width.
height	Button height.
backgroundColor	Button background color (RGBA).
hoverColor	Button hover color (RGBA).
callback	Function to call when button is clicked.

Returns: Shared pointer to created button.

Definition at line 60 of file BaseMenu.cpp.

References _uiFactory, UI::CENTER_BOTH, UI::IUIFactory::CreateButton(), and WrapWithClickSound().

Referenced by Game::AccessibilityMenu::Initialize(), Game::ConfirmQuitMenu::Initialize(), Game::DefeatMenu::Initialize(), Game::KeyBindingsMenu::Initialize(), Game::MainMenu::Initialize(), Game::SettingsMenu::Initialize(), and Game::VictoryMenu::Initialize().

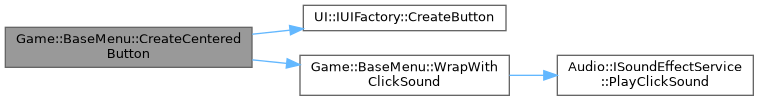

Here is the call graph for this function:

◆ Hide()

void Game::BaseMenu::Hide ( )

virtual

Hide the menu.

Definition at line 34 of file BaseMenu.cpp.

References _menu.

Referenced by Game::AccessibilityMenu::Initialize(), Game::SettingsMenu::Initialize(), and Game::ConfirmQuitMenu::OnCancelClicked().

◆ Initialize()

virtual void Game::BaseMenu::Initialize ( )

pure virtual

Initialize menu (must be implemented by derived classes).

Implemented in Game::AccessibilityMenu, Game::AddServerMenu, Game::ConfirmQuitMenu, Game::ConnectionMenu, Game::CreateRoomMenu, Game::DefeatMenu, Game::KeyBindingsMenu, Game::LoginMenu, Game::MainMenu, Game::RoomListMenu, Game::ServerListMenu, Game::SettingsMenu, Game::VictoryMenu, and Game::WaitingRoomMenu.

◆ IsVisible()

bool Game::BaseMenu::IsVisible ( ) const

virtual

Check if menu is currently visible.

Returns: true if visible, false otherwise.

Definition at line 40 of file BaseMenu.cpp.

References _menu.

Referenced by Game::DefeatMenu::Render(), Game::VictoryMenu::Render(), Game::AccessibilityMenu::ShouldDimBackground(), and Game::SettingsMenu::ShouldDimBackground().

◆ Render()

void Game::BaseMenu::Render ( )

virtual

Render menu (should be called every frame).

Reimplemented in Game::AccessibilityMenu, Game::AddServerMenu, Game::ConnectionMenu, Game::CreateRoomMenu, Game::DefeatMenu, Game::KeyBindingsMenu, Game::LoginMenu, Game::RoomListMenu, Game::ServerListMenu, Game::SettingsMenu, Game::VictoryMenu, and Game::WaitingRoomMenu.

Definition at line 22 of file BaseMenu.cpp.

References _menu.

Referenced by Game::AccessibilityMenu::Render(), Game::AddServerMenu::Render(), Game::ConnectionMenu::Render(), Game::CreateRoomMenu::Render(), Game::DefeatMenu::Render(), Game::LoginMenu::Render(), Game::RoomListMenu::Render(), Game::ServerListMenu::Render(), Game::SettingsMenu::Render(), Game::VictoryMenu::Render(), and Game::WaitingRoomMenu::Render().

◆ SetSoundEffectService()

void Game::BaseMenu::SetSoundEffectService ( Audio::ISoundEffectService * soundService )

Set the sound effect service for playing UI sounds.

Parameters

soundService Pointer to sound effect service (can be nullptr to disable sounds).

Definition at line 44 of file BaseMenu.cpp.

References _soundService.

◆ Show()

void Game::BaseMenu::Show ( )

virtual

Show the menu.

Reimplemented in Game::MainMenu, and Game::RoomListMenu.

Definition at line 28 of file BaseMenu.cpp.

References _menu.

Referenced by Game::MainMenu::Show(), and Game::RoomListMenu::Show().

◆ Update()

void Game::BaseMenu::Update ( )

virtual

Update menu state (should be called every frame).

Reimplemented in Game::AccessibilityMenu, Game::AddServerMenu, Game::ConnectionMenu, Game::CreateRoomMenu, Game::KeyBindingsMenu, Game::LoginMenu, Game::RoomListMenu, Game::ServerListMenu, Game::SettingsMenu, and Game::WaitingRoomMenu.

Definition at line 16 of file BaseMenu.cpp.

References _menu.

Referenced by Game::AccessibilityMenu::Update(), Game::AddServerMenu::Update(), Game::ConnectionMenu::Update(), Game::CreateRoomMenu::Update(), Game::LoginMenu::Update(), Game::RoomListMenu::Update(), Game::ServerListMenu::Update(), Game::SettingsMenu::Update(), and Game::WaitingRoomMenu::Update().

◆ WrapWithClickSound()

std::function< void()> Game::BaseMenu::WrapWithClickSound ( std::function< void()> callback )

protected

Wrap a callback to play click sound before executing.

Parameters

callback Original callback function.

Returns: Wrapped callback that plays click sound.

Definition at line 48 of file BaseMenu.cpp.

References _soundService, and Audio::ISoundEffectService::PlayClickSound().

Referenced by CreateCenteredButton(), Game::AddServerMenu::Initialize(), Game::ConnectionMenu::Initialize(), Game::CreateRoomMenu::Initialize(), Game::DefeatMenu::Initialize(), Game::LoginMenu::Initialize(), Game::MainMenu::Initialize(), Game::RoomListMenu::Initialize(), Game::ServerListMenu::Initialize(), Game::VictoryMenu::Initialize(), Game::WaitingRoomMenu::Initialize(), Game::RoomListMenu::RebuildRoomList(), Game::ServerListMenu::RebuildServerList(), and Game::ServerListMenu::UpdateAddServerButtonState().

Here is the call graph for this function:

Member Data Documentation

◆ _menu

std::shared_ptr<UI::IMenu> Game::BaseMenu::_menu

protected

Definition at line 101 of file BaseMenu.hpp.

Referenced by BaseMenu(), Hide(), Game::AccessibilityMenu::Initialize(), Game::AddServerMenu::Initialize(), Game::ConfirmQuitMenu::Initialize(), Game::ConnectionMenu::Initialize(), Game::CreateRoomMenu::Initialize(), Game::DefeatMenu::Initialize(), Game::KeyBindingsMenu::Initialize(), Game::LoginMenu::Initialize(), Game::MainMenu::Initialize(), Game::RoomListMenu::Initialize(), Game::ServerListMenu::Initialize(), Game::SettingsMenu::Initialize(), Game::VictoryMenu::Initialize(), Game::WaitingRoomMenu::Initialize(), IsVisible(), Game::WaitingRoomMenu::RebuildPlayerList(), Game::RoomListMenu::RebuildRoomList(), Game::ServerListMenu::RebuildServerList(), Render(), Game::AccessibilityMenu::Render(), Game::AddServerMenu::Render(), Game::ConnectionMenu::Render(), Game::CreateRoomMenu::Render(), Game::RoomListMenu::Render(), Game::ServerListMenu::Render(), Game::SettingsMenu::Render(), Game::WaitingRoomMenu::Render(), Show(), Update(), Game::CreateRoomMenu::Update(), Game::RoomListMenu::Update(), Game::SettingsMenu::Update(), Game::WaitingRoomMenu::Update(), Game::SettingsMenu::UpdateAutoMatchmakingVisuals(), Game::SettingsMenu::UpdateChatToggleVisuals(), Game::AccessibilityMenu::UpdateColorblindFilterVisuals(), Game::SettingsMenu::UpdateFpsToggleVisuals(), Game::SettingsMenu::UpdateTargetFpsVisuals(), and Game::SettingsMenu::UpdateToggleVisuals().

◆ _soundService

Audio::ISoundEffectService* Game::BaseMenu::_soundService {nullptr}

protected

Definition at line 102 of file BaseMenu.hpp.

Referenced by SetSoundEffectService(), Game::MainMenu::Show(), Game::RoomListMenu::Show(), and WrapWithClickSound().

◆ _uiFactory

UI::IUIFactory& Game::BaseMenu::_uiFactory

protected

Definition at line 100 of file BaseMenu.hpp.

Referenced by BaseMenu(), CreateCenteredButton(), Game::AddServerMenu::CreateInput(), Game::AddServerMenu::Initialize(), Game::ConnectionMenu::Initialize(), Game::CreateRoomMenu::Initialize(), Game::KeyBindingsMenu::Initialize(), Game::LoginMenu::Initialize(), Game::MainMenu::Initialize(), Game::RoomListMenu::Initialize(), Game::ServerListMenu::Initialize(), Game::WaitingRoomMenu::Initialize(), Game::RoomListMenu::RebuildRoomList(), Game::ServerListMenu::RebuildServerList(), and Game::SettingsMenu::SettingsMenu().

The documentation for this class was generated from the following files:

client/Menu/BaseMenu.hpp
client/Menu/BaseMenu.cpp
