Connection menu for entering player nickname, server IP, and port. More...

#include <ConnectionMenu.hpp>

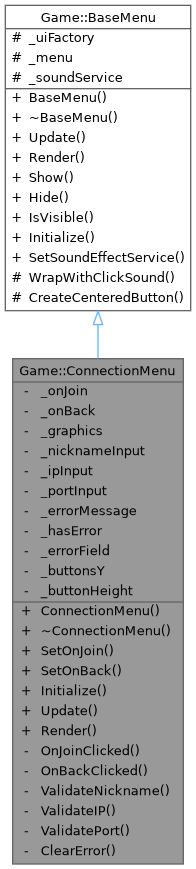

Inheritance diagram for Game::ConnectionMenu:

Collaboration diagram for Game::ConnectionMenu:

Public Member Functions
	ConnectionMenu (UI::IUIFactory &uiFactory, Graphics::IGraphics &graphics)

	~ConnectionMenu () override=default

void	SetOnJoin (std::function< void(const std::string &, const std::string &, const std::string &)> onJoin)
	Set callback triggered when the Join button is clicked.

void	SetOnBack (std::function< void()> onBack)
	Set callback triggered when the Back button is clicked.

void	Initialize () override
	Initialize menu (must be implemented by derived classes).

void	Update () override
	Update menu state (should be called every frame).

void	Render () override
	Render menu (should be called every frame).

Public Member Functions inherited from Game::BaseMenu
	BaseMenu (UI::IUIFactory &uiFactory)
	Constructor with UI factory reference.

virtual	~BaseMenu ()=default
	Virtual destructor.

virtual void	Show ()
	Show the menu.

virtual void	Hide ()
	Hide the menu.

virtual bool	IsVisible () const
	Check if menu is currently visible.

void	SetSoundEffectService (Audio::ISoundEffectService *soundService)
	Set the sound effect service for playing UI sounds.

Private Types
enum class	ErrorField { NONE , NICKNAME , IP , PORT }

Private Member Functions
void	OnJoinClicked ()

void	OnBackClicked ()

bool	ValidateNickname (const std::string &nickname, std::string &errorMsg)

bool	ValidateIP (const std::string &ip, std::string &errorMsg)

bool	ValidatePort (const std::string &port, std::string &errorMsg)

void	ClearError ()

Private Attributes
std::function< void(const std::string &, const std::string &, const std::string &)>	_onJoin {}

std::function< void()>	_onBack {}

Graphics::IGraphics &	_graphics

std::unique_ptr< UI::ITextInput >	_nicknameInput

std::unique_ptr< UI::ITextInput >	_ipInput

std::unique_ptr< UI::ITextInput >	_portInput

std::string	_errorMessage

bool	_hasError {false}

ErrorField	_errorField {ErrorField::NONE}

float	_buttonsY {0.0f}

float	_buttonHeight {0.0f}

Additional Inherited Members
Protected Member Functions inherited from Game::BaseMenu
std::function< void()>	WrapWithClickSound (std::function< void()> callback)
	Wrap a callback to play click sound before executing.

std::shared_ptr< UI::IButton >	CreateCenteredButton (const char *label, float offsetY, float width, float height, unsigned int backgroundColor, unsigned int hoverColor, std::function< void()> callback)
	Create a button with standard styling and positioning.

Protected Attributes inherited from Game::BaseMenu
UI::IUIFactory &	_uiFactory

std::shared_ptr< UI::IMenu >	_menu

Audio::ISoundEffectService *	_soundService {nullptr}

Detailed Description

Connection menu for entering player nickname, server IP, and port.

This menu is displayed when the user clicks "Play" and allows them to:

Enter their nickname
Enter server IP address
Enter server port
Join the game (triggers callback with entered values)
Go back to main menu

Definition at line 29 of file ConnectionMenu.hpp.

Member Enumeration Documentation

◆ ErrorField

enum class Game::ConnectionMenu::ErrorField

strongprivate

Enumerator
NONE
NICKNAME
IP
PORT

Definition at line 73 of file ConnectionMenu.hpp.

Constructor & Destructor Documentation

◆ ConnectionMenu()

Game::ConnectionMenu::ConnectionMenu	(	UI::IUIFactory &	uiFactory,
		Graphics::IGraphics &	graphics
	)

explicit

Definition at line 14 of file ConnectionMenu.cpp.

◆ ~ConnectionMenu()

Game::ConnectionMenu::~ConnectionMenu ( )

overridedefault

Member Function Documentation

◆ ClearError()

void Game::ConnectionMenu::ClearError ( )

private

Definition at line 333 of file ConnectionMenu.cpp.

References _errorField, _errorMessage, _hasError, _ipInput, _nicknameInput, _portInput, and NONE.

Referenced by Initialize().

◆ Initialize()

void Game::ConnectionMenu::Initialize ( )

overridevirtual

Initialize menu (must be implemented by derived classes).

Implements Game::BaseMenu.

Definition at line 26 of file ConnectionMenu.cpp.

References _buttonHeight, _buttonsY, _ipInput, Game::BaseMenu::_menu, _nicknameInput, _portInput, Game::BaseMenu::_uiFactory, UI::CENTER_HORIZONTAL, ClearError(), UI::IUIFactory::CreateButton(), UI::IUIFactory::CreateTextInput(), LOG_INFO, OnBackClicked(), OnJoinClicked(), and Game::BaseMenu::WrapWithClickSound().

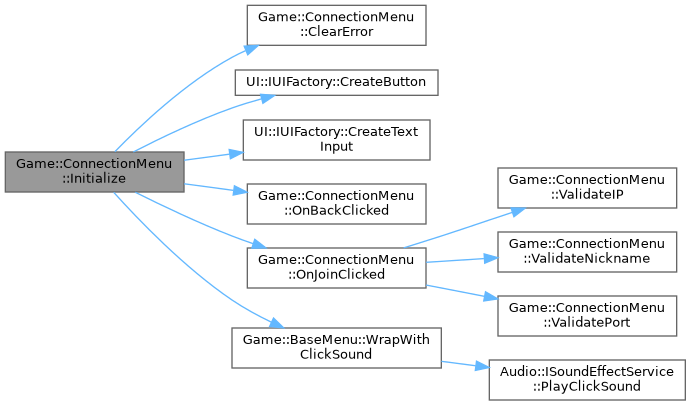

Here is the call graph for this function:

◆ OnBackClicked()

void Game::ConnectionMenu::OnBackClicked ( )

private

Definition at line 266 of file ConnectionMenu.cpp.

References _onBack, and LOG_INFO.

Referenced by Initialize().

◆ OnJoinClicked()

void Game::ConnectionMenu::OnJoinClicked ( )

private

Definition at line 201 of file ConnectionMenu.cpp.

References _errorField, _errorMessage, _hasError, _ipInput, _nicknameInput, _onJoin, _portInput, IP, LOG_INFO, NICKNAME, PORT, ValidateIP(), ValidateNickname(), and ValidatePort().

Referenced by Initialize().

Here is the call graph for this function:

◆ Render()

void Game::ConnectionMenu::Render ( )

overridevirtual

Render menu (should be called every frame).

Reimplemented from Game::BaseMenu.

Definition at line 164 of file ConnectionMenu.cpp.

References _buttonHeight, _buttonsY, _errorMessage, _graphics, _hasError, _ipInput, Game::BaseMenu::_menu, _nicknameInput, _portInput, Graphics::IGraphics::DrawText(), Graphics::IGraphics::GetScreenWidth(), and Game::BaseMenu::Render().

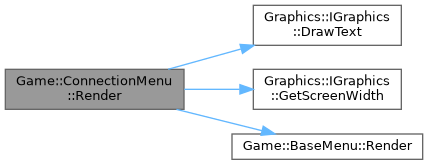

Here is the call graph for this function:

◆ SetOnBack()

void Game::ConnectionMenu::SetOnBack ( std::function< void()> onBack )

Set callback triggered when the Back button is clicked.

Definition at line 22 of file ConnectionMenu.cpp.

References _onBack.

◆ SetOnJoin()

void Game::ConnectionMenu::SetOnJoin ( std::function< void(const std::string &, const std::string &, const std::string &)> onJoin )

Set callback triggered when the Join button is clicked.

Parameters

onJoin Callback receiving (nickname, ip, port) as parameters.

Definition at line 17 of file ConnectionMenu.cpp.

References _onJoin.

◆ Update()

void Game::ConnectionMenu::Update ( )

overridevirtual

Update menu state (should be called every frame).

Reimplemented from Game::BaseMenu.

Definition at line 151 of file ConnectionMenu.cpp.

References _ipInput, _nicknameInput, _portInput, and Game::BaseMenu::Update().

Here is the call graph for this function:

◆ ValidateIP()

bool Game::ConnectionMenu::ValidateIP	(	const std::string &	ip,
		std::string &	errorMsg
	)

private

Definition at line 285 of file ConnectionMenu.cpp.

Referenced by OnJoinClicked().

◆ ValidateNickname()

bool Game::ConnectionMenu::ValidateNickname	(	const std::string &	nickname,
		std::string &	errorMsg
	)

private

Definition at line 273 of file ConnectionMenu.cpp.

Referenced by OnJoinClicked().

◆ ValidatePort()

bool Game::ConnectionMenu::ValidatePort	(	const std::string &	port,
		std::string &	errorMsg
	)

private

Definition at line 304 of file ConnectionMenu.cpp.

Referenced by OnJoinClicked().

Member Data Documentation

◆ _buttonHeight

float Game::ConnectionMenu::_buttonHeight {0.0f}

private

Definition at line 78 of file ConnectionMenu.hpp.

Referenced by Initialize(), and Render().

◆ _buttonsY

float Game::ConnectionMenu::_buttonsY {0.0f}

private

Definition at line 77 of file ConnectionMenu.hpp.

Referenced by Initialize(), and Render().

◆ _errorField

ErrorField Game::ConnectionMenu::_errorField {ErrorField::NONE}

private

Definition at line 74 of file ConnectionMenu.hpp.

Referenced by ClearError(), and OnJoinClicked().

◆ _errorMessage

std::string Game::ConnectionMenu::_errorMessage

private

Definition at line 71 of file ConnectionMenu.hpp.

Referenced by ClearError(), OnJoinClicked(), and Render().

◆ _graphics

Graphics::IGraphics& Game::ConnectionMenu::_graphics

private

Definition at line 63 of file ConnectionMenu.hpp.

Referenced by Render().

◆ _hasError

bool Game::ConnectionMenu::_hasError {false}

private

Definition at line 72 of file ConnectionMenu.hpp.

Referenced by ClearError(), OnJoinClicked(), and Render().

◆ _ipInput

std::unique_ptr<UI::ITextInput> Game::ConnectionMenu::_ipInput

private

Definition at line 67 of file ConnectionMenu.hpp.

Referenced by ClearError(), Initialize(), OnJoinClicked(), Render(), and Update().

◆ _nicknameInput

std::unique_ptr<UI::ITextInput> Game::ConnectionMenu::_nicknameInput

private

Definition at line 66 of file ConnectionMenu.hpp.

Referenced by ClearError(), Initialize(), OnJoinClicked(), Render(), and Update().

◆ _onBack

std::function<void()> Game::ConnectionMenu::_onBack {}

private

Definition at line 61 of file ConnectionMenu.hpp.

Referenced by OnBackClicked(), and SetOnBack().

◆ _onJoin

std::function<void(const std::string &, const std::string &, const std::string &)> Game::ConnectionMenu::_onJoin {}

private

Definition at line 60 of file ConnectionMenu.hpp.

Referenced by OnJoinClicked(), and SetOnJoin().

◆ _portInput

std::unique_ptr<UI::ITextInput> Game::ConnectionMenu::_portInput

private

Definition at line 68 of file ConnectionMenu.hpp.

Referenced by ClearError(), Initialize(), OnJoinClicked(), Render(), and Update().

The documentation for this class was generated from the following files:

client/Menu/ConnectionMenu.hpp
client/Menu/ConnectionMenu.cpp
