Deterministic fixed-timestep game loop. More...

#include <ServerLoop.hpp>

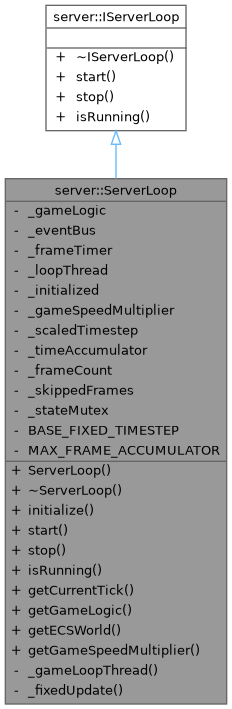

Inheritance diagram for server::ServerLoop:

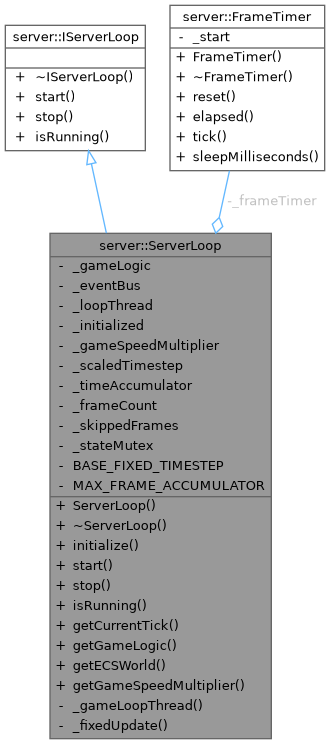

Collaboration diagram for server::ServerLoop:

Public Member Functions
	ServerLoop (std::unique_ptr< IGameLogic > gameLogic, std::shared_ptr< EventBus > eventBus, float gameSpeedMultiplier=1.0f)
	Constructor.

	~ServerLoop () override
	Destructor - ensures clean shutdown.

bool	initialize ()
	Initialize the game loop.

void	start () override
	Start the game loop (IServerLoop implementation) Runs in background thread.

void	stop () override
	Stop the game loop (IServerLoop implementation)

bool	isRunning () const override
	Check if game loop is running (IServerLoop implementation)

uint32_t	getCurrentTick () const
	Get the current server tick.

IGameLogic &	getGameLogic ()
	Get reference to game logic.

std::shared_ptr< ecs::wrapper::ECSWorld >	getECSWorld ()
	Get reference to ECS world from GameLogic.

float	getGameSpeedMultiplier () const
	Get the game speed multiplier.

Public Member Functions inherited from server::IServerLoop
virtual	~IServerLoop ()=default

Private Member Functions
void	_gameLoopThread (std::stop_token stopToken)
	Main game loop function (runs in thread)

void	_fixedUpdate ()
	Process a single fixed timestep update.

Private Attributes
std::unique_ptr< IGameLogic >	_gameLogic

std::shared_ptr< EventBus >	_eventBus

FrameTimer	_frameTimer

std::jthread	_loopThread

std::atomic< bool >	_initialized {false}

float	_gameSpeedMultiplier {1.0f}

float	_scaledTimestep

double	_timeAccumulator {0.0}

uint32_t	_frameCount {0}

uint32_t	_skippedFrames {0}

std::mutex	_stateMutex

Static Private Attributes
static constexpr float	BASE_FIXED_TIMESTEP = 1.0f / 60.0f

static constexpr float	MAX_FRAME_ACCUMULATOR = 0.2f

Detailed Description

Deterministic fixed-timestep game loop.

Ensures all clients see the same game state by running at a fixed 60 Hz with deterministic updates. Implements time accumulator pattern. Implements IServerLoop interface.

Features:

Fixed 60 Hz update rate (1/60 = 0.0166667 seconds per frame)
Deterministic state progression
Separate update/render timing
Real-time network synchronization hooks
Thread-safe operation
Frame skipping if lag exceeds threshold

Definition at line 39 of file ServerLoop.hpp.

Constructor & Destructor Documentation

◆ ServerLoop()

server::ServerLoop::ServerLoop	(	std::unique_ptr< IGameLogic >	gameLogic,
		std::shared_ptr< EventBus >	eventBus,
		float	gameSpeedMultiplier = `1.0f`
	)

explicit

Constructor.

Parameters

gameLogic	The game logic to run
eventBus	Event bus for publishing game events
gameSpeedMultiplier	Game speed multiplier (0.25 to 1.0, default 1.0)

Definition at line 15 of file ServerLoop.cpp.

◆ ~ServerLoop()

server::ServerLoop::~ServerLoop ( )

override

Destructor - ensures clean shutdown.

Definition at line 22 of file ServerLoop.cpp.

References stop().

Here is the call graph for this function:

Member Function Documentation

◆ _fixedUpdate()

void server::ServerLoop::_fixedUpdate ( )

private

Process a single fixed timestep update.

Definition at line 130 of file ServerLoop.cpp.

References _frameCount, _gameLogic, _scaledTimestep, _stateMutex, and LOG_ERROR.

Referenced by _gameLoopThread().

◆ _gameLoopThread()

void server::ServerLoop::_gameLoopThread ( std::stop_token stopToken )

private

Main game loop function (runs in thread)

Parameters

stopToken Token to check for stop requests

Definition at line 94 of file ServerLoop.cpp.

References _fixedUpdate(), _frameCount, _frameTimer, _skippedFrames, _timeAccumulator, BASE_FIXED_TIMESTEP, LOG_DEBUG, LOG_ERROR, LOG_WARNING, server::FrameTimer::sleepMilliseconds(), and server::FrameTimer::tick().

Referenced by start().

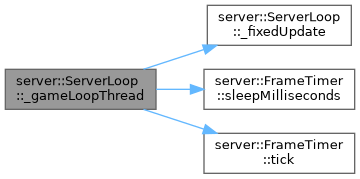

Here is the call graph for this function:

◆ getCurrentTick()

uint32_t server::ServerLoop::getCurrentTick ( ) const

Get the current server tick.

Returns: uint32_t Current tick number

Definition at line 83 of file ServerLoop.cpp.

References _frameCount.

Referenced by Server::_broadcastGameState(), Server::_sendGameStartToRoom(), and Server::_sendGameStartToSpectator().

◆ getECSWorld()

std::shared_ptr< ecs::wrapper::ECSWorld > server::ServerLoop::getECSWorld ( )

Get reference to ECS world from GameLogic.

Returns: ECSWorld shared pointer

Definition at line 87 of file ServerLoop.cpp.

References _gameLogic.

Referenced by Server::_broadcastGameState(), Server::_processPendingDestructions(), Server::_sendGameStartToRoom(), and Server::_sendGameStartToSpectator().

◆ getGameLogic()

IGameLogic & server::ServerLoop::getGameLogic ( )

inline

Get reference to game logic.

Returns: IGameLogic reference

Definition at line 88 of file ServerLoop.hpp.

References _gameLogic.

◆ getGameSpeedMultiplier()

float server::ServerLoop::getGameSpeedMultiplier ( ) const

inline

Get the game speed multiplier.

Returns: Game speed multiplier (0.25 to 1.0)

Definition at line 100 of file ServerLoop.hpp.

References _gameSpeedMultiplier.

◆ initialize()

bool server::ServerLoop::initialize ( )

Initialize the game loop.

Returns: true if successful

Definition at line 26 of file ServerLoop.cpp.

References _gameLogic, _gameSpeedMultiplier, _initialized, _scaledTimestep, BASE_FIXED_TIMESTEP, LOG_ERROR, and LOG_INFO.

◆ isRunning()

bool server::ServerLoop::isRunning ( ) const

inlineoverridevirtual

Check if game loop is running (IServerLoop implementation)

Returns: true if running

Implements server::IServerLoop.

Definition at line 76 of file ServerLoop.hpp.

References _loopThread.

◆ start()

void server::ServerLoop::start ( )

overridevirtual

Start the game loop (IServerLoop implementation) Runs in background thread.

Implements server::IServerLoop.

Definition at line 55 of file ServerLoop.cpp.

References _frameCount, _frameTimer, _gameLoopThread(), _loopThread, _skippedFrames, _timeAccumulator, LOG_ERROR, LOG_INFO, LOG_WARNING, and server::FrameTimer::reset().

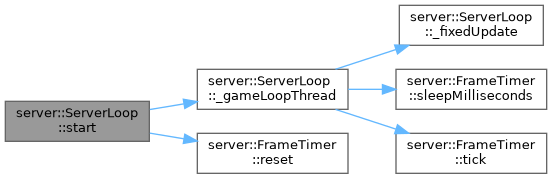

Here is the call graph for this function:

◆ stop()

void server::ServerLoop::stop ( )

overridevirtual

Stop the game loop (IServerLoop implementation)

Implements server::IServerLoop.

Definition at line 78 of file ServerLoop.cpp.

References _loopThread, and LOG_INFO.

Referenced by ~ServerLoop().

Member Data Documentation

◆ _eventBus

std::shared_ptr<EventBus> server::ServerLoop::_eventBus

private

Definition at line 116 of file ServerLoop.hpp.

◆ _frameCount

uint32_t server::ServerLoop::_frameCount {0}

private

Definition at line 131 of file ServerLoop.hpp.

Referenced by _fixedUpdate(), _gameLoopThread(), getCurrentTick(), and start().

◆ _frameTimer

FrameTimer server::ServerLoop::_frameTimer

private

Definition at line 117 of file ServerLoop.hpp.

Referenced by _gameLoopThread(), and start().

◆ _gameLogic

std::unique_ptr<IGameLogic> server::ServerLoop::_gameLogic

private

Definition at line 115 of file ServerLoop.hpp.

Referenced by _fixedUpdate(), getECSWorld(), getGameLogic(), and initialize().

◆ _gameSpeedMultiplier

float server::ServerLoop::_gameSpeedMultiplier {1.0f}

private

Definition at line 127 of file ServerLoop.hpp.

Referenced by getGameSpeedMultiplier(), and initialize().

◆ _initialized

std::atomic<bool> server::ServerLoop::_initialized {false}

private

Definition at line 121 of file ServerLoop.hpp.

Referenced by initialize().

◆ _loopThread

std::jthread server::ServerLoop::_loopThread

private

Definition at line 120 of file ServerLoop.hpp.

Referenced by isRunning(), start(), and stop().

◆ _scaledTimestep

float server::ServerLoop::_scaledTimestep

private

Initial value:

{

BASE_FIXED_TIMESTEP}

server::ServerLoop::BASE_FIXED_TIMESTEP

static constexpr float BASE_FIXED_TIMESTEP

Definition ServerLoop.hpp:124

Definition at line 128 of file ServerLoop.hpp.

Referenced by _fixedUpdate(), and initialize().

◆ _skippedFrames

uint32_t server::ServerLoop::_skippedFrames {0}

private

Definition at line 132 of file ServerLoop.hpp.

Referenced by _gameLoopThread(), and start().

◆ _stateMutex

std::mutex server::ServerLoop::_stateMutex

mutableprivate

Definition at line 135 of file ServerLoop.hpp.

Referenced by _fixedUpdate().

◆ _timeAccumulator

double server::ServerLoop::_timeAccumulator {0.0}

private

Definition at line 130 of file ServerLoop.hpp.

Referenced by _gameLoopThread(), and start().

◆ BASE_FIXED_TIMESTEP

constexpr float server::ServerLoop::BASE_FIXED_TIMESTEP = 1.0f / 60.0f

staticconstexprprivate

Definition at line 124 of file ServerLoop.hpp.

Referenced by _gameLoopThread(), and initialize().

◆ MAX_FRAME_ACCUMULATOR

constexpr float server::ServerLoop::MAX_FRAME_ACCUMULATOR = 0.2f

staticconstexprprivate

Definition at line 125 of file ServerLoop.hpp.

The documentation for this class was generated from the following files:

server/Core/ServerLoop/ServerLoop.hpp
server/Core/ServerLoop/ServerLoop.cpp
