High-level ECS manager providing clean server-side API. More...

#include <ECSWorld.hpp>

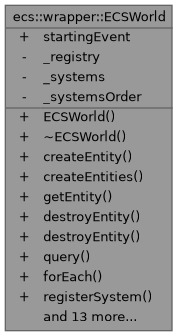

Collaboration diagram for ecs::wrapper::ECSWorld:

Public Member Functions
	ECSWorld ()
	Construct a new ECSWorld.

	~ECSWorld ()
	Destroy the ECSWorld and cleanup resources.

Entity	createEntity ()
	Create a new entity.

std::vector< Entity >	createEntities (size_t count)
	Create multiple entities at once.

Entity	getEntity (Address address)
	Get an entity wrapper from an address.

void	destroyEntity (const Entity &entity)
	Destroy an entity and remove it from the world.

void	destroyEntity (Address address)
	Destroy an entity by its address.

template<typename... Components>
std::vector< Entity >	query ()
	Get all entities with specific components.

template<typename... Components>
void	forEach (std::function< void(Entity, Components &...)> callback)
	Iterate over entities with specific components.

template<typename T >
void	registerSystem (const std::string &name, std::unique_ptr< T > system)
	Register a system with the world.

template<typename T , typename... Args>
void	createSystem (const std::string &name, Args &&...args)
	Create and register a system.

template<typename T , typename... Args>
void	createSystem (SystemId id, Args &&...args)
	Create and register a system using an enum identifier.

template<typename T >
T *	getSystem (const std::string &name)
	Get a registered system by name.

template<typename T >
T *	getSystem (SystemId id)
	Get a registered system by enum identifier.

void	removeSystem (const std::string &name)
	Remove a system from the world.

void	removeSystem (SystemId id)
	Remove a system using its enum identifier.

void	update (float deltaTime)
	Update all registered systems.

bool	updateSystem (const std::string &name, float deltaTime)
	Update a specific system by name.

bool	updateSystem (SystemId id, float deltaTime)
	Update a specific system by enum identifier.

Registry &	getRegistry ()
	Get direct access to the underlying registry.

const Registry &	getRegistry () const
	Get const access to the underlying registry.

void	clear ()
	Clear all entities from the world.

size_t	getSystemCount () const
	Get the number of systems registered.

Public Attributes
bool	startingEvent = false
	World state (for accessing from Lua scripts)d 0 = not running, 1 = starting event, 2 = running.

Private Attributes
std::unique_ptr< Registry >	_registry

std::unordered_map< std::string, std::unique_ptr< ISystem > >	_systems

std::vector< std::string >	_systemsOrder

Detailed Description

High-level ECS manager providing clean server-side API.

Manages the ECS registry, entities, and systems with a clean interface. Designed for server-side game logic with emphasis on code clarity.

Examples: /home/ubuntu/actions-runner/_work/rtype/rtype/server/Scripting/LuaBindings/ComponentBindingHelper.hpp.

Definition at line 122 of file ECSWorld.hpp.

Constructor & Destructor Documentation

◆ ECSWorld()

ecs::wrapper::ECSWorld::ECSWorld ( )

Construct a new ECSWorld.

Definition at line 63 of file ECSWorld.cpp.

◆ ~ECSWorld()

ecs::wrapper::ECSWorld::~ECSWorld ( )

default

Destroy the ECSWorld and cleanup resources.

Member Function Documentation

◆ clear()

void ecs::wrapper::ECSWorld::clear ( )

Clear all entities from the world.

Systems are preserved.

Definition at line 154 of file ECSWorld.cpp.

References _registry, and ecs::Registry::view().

Here is the call graph for this function:

◆ createEntities()

std::vector< Entity > ecs::wrapper::ECSWorld::createEntities ( size_t count )

Create multiple entities at once.

Parameters

count Number of entities to create

Returns: std::vector<Entity> Vector of created entities

Definition at line 72 of file ECSWorld.cpp.

References createEntity().

Here is the call graph for this function:

◆ createEntity()

Entity ecs::wrapper::ECSWorld::createEntity ( )

Create a new entity.

Returns: Entity Wrapper around the new entity

Definition at line 67 of file ECSWorld.cpp.

References _registry.

Referenced by scripting::bindings::bindServerGame(), scripting::bindings::bindWorld(), and createEntities().

◆ createSystem() [1/2]

template<typename T , typename... Args>

void ecs::wrapper::ECSWorld::createSystem	(	const std::string &	name,
		Args &&...	args
	)

Create and register a system.

Template Parameters

T	System type (must inherit from ISystem)
Args	Constructor argument types

Parameters

name	Unique name for the system
args	Constructor arguments

◆ createSystem() [2/2]

template<typename T , typename... Args>

void ecs::wrapper::ECSWorld::createSystem	(	SystemId	id,
		Args &&...	args
	)

Create and register a system using an enum identifier.

Template Parameters

T	System type (must inherit from ISystem)
Args	Constructor argument types

Parameters

id	Enum identifier for the system
args	Constructor arguments

◆ destroyEntity() [1/2]

void ecs::wrapper::ECSWorld::destroyEntity ( Address address )

Destroy an entity by its address.

Parameters

address The entity's address

Definition at line 93 of file ECSWorld.cpp.

References _registry.

◆ destroyEntity() [2/2]

void ecs::wrapper::ECSWorld::destroyEntity ( const Entity & entity )

Destroy an entity and remove it from the world.

Parameters

entity The entity to destroy

Definition at line 87 of file ECSWorld.cpp.

References _registry, ecs::wrapper::Entity::getAddress(), and ecs::wrapper::Entity::isValid().

Referenced by scripting::bindings::bindEntity(), and scripting::bindings::bindWorld().

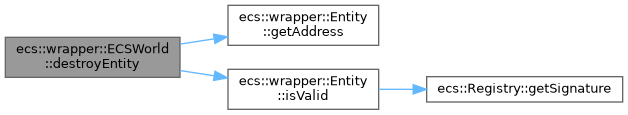

Here is the call graph for this function:

◆ forEach()

template<typename... Components>

void ecs::wrapper::ECSWorld::forEach ( std::function< void(Entity, Components &...)> callback )

Iterate over entities with specific components.

Template Parameters

Components Component types required

Parameters

callback Function to call for each matching entity

world.forEach<Transform, Velocity>([](Entity entity, Transform& t, Velocity& v) {
    t.position.x += v.x;
});

◆ getEntity()

Entity ecs::wrapper::ECSWorld::getEntity ( Address address )

Get an entity wrapper from an address.

Parameters

address The entity's address

Returns: Entity Wrapper around the entity

Definition at line 83 of file ECSWorld.cpp.

References _registry.

Referenced by scripting::bindings::bindWorld(), server::GameStateSerializer::serializeEntity(), and scripting::LuaSystemAdapter::update().

◆ getRegistry() [1/2]

Registry & ecs::wrapper::ECSWorld::getRegistry ( )

Get direct access to the underlying registry.

Warning: Use with caution. Prefer using the wrapper API.

Returns: Registry& Reference to the registry

Definition at line 146 of file ECSWorld.cpp.

References _registry.

◆ getRegistry() [2/2]

const Registry & ecs::wrapper::ECSWorld::getRegistry ( ) const

Get const access to the underlying registry.

Returns: const Registry& Const reference to the registry

Definition at line 150 of file ECSWorld.cpp.

References _registry.

◆ getSystem() [1/2]

template<typename T >

T * ecs::wrapper::ECSWorld::getSystem ( const std::string & name )

Get a registered system by name.

Template Parameters

T	System type

Parameters

name	The system's name

Returns: T* Pointer to the system, or nullptr if not found

◆ getSystem() [2/2]

template<typename T >

T * ecs::wrapper::ECSWorld::getSystem ( SystemId id )

Get a registered system by enum identifier.

Template Parameters

T	System type

Parameters

id	Enum identifier for the system

Returns: T* Pointer to the system, or nullptr if not found

◆ getSystemCount()

size_t ecs::wrapper::ECSWorld::getSystemCount ( ) const

Get the number of systems registered.

Returns: size_t Number of systems

Definition at line 162 of file ECSWorld.cpp.

References _systems.

◆ query()

template<typename... Components>

std::vector< Entity > ecs::wrapper::ECSWorld::query ( )

Get all entities with specific components.

Template Parameters

Components Component types to query

Returns: std::vector<Entity> Entities matching the query

Referenced by server::GameStateSerializer::createFullSnapshot().

◆ registerSystem()

template<typename T >

void ecs::wrapper::ECSWorld::registerSystem	(	const std::string &	name,
		std::unique_ptr< T >	system
	)

Register a system with the world.

Template Parameters

T	System type (must inherit from ISystem)

Parameters

name	Unique name for the system
system	Unique pointer to the system

◆ removeSystem() [1/2]

void ecs::wrapper::ECSWorld::removeSystem ( const std::string & name )

Remove a system from the world.

Parameters

name	The system's name

Definition at line 97 of file ECSWorld.cpp.

References _systems, and _systemsOrder.

Referenced by removeSystem().

◆ removeSystem() [2/2]

void ecs::wrapper::ECSWorld::removeSystem ( SystemId id )

Remove a system using its enum identifier.

Parameters

id	Enum identifier for the system

Definition at line 110 of file ECSWorld.cpp.

References removeSystem(), and ecs::wrapper::systemIdToName().

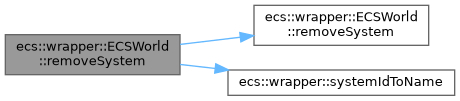

Here is the call graph for this function:

◆ update()

void ecs::wrapper::ECSWorld::update ( float deltaTime )

Update all registered systems.

Systems are updated in registration order.

Parameters

deltaTime Time elapsed since last update (in seconds)

Definition at line 114 of file ECSWorld.cpp.

References _registry, _systems, _systemsOrder, and LOG_ERROR.

◆ updateSystem() [1/2]

bool ecs::wrapper::ECSWorld::updateSystem	(	const std::string &	name,
		float	deltaTime
	)

Update a specific system by name.

Parameters

name	The system's name
deltaTime	Time elapsed since last update (in seconds)

Returns: bool true if system was found and updated, false otherwise

Definition at line 127 of file ECSWorld.cpp.

References _registry, _systems, and LOG_ERROR.

Referenced by ecs::wrapper::SystemScheduler::update(), and updateSystem().

◆ updateSystem() [2/2]

bool ecs::wrapper::ECSWorld::updateSystem	(	SystemId	id,
		float	deltaTime
	)

Update a specific system by enum identifier.

Parameters

id	Enum identifier for the system
deltaTime	Time elapsed since last update (in seconds)

Returns: bool true if system was found and updated, false otherwise

Definition at line 142 of file ECSWorld.cpp.

References ecs::wrapper::systemIdToName(), and updateSystem().

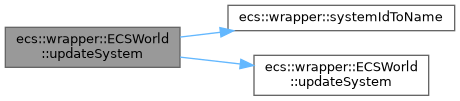

Here is the call graph for this function:

Member Data Documentation

◆ _registry

std::unique_ptr<Registry> ecs::wrapper::ECSWorld::_registry

private

Definition at line 124 of file ECSWorld.hpp.

Referenced by clear(), createEntity(), destroyEntity(), destroyEntity(), getEntity(), getRegistry(), getRegistry(), update(), and updateSystem().

◆ _systems

std::unordered_map<std::string, std::unique_ptr<ISystem> > ecs::wrapper::ECSWorld::_systems

private

Definition at line 125 of file ECSWorld.hpp.

Referenced by getSystemCount(), removeSystem(), update(), and updateSystem().

◆ _systemsOrder

std::vector<std::string> ecs::wrapper::ECSWorld::_systemsOrder

private

Definition at line 126 of file ECSWorld.hpp.

Referenced by removeSystem(), and update().

◆ startingEvent

bool ecs::wrapper::ECSWorld::startingEvent = false

World state (for accessing from Lua scripts)d 0 = not running, 1 = starting event, 2 = running.

Definition at line 320 of file ECSWorld.hpp.

The documentation for this class was generated from the following files:

common/ECSWrapper/ECSWorld.hpp
common/ECSWrapper/ECSWorld.cpp

Public Member Functions

Public Attributes

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ECSWorld()

◆ ~ECSWorld()

Member Function Documentation

◆ clear()

◆ createEntities()

◆ createEntity()

◆ createSystem() [1/2]

◆ createSystem() [2/2]

◆ destroyEntity() [1/2]

◆ destroyEntity() [2/2]

◆ forEach()

◆ getEntity()

◆ getRegistry() [1/2]

◆ getRegistry() [2/2]

◆ getSystem() [1/2]

◆ getSystem() [2/2]

◆ getSystemCount()

◆ query()

◆ registerSystem()

◆ removeSystem() [1/2]

◆ removeSystem() [2/2]

◆ update()

◆ updateSystem() [1/2]

◆ updateSystem() [2/2]

Member Data Documentation

◆ _registry

◆ _systems

◆ _systemsOrder

◆ startingEvent
