server::GameStateSerializer Class Reference

Serializes and deserializes game state for network transmission. More...

#include <GameStateSerializer.hpp>

Collaboration diagram for server::GameStateSerializer:

Static Public Member Functions
static GameStateSnapshot	createFullSnapshot (ecs::wrapper::ECSWorld &world, uint32_t serverTick)
	Create a full game state snapshot.
static GameStateSnapshot	createDeltaUpdate (ecs::wrapper::ECSWorld &world, uint32_t serverTick, const GameStateSnapshot &lastSnapshot)
	Create a delta update (changed entities only)
static EntitySnapshot	serializeEntity (ecs::wrapper::ECSWorld &world, uint32_t entityId)
	Serialize entity to network format.

Detailed Description

Serializes and deserializes game state for network transmission.

Responsibilities:

• Create full game state snapshots
• Generate delta updates (only changed entities)
• Serialize entity components to network format
• Ensure deterministic entity ordering

Network Efficiency:

• Full snapshots sent on connect or major state changes
• Delta updates sent every frame (only changed entities)
• Position/health deltas with compression

Definition at line 61 of file GameStateSerializer.hpp.

Member Function Documentation

createDeltaUpdate()

GameStateSnapshot server::GameStateSerializer::createDeltaUpdate ( ecs::wrapper::ECSWorld &  world, uint32_t  serverTick, const GameStateSnapshot &  lastSnapshot  )

static

Create a delta update (changed entities only)

Parameters

world	ECS world wrapper
serverTick	Current game tick
lastSnapshot	Previous snapshot for comparison

Returns

Delta snapshot with only changed entities

Definition at line 45 of file GameStateSerializer.cpp.

References createFullSnapshot().

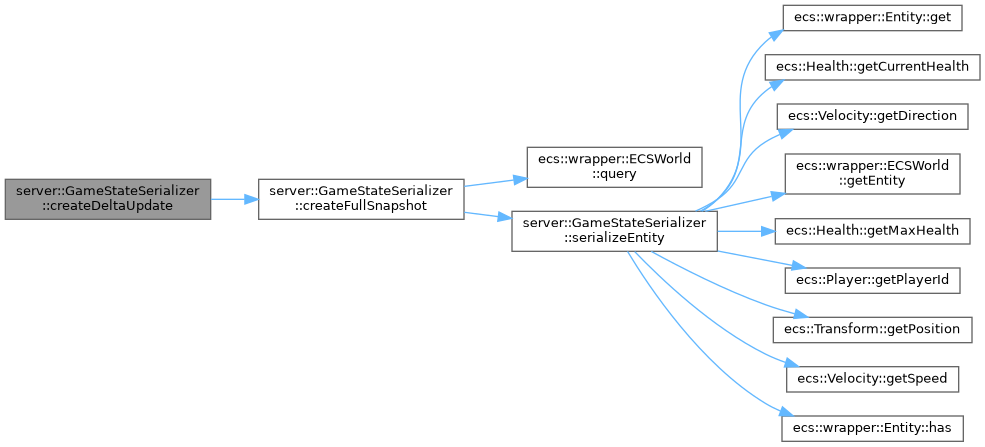

Here is the call graph for this function:

createFullSnapshot()

GameStateSnapshot server::GameStateSerializer::createFullSnapshot ( ecs::wrapper::ECSWorld &  world, uint32_t  serverTick  )

static

Create a full game state snapshot.

Parameters

world	ECS world wrapper
serverTick	Current game tick

Returns

Complete game state snapshot

Definition at line 22 of file GameStateSerializer.cpp.

References server::GameStateSnapshot::activePlayerCount, server::GameStateSnapshot::entities, ecs::wrapper::ECSWorld::query(), serializeEntity(), and server::GameStateSnapshot::serverTick.

Referenced by createDeltaUpdate().

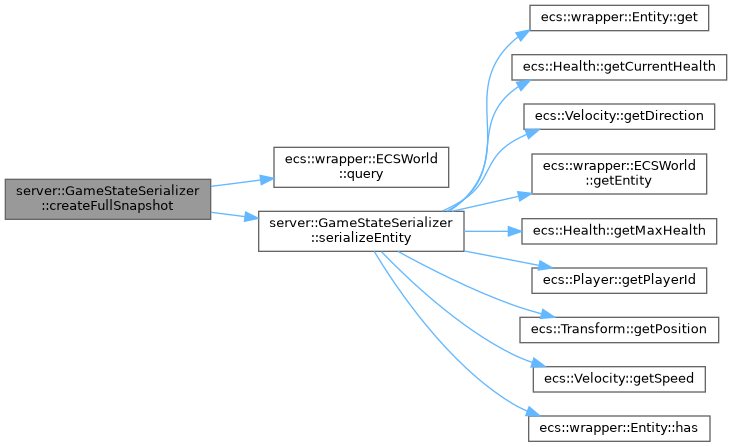

Here is the call graph for this function:

serializeEntity()

EntitySnapshot server::GameStateSerializer::serializeEntity ( ecs::wrapper::ECSWorld &  world, uint32_t  entityId  )

static

Serialize entity to network format.

Parameters

world	ECS world wrapper
entityId	Entity address

Returns

Serialized entity snapshot

Definition at line 57 of file GameStateSerializer.cpp.

References server::EntitySnapshot::currentHealth, server::EntitySnapshot::entityId, ecs::wrapper::Entity::get(), ecs::Health::getCurrentHealth(), ecs::Velocity::getDirection(), ecs::wrapper::ECSWorld::getEntity(), ecs::Health::getMaxHealth(), ecs::Player::getPlayerId(), ecs::Transform::getPosition(), ecs::Velocity::getSpeed(), ecs::wrapper::Entity::has(), server::EntitySnapshot::isAlive, LOG_ERROR, server::EntitySnapshot::maxHealth, server::EntitySnapshot::playerId, server::EntitySnapshot::posX, server::EntitySnapshot::posY, server::EntitySnapshot::velX, server::EntitySnapshot::velY, ecs::Transform::Vector2::x, and ecs::Transform::Vector2::y.

Referenced by createFullSnapshot().

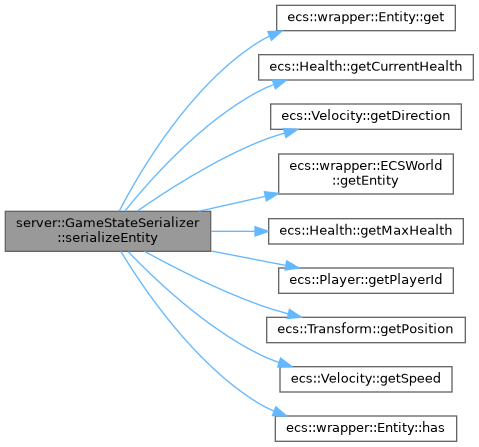

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• server/Game/Logic/GameStateSerializer.hpp
• server/Game/Logic/GameStateSerializer.cpp
