ecs::Collider Class Reference

Component for collision detection and physics interactions. More...

#include <Collider.hpp>

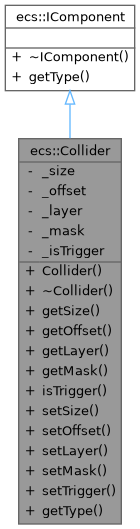

Inheritance diagram for ecs::Collider:

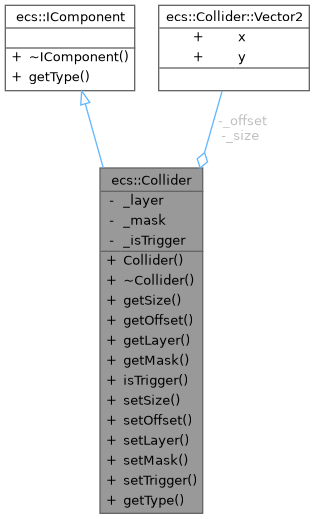

Collaboration diagram for ecs::Collider:

Classes
struct	Vector2
	2D vector for size and offset. More...

Public Member Functions
	Collider (float sizeX, float sizeY, float offsetX, float offsetY, std::uint32_t layer, std::uint32_t mask, bool isTrigger)
	Constructor with full collision parameters.
	~Collider () override=default
Vector2	getSize () const
	Get collision box size.
Vector2	getOffset () const
	Get position offset.
std::uint32_t	getLayer () const
	Get collision layer.
std::uint32_t	getMask () const
	Get collision mask.
bool	isTrigger () const
	Check if this is a trigger.
void	setSize (float sizeX, float sizeY)
	Set collision box size.
void	setOffset (float offsetX, float offsetY)
	Set position offset.
void	setLayer (std::uint32_t layer)
	Set collision layer.
void	setMask (std::uint32_t mask)
	Set collision mask.
void	setTrigger (bool isTrigger)
	Set trigger status.
ComponentType	getType () const override
	Get the component type ID.
Public Member Functions inherited from ecs::IComponent
virtual	~IComponent ()=default
	Virtual destructor.

Private Attributes
Vector2	_size
	Collision box dimensions (width, height)
Vector2	_offset
	Offset from entity position.
std::uint32_t	_layer
	Collision layer identifier.
std::uint32_t	_mask
	Bitmask of interactable layers.
bool	_isTrigger
	True=trigger zone, false=solid collision.

Detailed Description

Component for collision detection and physics interactions.

Defines a bounding box for collision detection with layer-based filtering. Supports both solid collisions and trigger zones.

Definition at line 21 of file Collider.hpp.

Constructor & Destructor Documentation

Collider()

ecs::Collider::Collider ( float  sizeX, float  sizeY, float  offsetX, float  offsetY, std::uint32_t  layer, std::uint32_t  mask, bool  isTrigger  )

inline

Constructor with full collision parameters.

Parameters

sizeX	Width of collision box
sizeY	Height of collision box
offsetX	X offset from entity position
offsetY	Y offset from entity position
layer	Collision layer (for filtering)
mask	Bitmask of layers this collider can interact with
isTrigger	True for trigger zones (no physics), false for solid

Definition at line 42 of file Collider.hpp.

~Collider()

ecs::Collider::~Collider ( )

overridedefault

Member Function Documentation

getLayer()

std::uint32_t ecs::Collider::getLayer ( ) const

inline

Get collision layer.

Returns

std::uint32_t Layer identifier.

Definition at line 67 of file Collider.hpp.

References _layer.

getMask()

std::uint32_t ecs::Collider::getMask ( ) const

inline

Get collision mask.

Returns

std::uint32_t Bitmask of interactable layers.

Definition at line 73 of file Collider.hpp.

References _mask.

getOffset()

Vector2 ecs::Collider::getOffset ( ) const

inline

Get position offset.

Returns

Vector2 Offset from entity position.

Definition at line 61 of file Collider.hpp.

References _offset.

getSize()

Vector2 ecs::Collider::getSize ( ) const

inline

Get collision box size.

Returns

Vector2 Width and height of the collider.

Definition at line 55 of file Collider.hpp.

References _size.

getType()

ComponentType ecs::Collider::getType ( ) const

inlineoverridevirtual

Get the component type ID.

Returns

ComponentType Unique ID for Collider component.

Implements ecs::IComponent.

Definition at line 123 of file Collider.hpp.

isTrigger()

bool ecs::Collider::isTrigger ( ) const

inline

Check if this is a trigger.

Returns

bool True if trigger zone, false if solid.

Definition at line 79 of file Collider.hpp.

References _isTrigger.

Referenced by setTrigger().

setLayer()

void ecs::Collider::setLayer ( std::uint32_t  layer )

inline

Set collision layer.

Parameters

layer

New layer identifier

Definition at line 105 of file Collider.hpp.

References _layer.

setMask()

void ecs::Collider::setMask ( std::uint32_t  mask )

inline

Set collision mask.

Parameters

mask	New interaction bitmask

Definition at line 111 of file Collider.hpp.

References _mask.

setOffset()

void ecs::Collider::setOffset ( float  offsetX, float  offsetY  )

inline

Set position offset.

Parameters

offsetX	New X offset
offsetY	New Y offset

Definition at line 96 of file Collider.hpp.

References _offset, ecs::Collider::Vector2::x, and ecs::Collider::Vector2::y.

setSize()

void ecs::Collider::setSize ( float  sizeX, float  sizeY  )

inline

Set collision box size.

Parameters

sizeX	New width
sizeY	New height

Definition at line 86 of file Collider.hpp.

References _size, ecs::Collider::Vector2::x, and ecs::Collider::Vector2::y.

setTrigger()

void ecs::Collider::setTrigger ( bool  isTrigger )

inline

Set trigger status.

Parameters

isTrigger

True for trigger, false for solid

Definition at line 117 of file Collider.hpp.

References _isTrigger, and isTrigger().

Here is the call graph for this function:

Member Data Documentation

_isTrigger

bool ecs::Collider::_isTrigger

private

True=trigger zone, false=solid collision.

Definition at line 130 of file Collider.hpp.

Referenced by isTrigger(), and setTrigger().

_layer

std::uint32_t ecs::Collider::_layer

private

Collision layer identifier.

Definition at line 128 of file Collider.hpp.

Referenced by getLayer(), and setLayer().

_mask

std::uint32_t ecs::Collider::_mask

private

Bitmask of interactable layers.

Definition at line 129 of file Collider.hpp.

Referenced by getMask(), and setMask().

_offset

Vector2 ecs::Collider::_offset

private

Offset from entity position.

Definition at line 127 of file Collider.hpp.

Referenced by getOffset(), and setOffset().

_size

Vector2 ecs::Collider::_size

private

Collision box dimensions (width, height)

Definition at line 126 of file Collider.hpp.

Referenced by getSize(), and setSize().

---

The documentation for this class was generated from the following file:

• common/ECS/Components/Collider.hpp
