Advanced scheduler for controlling system execution order and dependencies. More...

#include <SystemScheduler.hpp>

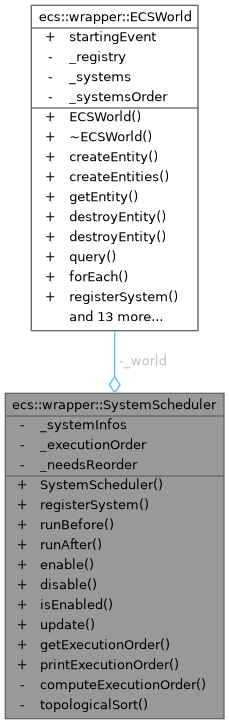

Collaboration diagram for ecs::wrapper::SystemScheduler:

Classes
struct	SystemInfo
	Information about a scheduled system. More...

Public Member Functions
	SystemScheduler (ECSWorld *world)
	Construct a SystemScheduler.

SystemScheduler &	registerSystem (const std::string &name, int priority=0)
	Register a system with the scheduler.

SystemScheduler &	runBefore (const std::string &systemName, const std::string &afterSystemName)
	Specify that a system must run before another.

SystemScheduler &	runAfter (const std::string &systemName, const std::string &beforeSystemName)
	Specify that a system must run after another.

void	enable (const std::string &name)
	Enable a system.

void	disable (const std::string &name)
	Disable a system.

bool	isEnabled (const std::string &name) const
	Check if a system is enabled.

void	update (float deltaTime)
	Update all enabled systems in the scheduled order.

const std::vector< std::string > &	getExecutionOrder () const
	Get the computed execution order.

void	printExecutionOrder () const
	Print the execution order for debugging.

Private Member Functions
void	computeExecutionOrder ()

void	topologicalSort ()

Private Attributes
ECSWorld *	_world

std::unordered_map< std::string, SystemInfo >	_systemInfos

std::vector< std::string >	_executionOrder

bool	_needsReorder

Detailed Description

Advanced scheduler for controlling system execution order and dependencies.

Allows defining execution stages, priorities, and dependencies between systems. Useful for complex server-side game logic with specific ordering requirements.

Definition at line 27 of file SystemScheduler.hpp.

Constructor & Destructor Documentation

◆ SystemScheduler()

ecs::wrapper::SystemScheduler::SystemScheduler ( ECSWorld * world )

explicit

Construct a SystemScheduler.

Parameters

world Pointer to the ECS world

Definition at line 14 of file SystemScheduler.cpp.

Member Function Documentation

◆ computeExecutionOrder()

void ecs::wrapper::SystemScheduler::computeExecutionOrder ( )

private

Definition at line 76 of file SystemScheduler.cpp.

References _executionOrder, _needsReorder, _systemInfos, and topologicalSort().

Referenced by update().

Here is the call graph for this function:

◆ disable()

void ecs::wrapper::SystemScheduler::disable ( const std::string & name )

Disable a system.

Parameters

name	System name

Definition at line 61 of file SystemScheduler.cpp.

References _systemInfos.

◆ enable()

void ecs::wrapper::SystemScheduler::enable ( const std::string & name )

Enable a system.

Parameters

name	System name

Definition at line 54 of file SystemScheduler.cpp.

References _systemInfos.

◆ getExecutionOrder()

const std::vector< std::string > & ecs::wrapper::SystemScheduler::getExecutionOrder ( ) const

Get the computed execution order.

Returns: const std::vector<std::string>& Vector of system names in execution order

Definition at line 186 of file SystemScheduler.cpp.

References _executionOrder.

◆ isEnabled()

bool ecs::wrapper::SystemScheduler::isEnabled ( const std::string & name ) const

Check if a system is enabled.

Parameters

name	System name

Returns: bool true if enabled, false otherwise

Definition at line 68 of file SystemScheduler.cpp.

References _systemInfos.

◆ printExecutionOrder()

void ecs::wrapper::SystemScheduler::printExecutionOrder ( ) const

Print the execution order for debugging.

Definition at line 190 of file SystemScheduler.cpp.

References _executionOrder, and _systemInfos.

◆ registerSystem()

SystemScheduler & ecs::wrapper::SystemScheduler::registerSystem	(	const std::string &	name,
		int	priority = `0`
	)

Register a system with the scheduler.

Parameters

name	System name
priority	Execution priority (higher = earlier)

Returns: SystemScheduler& Reference for chaining

Definition at line 16 of file SystemScheduler.cpp.

References _needsReorder, _systemInfos, ecs::wrapper::SystemScheduler::SystemInfo::enabled, ecs::wrapper::SystemScheduler::SystemInfo::name, and ecs::wrapper::SystemScheduler::SystemInfo::priority.

◆ runAfter()

SystemScheduler & ecs::wrapper::SystemScheduler::runAfter	(	const std::string &	systemName,
		const std::string &	beforeSystemName
	)

Specify that a system must run after another.

Parameters

systemName	The system that runs second
beforeSystemName	The system that runs before

Returns: SystemScheduler& Reference for chaining

Definition at line 41 of file SystemScheduler.cpp.

References _needsReorder, _systemInfos, and LOG_ERROR.

◆ runBefore()

SystemScheduler & ecs::wrapper::SystemScheduler::runBefore	(	const std::string &	systemName,
		const std::string &	afterSystemName
	)

Specify that a system must run before another.

Parameters

systemName	The system that runs first
afterSystemName	The system that runs after

Returns: SystemScheduler& Reference for chaining

Definition at line 28 of file SystemScheduler.cpp.

References _needsReorder, _systemInfos, and LOG_ERROR.

◆ topologicalSort()

void ecs::wrapper::SystemScheduler::topologicalSort ( )

private

Definition at line 100 of file SystemScheduler.cpp.

References _executionOrder, _systemInfos, and LOG_WARNING.

Referenced by computeExecutionOrder().

◆ update()

void ecs::wrapper::SystemScheduler::update ( float deltaTime )

Update all enabled systems in the scheduled order.

Parameters

deltaTime Time elapsed since last update

Definition at line 173 of file SystemScheduler.cpp.

References _executionOrder, _needsReorder, _systemInfos, _world, computeExecutionOrder(), and ecs::wrapper::ECSWorld::updateSystem().

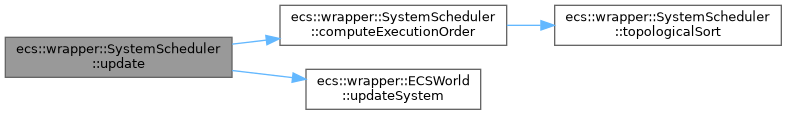

Here is the call graph for this function:

Member Data Documentation

◆ _executionOrder

std::vector<std::string> ecs::wrapper::SystemScheduler::_executionOrder

private

Definition at line 44 of file SystemScheduler.hpp.

Referenced by computeExecutionOrder(), getExecutionOrder(), printExecutionOrder(), topologicalSort(), and update().

◆ _needsReorder

bool ecs::wrapper::SystemScheduler::_needsReorder

private

Definition at line 45 of file SystemScheduler.hpp.

Referenced by computeExecutionOrder(), registerSystem(), runAfter(), runBefore(), and update().

◆ _systemInfos

std::unordered_map<std::string, SystemInfo> ecs::wrapper::SystemScheduler::_systemInfos

private

Definition at line 43 of file SystemScheduler.hpp.

Referenced by computeExecutionOrder(), disable(), enable(), isEnabled(), printExecutionOrder(), registerSystem(), runAfter(), runBefore(), topologicalSort(), and update().

◆ _world

ECSWorld* ecs::wrapper::SystemScheduler::_world

private

Definition at line 42 of file SystemScheduler.hpp.

Referenced by update().

The documentation for this class was generated from the following files:

common/ECSWrapper/SystemScheduler.hpp
common/ECSWrapper/SystemScheduler.cpp
