Component for entities that orbit around a parent entity (like drones in Isaac). More...

#include <OrbitalModule.hpp>

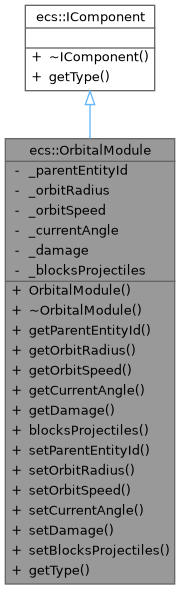

Inheritance diagram for ecs::OrbitalModule:

Collaboration diagram for ecs::OrbitalModule:

Public Member Functions
	OrbitalModule (uint32_t parentEntityId, float orbitRadius, float orbitSpeed, float startAngle=0.0f, int damage=10)
	Constructor with all orbital parameters.

	~OrbitalModule () override=default

uint32_t	getParentEntityId () const
	Get parent entity ID.

float	getOrbitRadius () const
	Get orbit radius.

float	getOrbitSpeed () const
	Get orbit speed.

float	getCurrentAngle () const
	Get current angle.

int	getDamage () const
	Get contact damage.

bool	blocksProjectiles () const
	Check if blocks projectiles.

void	setParentEntityId (uint32_t parentEntityId)
	Set parent entity ID.

void	setOrbitRadius (float orbitRadius)
	Set orbit radius.

void	setOrbitSpeed (float orbitSpeed)
	Set orbit speed.

void	setCurrentAngle (float angle)
	Set current angle.

void	setDamage (int damage)
	Set contact damage.

void	setBlocksProjectiles (bool blocks)
	Set projectile blocking status.

ComponentType	getType () const override
	Get the component type ID.

Public Member Functions inherited from ecs::IComponent
virtual	~IComponent ()=default
	Virtual destructor.

Private Attributes
uint32_t	_parentEntityId
	Entity to orbit around.

float	_orbitRadius
	Distance from parent (in pixels)

float	_orbitSpeed
	Angular velocity (rad/s)

float	_currentAngle
	Current orbital angle (radians)

int	_damage
	Damage dealt on contact.

bool	_blocksProjectiles
	Whether it blocks enemy projectiles.

Detailed Description

Component for entities that orbit around a parent entity (like drones in Isaac).

Defines orbital movement around a parent entity (typically a player). The module rotates at a fixed radius and speed, blocking projectiles and damaging enemies on contact.

Definition at line 22 of file OrbitalModule.hpp.

Constructor & Destructor Documentation

◆ OrbitalModule()

ecs::OrbitalModule::OrbitalModule	(	uint32_t	parentEntityId,
		float	orbitRadius,
		float	orbitSpeed,
		float	startAngle = `0.0f`,
		int	damage = `10`
	)

inline

Constructor with all orbital parameters.

Parameters

parentEntityId	ID of the entity to orbit around
orbitRadius	Distance from parent entity center
orbitSpeed	Angular velocity in radians per second
startAngle	Initial angle in radians (default: 0)
damage	Damage dealt on contact with enemies

Definition at line 32 of file OrbitalModule.hpp.

◆ ~OrbitalModule()

ecs::OrbitalModule::~OrbitalModule ( )

overridedefault

Member Function Documentation

◆ blocksProjectiles()

bool ecs::OrbitalModule::blocksProjectiles ( ) const

inline

Check if blocks projectiles.

Returns: bool True if blocks enemy projectiles.

Definition at line 77 of file OrbitalModule.hpp.

References _blocksProjectiles.

◆ getCurrentAngle()

float ecs::OrbitalModule::getCurrentAngle ( ) const

inline

Get current angle.

Returns: float Current angle in radians.

Definition at line 65 of file OrbitalModule.hpp.

References _currentAngle.

Referenced by ecs::OrbitalSystem::updateOrbitalPosition().

◆ getDamage()

int ecs::OrbitalModule::getDamage ( ) const

inline

Get contact damage.

Returns: int Damage dealt to enemies.

Definition at line 71 of file OrbitalModule.hpp.

References _damage.

◆ getOrbitRadius()

float ecs::OrbitalModule::getOrbitRadius ( ) const

inline

Get orbit radius.

Returns: float Distance from parent center.

Definition at line 53 of file OrbitalModule.hpp.

References _orbitRadius.

Referenced by ecs::OrbitalSystem::updateOrbitalPosition().

◆ getOrbitSpeed()

float ecs::OrbitalModule::getOrbitSpeed ( ) const

inline

Get orbit speed.

Returns: float Angular velocity in rad/s.

Definition at line 59 of file OrbitalModule.hpp.

References _orbitSpeed.

Referenced by ecs::OrbitalSystem::updateOrbitalPosition().

◆ getParentEntityId()

uint32_t ecs::OrbitalModule::getParentEntityId ( ) const

inline

Get parent entity ID.

Returns: uint32_t Entity ID to orbit around.

Definition at line 47 of file OrbitalModule.hpp.

References _parentEntityId.

Referenced by ecs::OrbitalSystem::updateOrbitalPosition().

◆ getType()

ComponentType ecs::OrbitalModule::getType ( ) const

inlineoverridevirtual

Get the component type ID.

Returns: ComponentType Unique ID for OrbitalModule component.

Implements ecs::IComponent.

Definition at line 119 of file OrbitalModule.hpp.

◆ setBlocksProjectiles()

void ecs::OrbitalModule::setBlocksProjectiles ( bool blocks )

inline

Set projectile blocking status.

Parameters

blocks True to block projectiles

Definition at line 113 of file OrbitalModule.hpp.

References _blocksProjectiles.

◆ setCurrentAngle()

void ecs::OrbitalModule::setCurrentAngle ( float angle )

inline

Set current angle.

Parameters

angle New angle in radians

Definition at line 101 of file OrbitalModule.hpp.

References _currentAngle.

Referenced by ecs::OrbitalSystem::updateOrbitalPosition().

◆ setDamage()

void ecs::OrbitalModule::setDamage ( int damage )

inline

Set contact damage.

Parameters

damage New damage value

Definition at line 107 of file OrbitalModule.hpp.

References _damage.

◆ setOrbitRadius()

void ecs::OrbitalModule::setOrbitRadius ( float orbitRadius )

inline

Set orbit radius.

Parameters

orbitRadius New orbit radius

Definition at line 89 of file OrbitalModule.hpp.

References _orbitRadius.

◆ setOrbitSpeed()

void ecs::OrbitalModule::setOrbitSpeed ( float orbitSpeed )

inline

Set orbit speed.

Parameters

orbitSpeed New angular velocity

Definition at line 95 of file OrbitalModule.hpp.

References _orbitSpeed.

◆ setParentEntityId()

void ecs::OrbitalModule::setParentEntityId ( uint32_t parentEntityId )

inline

Set parent entity ID.

Parameters

parentEntityId New parent entity ID

Definition at line 83 of file OrbitalModule.hpp.

References _parentEntityId.

Member Data Documentation

◆ _blocksProjectiles

bool ecs::OrbitalModule::_blocksProjectiles

private

Whether it blocks enemy projectiles.

Definition at line 127 of file OrbitalModule.hpp.

Referenced by blocksProjectiles(), and setBlocksProjectiles().

◆ _currentAngle

float ecs::OrbitalModule::_currentAngle

private

Current orbital angle (radians)

Definition at line 125 of file OrbitalModule.hpp.

Referenced by getCurrentAngle(), and setCurrentAngle().

◆ _damage

int ecs::OrbitalModule::_damage

private

Damage dealt on contact.

Definition at line 126 of file OrbitalModule.hpp.

Referenced by getDamage(), and setDamage().

◆ _orbitRadius

float ecs::OrbitalModule::_orbitRadius

private

Distance from parent (in pixels)

Definition at line 123 of file OrbitalModule.hpp.

Referenced by getOrbitRadius(), and setOrbitRadius().

◆ _orbitSpeed

float ecs::OrbitalModule::_orbitSpeed

private

Angular velocity (rad/s)

Definition at line 124 of file OrbitalModule.hpp.

Referenced by getOrbitSpeed(), and setOrbitSpeed().

◆ _parentEntityId

uint32_t ecs::OrbitalModule::_parentEntityId

private

Entity to orbit around.

Definition at line 122 of file OrbitalModule.hpp.

Referenced by getParentEntityId(), and setParentEntityId().

The documentation for this class was generated from the following file:

common/ECS/Components/OrbitalModule.hpp
