System managing weapon firing and cooldowns. More...

#include <WeaponSystem.hpp>

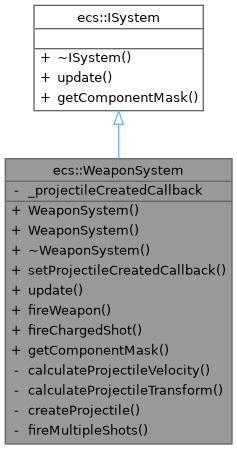

Inheritance diagram for ecs::WeaponSystem:

Collaboration diagram for ecs::WeaponSystem:

Public Types
using	ProjectileCreatedCallback = std::function< void(uint32_t, uint32_t, float, float, float, float, float, int, bool)>
	Callback for projectile creation events Parameters: projectileId, ownerId, posX, posY, dirX, dirY, speed, damage, friendly.

Public Member Functions
	WeaponSystem ()=default
	Default constructor.

	WeaponSystem (ProjectileCreatedCallback callback)
	Constructor with callback for projectile creation events.

	~WeaponSystem () override=default
	Default destructor.

void	setProjectileCreatedCallback (ProjectileCreatedCallback callback)
	Set the callback for projectile creation events.

void	update (Registry &registry, float deltaTime) override
	Manages weapon cooldowns for all entities.

std::uint32_t	fireWeapon (Registry &registry, std::uint32_t ownerId, bool isFriendly)
	Fire a weapon from an entity, spawning a projectile.

std::uint32_t	fireChargedShot (Registry &registry, std::uint32_t ownerId, float chargeLevel, bool isFriendly)
	Fire a charged shot if charge is sufficient, otherwise fire normal shot.

ComponentMask	getComponentMask () const override
	Gets the component mask for this system.

Public Member Functions inherited from ecs::ISystem
virtual	~ISystem ()=default
	Virtual destructor.

Private Member Functions
Velocity	calculateProjectileVelocity (float baseSpeed, bool isFriendly)
	Calculate projectile initial velocity based on owner's velocity.

Transform	calculateProjectileTransform (Registry &registry, std::uint32_t ownerId, bool isFriendly)
	Calculate projectile spawn position based on owner position.

std::uint32_t	createProjectile (Registry &registry, std::uint32_t ownerId, const Transform &transform, const Velocity &velocity, float damage, bool isFriendly, bool isCharged)
	Create a single projectile with specified properties.

void	fireMultipleShots (Registry &registry, std::uint32_t ownerId, float damage, float speed, bool isFriendly, bool isCharged, int shotCount)
	Fire multiple projectiles based on multishot buff.

Private Attributes
ProjectileCreatedCallback	_projectileCreatedCallback

Detailed Description

System managing weapon firing and cooldowns.

Handles weapon cooldown timers, projectile spawning, and weapon mechanics. Requires Weapon and Transform components. Optionally uses Velocity for weapon direction.

Definition at line 29 of file WeaponSystem.hpp.

Member Typedef Documentation

◆ ProjectileCreatedCallback

using ecs::WeaponSystem::ProjectileCreatedCallback = std::function<void(uint32_t, uint32_t, float, float, float, float, float, int, bool)>

Callback for projectile creation events Parameters: projectileId, ownerId, posX, posY, dirX, dirY, speed, damage, friendly.

Definition at line 35 of file WeaponSystem.hpp.

Constructor & Destructor Documentation

◆ WeaponSystem() [1/2]

ecs::WeaponSystem::WeaponSystem ( )

default

Default constructor.

◆ WeaponSystem() [2/2]

ecs::WeaponSystem::WeaponSystem ( ProjectileCreatedCallback callback )

inlineexplicit

Constructor with callback for projectile creation events.

Parameters

callback Function to call when a projectile is created

Definition at line 48 of file WeaponSystem.hpp.

◆ ~WeaponSystem()

ecs::WeaponSystem::~WeaponSystem ( )

overridedefault

Default destructor.

Member Function Documentation

◆ calculateProjectileTransform()

Transform ecs::WeaponSystem::calculateProjectileTransform	(	Registry &	registry,
		std::uint32_t	ownerId,
		bool	isFriendly
	)

private

Calculate projectile spawn position based on owner position.

Parameters

registry	Reference to the ECS registry
ownerId	Entity ID of the weapon owner
isFriendly	Whether this is a friendly projectile (affects spawn offset)

Returns: Transform component for the projectile initial position

Definition at line 133 of file WeaponSystem.cpp.

References ecs::Registry::getComponent(), ecs::Transform::getPosition(), and ecs::Registry::hasComponent().

Referenced by fireChargedShot(), fireMultipleShots(), and fireWeapon().

Here is the call graph for this function:

◆ calculateProjectileVelocity()

Velocity ecs::WeaponSystem::calculateProjectileVelocity	(	float	baseSpeed,
		bool	isFriendly
	)

private

Calculate projectile initial velocity based on owner's velocity.

Parameters

baseSpeed	Base projectile speed from weapon
isFriendly	Whether this is a friendly projectile (affects direction)

Returns: Velocity component for the projectile

Definition at line 127 of file WeaponSystem.cpp.

Referenced by fireChargedShot(), and fireWeapon().

◆ createProjectile()

std::uint32_t ecs::WeaponSystem::createProjectile	(	Registry &	registry,
		std::uint32_t	ownerId,
		const Transform &	transform,
		const Velocity &	velocity,
		float	damage,
		bool	isFriendly,
		bool	isCharged
	)

private

Create a single projectile with specified properties.

Parameters

registry	Reference to the ECS registry
ownerId	Entity ID of the weapon owner
transform	Projectile spawn position
velocity	Projectile velocity
damage	Projectile damage
isFriendly	Whether this is a friendly projectile
isCharged	Whether this is a charged shot (affects visuals)

Returns: Address ID of the spawned projectile entity

Definition at line 210 of file WeaponSystem.cpp.

References _projectileCreatedCallback, AnimDB::createPlayerBulletAnimations(), ecs::Registry::getComponent(), ecs::Velocity::getDirection(), ecs::Weapon::getFireRate(), ecs::Transform::getPosition(), ecs::Velocity::getSpeed(), ecs::Registry::hasComponent(), ecs::Registry::newEntity(), and ecs::Registry::setComponent().

Referenced by fireChargedShot(), fireMultipleShots(), and fireWeapon().

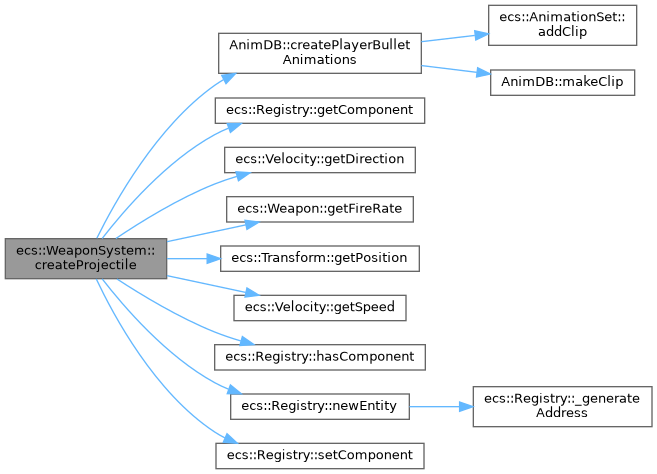

Here is the call graph for this function:

◆ fireChargedShot()

std::uint32_t ecs::WeaponSystem::fireChargedShot	(	Registry &	registry,
		std::uint32_t	ownerId,
		float	chargeLevel,
		bool	isFriendly
	)

Fire a charged shot if charge is sufficient, otherwise fire normal shot.

If the provided charge level meets the minimum threshold (0.5f or 50%), fires a charged projectile with increased damage and speed. Otherwise, fires a normal projectile.

Parameters

registry	Reference to the ECS registry
ownerId	Entity ID of the weapon owner
chargeLevel	Current charge level (0.0f to 1.0f)
isFriendly	Whether this is a friendly projectile

Returns: Address ID of the spawned projectile entity

Definition at line 150 of file WeaponSystem.cpp.

References calculateProjectileTransform(), calculateProjectileVelocity(), createProjectile(), ecs::DoubleShot, fireMultipleShots(), fireWeapon(), ecs::Registry::getComponent(), ecs::Weapon::getDamage(), ecs::Buff::hasBuff(), ecs::Registry::hasComponent(), ecs::MultiShot, and ecs::TripleShot.

Referenced by update().

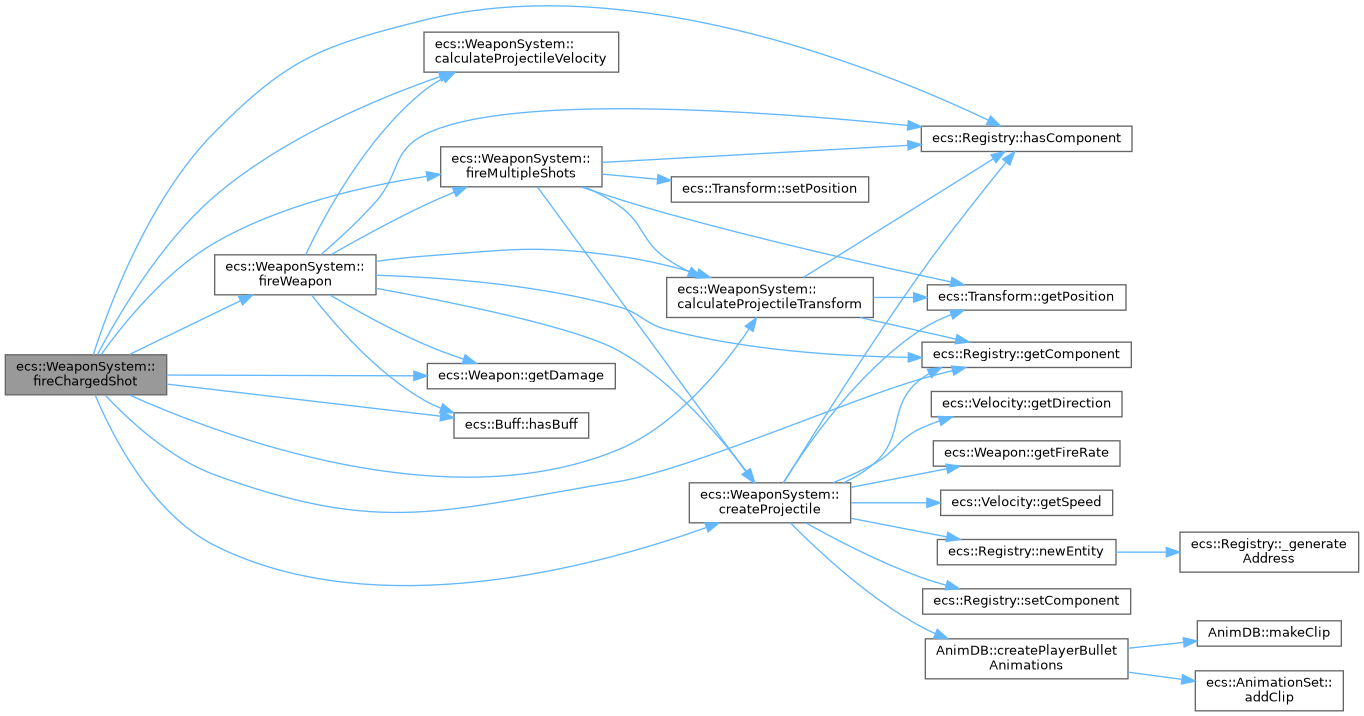

Here is the call graph for this function:

◆ fireMultipleShots()

void ecs::WeaponSystem::fireMultipleShots	(	Registry &	registry,
		std::uint32_t	ownerId,
		float	damage,
		float	speed,
		bool	isFriendly,
		bool	isCharged,
		int	shotCount
	)

private

Fire multiple projectiles based on multishot buff.

Parameters

registry	Reference to the ECS registry
ownerId	Entity ID of the weapon owner
damage	Projectile damage
speed	Projectile speed
isFriendly	Whether projectiles are friendly
isCharged	Whether this is a charged shot
shotCount	Number of projectiles to fire

Definition at line 258 of file WeaponSystem.cpp.

References calculateProjectileTransform(), createProjectile(), ecs::Transform::getPosition(), ecs::Registry::hasComponent(), and ecs::Transform::setPosition().

Referenced by fireChargedShot(), and fireWeapon().

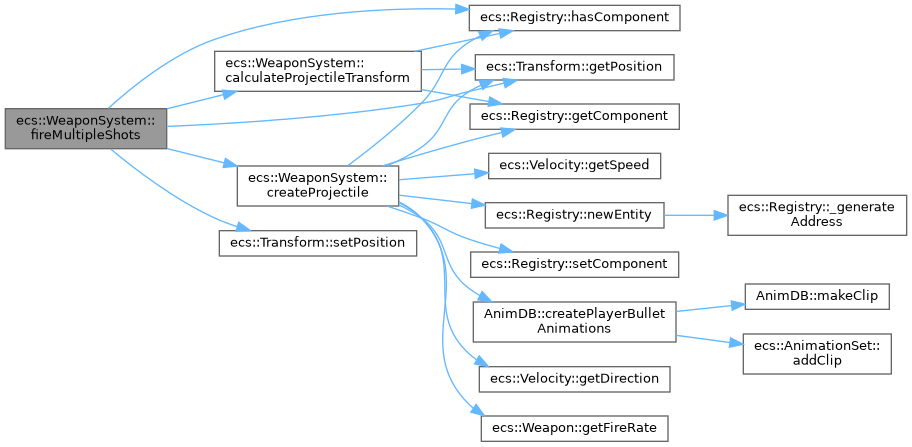

Here is the call graph for this function:

◆ fireWeapon()

std::uint32_t ecs::WeaponSystem::fireWeapon	(	Registry &	registry,
		std::uint32_t	ownerId,
		bool	isFriendly
	)

Fire a weapon from an entity, spawning a projectile.

Creates a new projectile entity with appropriate components. Resets the weapon cooldown timer based on fire rate.

Parameters

registry	Reference to the ECS registry
ownerId	Entity ID of the weapon owner
isFriendly	Whether this is a friendly projectile

Returns: Address ID of the spawned projectile entity

Definition at line 85 of file WeaponSystem.cpp.

References calculateProjectileTransform(), calculateProjectileVelocity(), createProjectile(), ecs::DoubleShot, fireMultipleShots(), ecs::Registry::getComponent(), ecs::Weapon::getDamage(), ecs::Buff::hasBuff(), ecs::Registry::hasComponent(), ecs::MultiShot, and ecs::TripleShot.

Referenced by fireChargedShot(), and update().

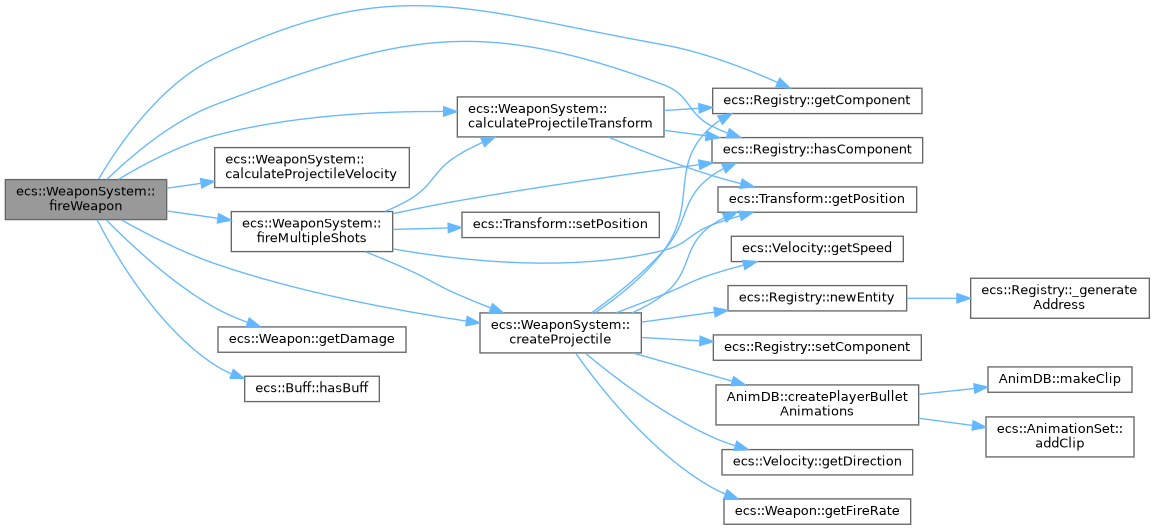

Here is the call graph for this function:

◆ getComponentMask()

ComponentMask ecs::WeaponSystem::getComponentMask ( ) const

overridevirtual

Gets the component mask for this system.

Returns: ComponentMask requiring Weapon and Transform components

Implements ecs::ISystem.

Definition at line 206 of file WeaponSystem.cpp.

Referenced by update().

◆ setProjectileCreatedCallback()

void ecs::WeaponSystem::setProjectileCreatedCallback ( ProjectileCreatedCallback callback )

inline

Set the callback for projectile creation events.

Parameters

callback Function to call when a projectile is created

Definition at line 60 of file WeaponSystem.hpp.

References _projectileCreatedCallback.

◆ update()

void ecs::WeaponSystem::update	(	Registry &	registry,
		float	deltaTime
	)

overridevirtual

Manages weapon cooldowns for all entities.

Updates weapon cooldowns for all entities with weapons.

Decrements weapon cooldown timers each frame. When cooldown reaches 0, the weapon is ready to fire. Actual projectile creation is handled by input or AI systems.

Parameters

registry	Reference to the ECS registry
deltaTime	Time elapsed since last frame (in seconds)

Implements ecs::ISystem.

Definition at line 24 of file WeaponSystem.cpp.

References fireChargedShot(), fireWeapon(), ecs::Registry::getComponent(), getComponentMask(), ecs::Registry::getEntitiesWithMask(), ecs::Registry::hasComponent(), and ecs::Weapon::setCooldown().

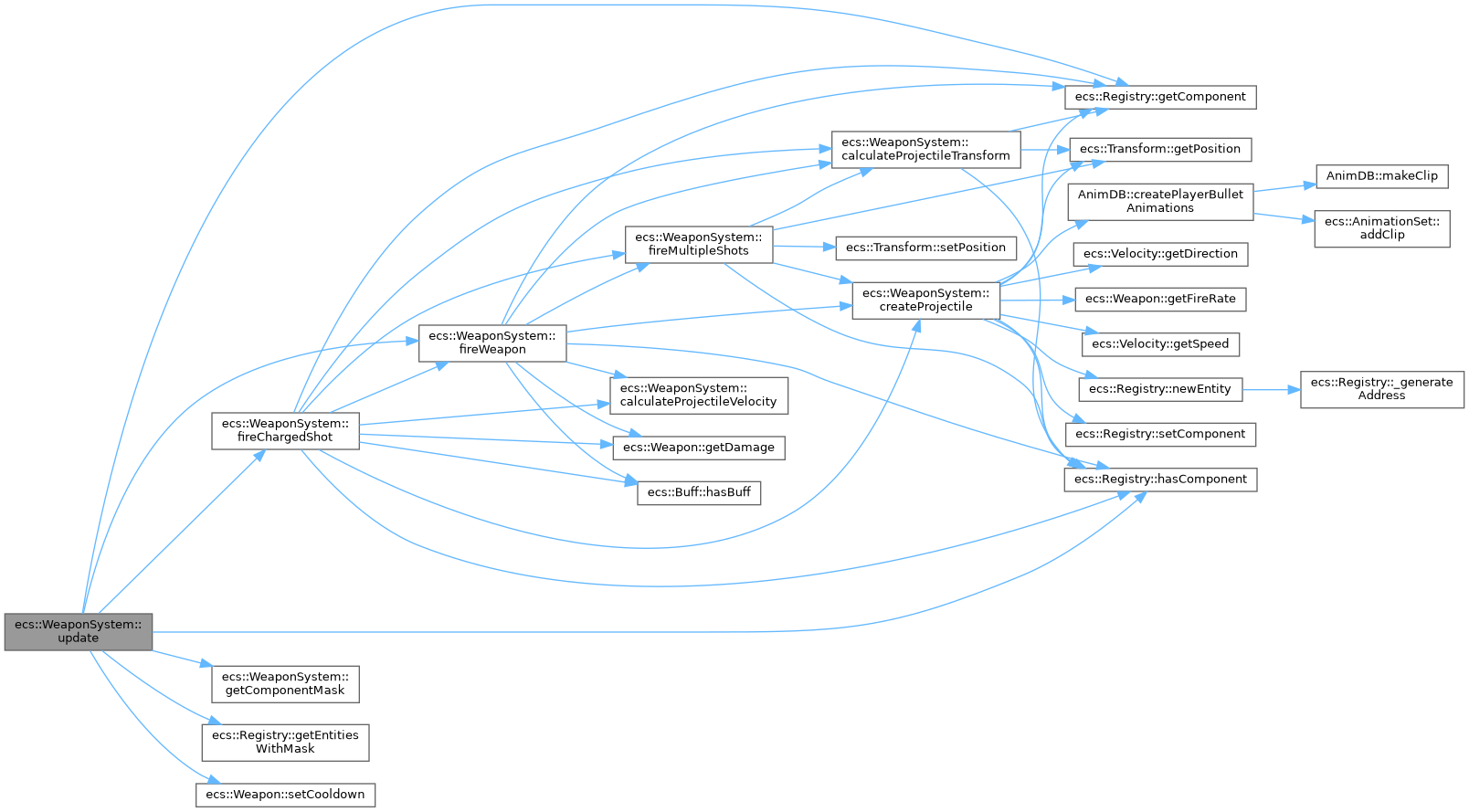

Here is the call graph for this function:

Member Data Documentation

◆ _projectileCreatedCallback

ProjectileCreatedCallback ecs::WeaponSystem::_projectileCreatedCallback

private

Definition at line 162 of file WeaponSystem.hpp.

Referenced by createProjectile(), and setProjectileCreatedCallback().

The documentation for this class was generated from the following files:

common/ECS/Systems/WeaponSystem/WeaponSystem.hpp
common/ECS/Systems/WeaponSystem/WeaponSystem.cpp
