Abstract interface for UI sliders. More...

#include <ISlider.hpp>

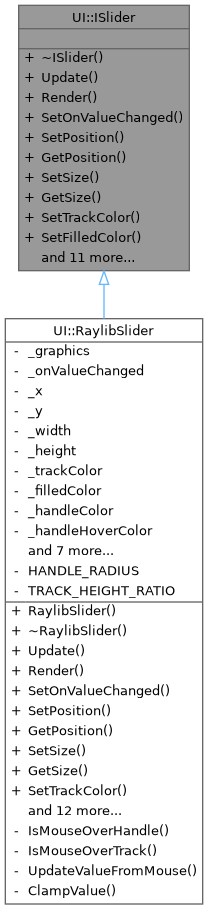

Inheritance diagram for UI::ISlider:

Collaboration diagram for UI::ISlider:

Public Member Functions
virtual	~ISlider ()=default
	Virtual destructor.

virtual void	Update ()=0
	Update the slider internal state (hover, drag).

virtual void	Render ()=0
	Render the slider.

virtual void	SetOnValueChanged (std::function< void(float)> callback)=0
	Set callback invoked when value changes.

virtual void	SetPosition (float x, float y)=0
	Set the top-left position of the slider.

virtual void	GetPosition (float &x, float &y) const =0
	Get the current top-left position of the slider.

virtual void	SetSize (float width, float height)=0
	Set the slider size.

virtual void	GetSize (float &width, float &height) const =0
	Get the current size of the slider.

virtual void	SetTrackColor (unsigned int color)=0
	Set the track color (unfilled portion).

virtual void	SetFilledColor (unsigned int color)=0
	Set the filled track color (portion before handle).

virtual void	SetHandleColor (unsigned int color)=0
	Set the handle color.

virtual void	SetHandleHoverColor (unsigned int color)=0
	Set the handle hover color.

virtual void	SetMinValue (float minValue)=0
	Set the minimum value.

virtual void	SetMaxValue (float maxValue)=0
	Set the maximum value.

virtual void	SetValue (float value)=0
	Set the current value.

virtual float	GetValue () const =0
	Get the current value.

virtual void	SetAlign (Align align)=0
	Set alignment mode relative to the window.

virtual Align	GetAlign () const =0
	Get the current alignment mode.

virtual void	ApplyAlignment ()=0
	Apply the current alignment mode to the position.

virtual void	SetEnabled (bool enabled)=0
	Enable or disable the slider.

virtual bool	IsEnabled () const =0
	Check if the slider is enabled.

Detailed Description

Abstract interface for UI sliders.

This interface defines a slider control with the following features:

Draggable handle to select a value within a range
Visual feedback (track, filled portion, handle)
Mouse interaction (click on track, drag handle)
Configurable range (min, max)
Configurable appearance (colors, sizes)
Optional callback on value change

Definition at line 30 of file ISlider.hpp.

Constructor & Destructor Documentation

◆ ~ISlider()

virtual UI::ISlider::~ISlider ( )

virtualdefault

Virtual destructor.

Member Function Documentation

◆ ApplyAlignment()

virtual void UI::ISlider::ApplyAlignment ( )

pure virtual

Apply the current alignment mode to the position.

Note: This modifies the position based on the align setting.

Implemented in UI::RaylibSlider.

◆ GetAlign()

virtual Align UI::ISlider::GetAlign ( ) const

pure virtual

Get the current alignment mode.

Returns: Alignment mode.

Implemented in UI::RaylibSlider.

◆ GetPosition()

virtual void UI::ISlider::GetPosition	(	float &	x,
		float &	y
	)		const

pure virtual

Get the current top-left position of the slider.

Parameters

x	Output X position in pixels.
y	Output Y position in pixels.

Implemented in UI::RaylibSlider.

◆ GetSize()

virtual void UI::ISlider::GetSize	(	float &	width,
		float &	height
	)		const

pure virtual

Get the current size of the slider.

Parameters

width	Output width in pixels.
height	Output height in pixels.

Implemented in UI::RaylibSlider.

◆ GetValue()

virtual float UI::ISlider::GetValue ( ) const

pure virtual

Get the current value.

Returns: Current value.

Implemented in UI::RaylibSlider.

◆ IsEnabled()

virtual bool UI::ISlider::IsEnabled ( ) const

pure virtual

Check if the slider is enabled.

Returns: true if enabled.

Implemented in UI::RaylibSlider.

◆ Render()

virtual void UI::ISlider::Render ( )

pure virtual

Render the slider.

Note: Must be called between the backend BeginDrawing/EndDrawing calls.

Implemented in UI::RaylibSlider.

◆ SetAlign()

virtual void UI::ISlider::SetAlign ( Align align )

pure virtual

Set alignment mode relative to the window.

Parameters

align Alignment mode.

Implemented in UI::RaylibSlider.

◆ SetEnabled()

virtual void UI::ISlider::SetEnabled ( bool enabled )

pure virtual

Enable or disable the slider.

Parameters

enabled true to enable, false to disable.

Implemented in UI::RaylibSlider.

◆ SetFilledColor()

virtual void UI::ISlider::SetFilledColor ( unsigned int color )

pure virtual

Set the filled track color (portion before handle).

Parameters

color Color in ARGB format (0xAARRGGBB).

Implemented in UI::RaylibSlider.

◆ SetHandleColor()

virtual void UI::ISlider::SetHandleColor ( unsigned int color )

pure virtual

Set the handle color.

Parameters

color Color in ARGB format (0xAARRGGBB).

Implemented in UI::RaylibSlider.

◆ SetHandleHoverColor()

virtual void UI::ISlider::SetHandleHoverColor ( unsigned int color )

pure virtual

Set the handle hover color.

Parameters

color Color in ARGB format (0xAARRGGBB).

Implemented in UI::RaylibSlider.

◆ SetMaxValue()

virtual void UI::ISlider::SetMaxValue ( float maxValue )

pure virtual

Set the maximum value.

Parameters

maxValue Maximum value.

Implemented in UI::RaylibSlider.

◆ SetMinValue()

virtual void UI::ISlider::SetMinValue ( float minValue )

pure virtual

Set the minimum value.

Parameters

minValue Minimum value.

Implemented in UI::RaylibSlider.

◆ SetOnValueChanged()

virtual void UI::ISlider::SetOnValueChanged ( std::function< void(float)> callback )

pure virtual

Set callback invoked when value changes.

Parameters

callback Function called when the slider value changes.

Implemented in UI::RaylibSlider.

◆ SetPosition()

virtual void UI::ISlider::SetPosition	(	float	x,
		float	y
	)

pure virtual

Set the top-left position of the slider.

Parameters

x	X position in pixels.
y	Y position in pixels.

Implemented in UI::RaylibSlider.

◆ SetSize()

virtual void UI::ISlider::SetSize	(	float	width,
		float	height
	)

pure virtual

Set the slider size.

Parameters

width	Width in pixels (track length).
height	Height in pixels (track thickness).

Implemented in UI::RaylibSlider.

◆ SetTrackColor()

virtual void UI::ISlider::SetTrackColor ( unsigned int color )

pure virtual

Set the track color (unfilled portion).

Parameters

color Color in ARGB format (0xAARRGGBB).

Implemented in UI::RaylibSlider.

◆ SetValue()

virtual void UI::ISlider::SetValue ( float value )

pure virtual

Set the current value.

Parameters

value Current value (will be clamped to [min, max]).

Implemented in UI::RaylibSlider.

◆ Update()

virtual void UI::ISlider::Update ( )

pure virtual

Update the slider internal state (hover, drag).

Note: Should be called once per frame.

Implemented in UI::RaylibSlider.

The documentation for this class was generated from the following file:

client/UI/ISlider.hpp
